2 General Power Meter Functions
92 N1911A/1912A P-Series Power Meters User’s Guide
• Press , to select the measurement window or
measurement line you want to configure.

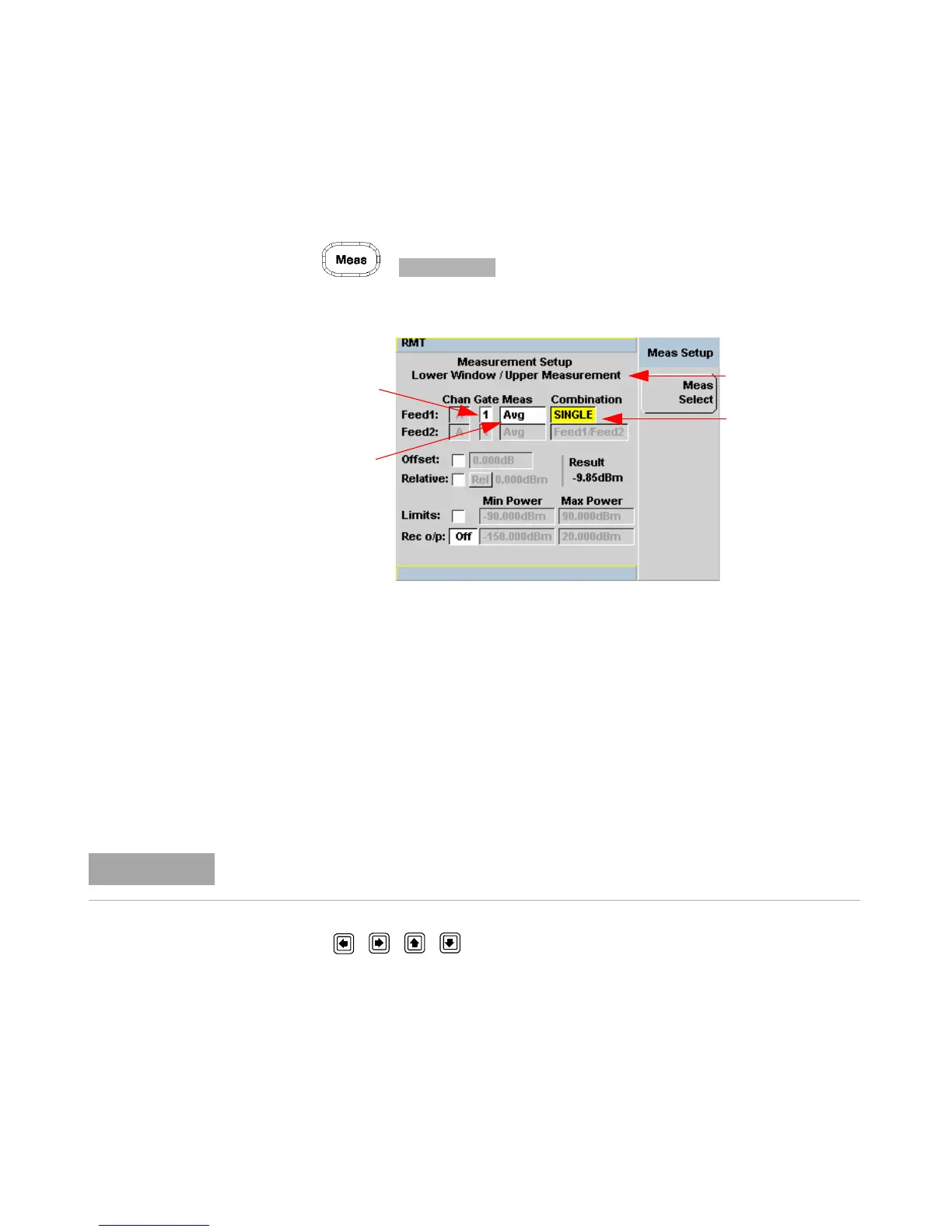

Figure 2-69 Measurement Setup showing single configuration
Single Function Measurement
Figure 2- 69 shows Gate 1 with an average measurement assigned in the
upper measurement line of the lower window. (For single channel power
meter (N1911A), the Channel field will be disabled, as shown in
Figure 2- 69).
1 Use the , , , , to highlight the Combination function field.
Meas Select
Selected Window/
Function Field
Gate Field
Measurement Field
Measurement
NOTE
The gate field is disabled if trigger acquisition is Free Run.
