7 Press to configure the remaining trigger parameters. The trigger

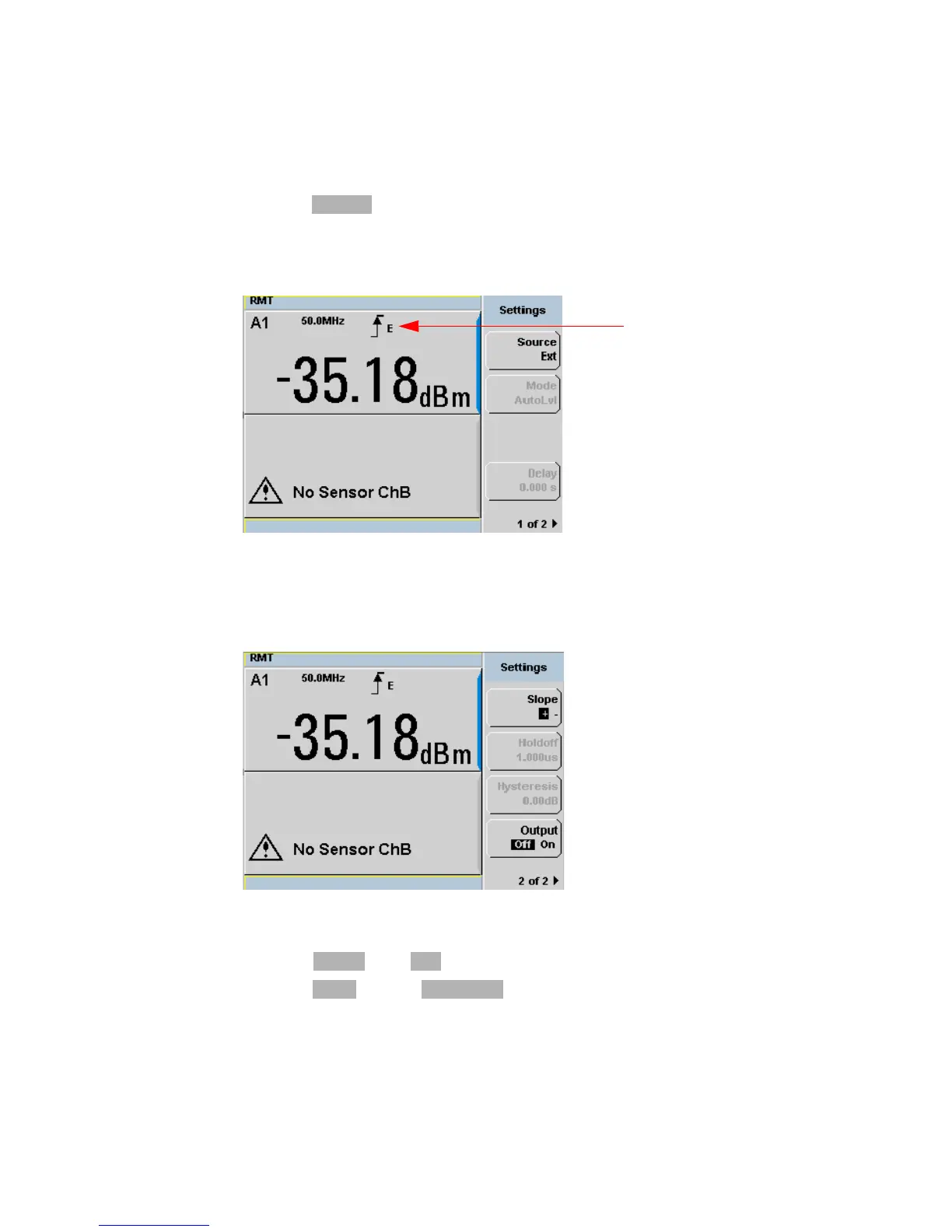

Settings menu consists of two pages. Figure 2- 61 shows page 1 and
Figure 2- 62 shows page 2.
Figure 2-61 Trigger setting menu 1 of 2
Figure 2-62 Trigger setting menu 2 of 2
8 Press and will be automatically enabled.
9 Press , select to allow a TTL level high to be produced
at the rear panel TRIG OUT BNC port upon the meter completed a
measurement. Refer to note on page 87 for details.
Settings
External Trigger Source
Source
Ext
1 of 2
Output On
