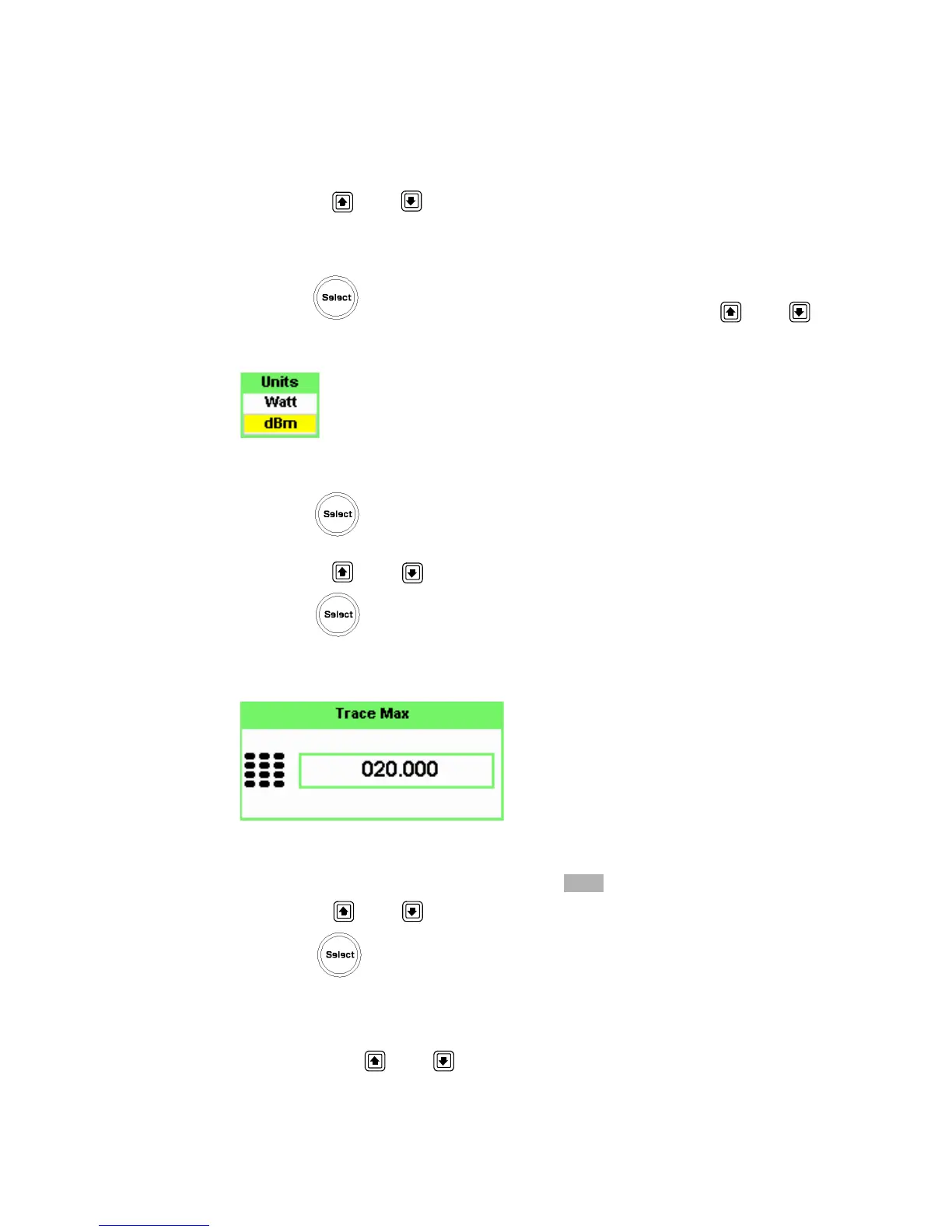

2 General Power Meter Functions
64 N1911A/1912A P-Series Power Meters User’s Guide
8 Use the and keys to highlight the Units field.
If you want to view the trace in linear scale, use this field. Otherwise
the default scale is in logarithmic.
9 Press to display the Units pop- up, and use the and to
highlight
Watt or dBm.
Figure 2-48 Trace Units pop-up
10 Press to complete the entry.
11 Use the and keys to highlight the Y Max field.
12 Press to display the Trace Maximum pop- up, and use the numeric
keypad to enter the required value in the Trace Maximum pop- up
window.
Figure 2-49 Y scale maximum value pop-up
13 Complete the entry by pressing the or the linear value.
14 Use the and keys to highlight the Y Scale field.
15 Press to display the Y Scale/Division pop- up.
a. Use the numeric keypad to enter the required value in the Y
Scale/Division pop- up window.
b. Use the and keys to increase or decrease the value.
To Next Page
