General Power Meter Functions 2
N1911A/1912A P-Series Power Meters User’s Guide 91

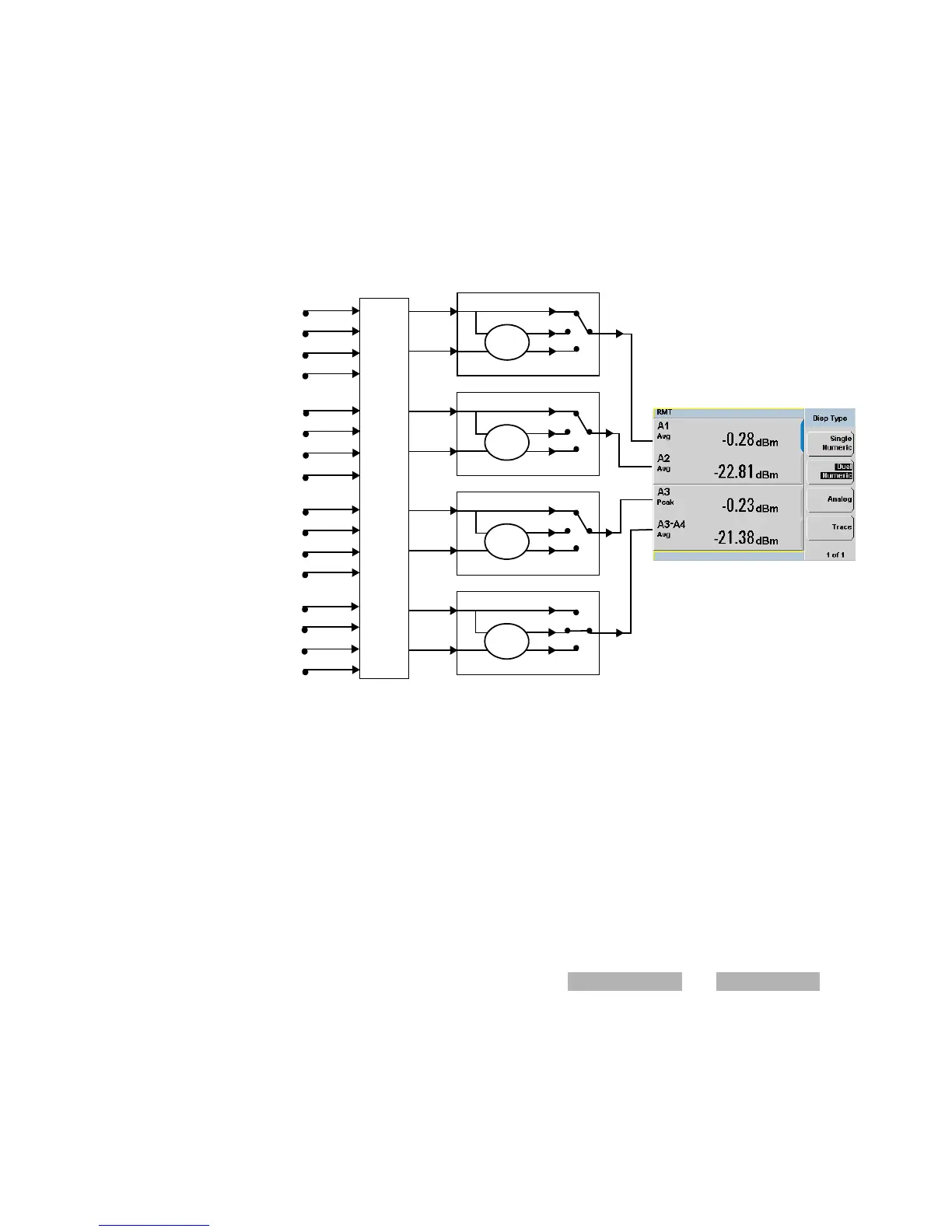

Figure 2-68 Measurement feed example
Each displayed line has a measurement feed. Each measurement feed has
two independent inputs, Feed 1 and Feed 2. The two Feeds, 1 and 2, can
carry any of the 16 measurement results from the 4 gates. (32
measurements from 8 gates in the dual channel N1912A). Only Feed 1 can
be displayed in Single Mode. In Combined Mode, Feed 1 - Feed 2 or Feed
1 / Feed 2 can be displayed.
Numeric Format
Configure a measurement displayed in or
format as follows:
Peak
Average
Pk-to-Avg
Gate 1
Peak
Average
Pk-to-Avg
Feed 1
Feed 2
Feed 1
Feed 2
Feed 1
Feed 2
Feed 1
Feed 2
Single
Combined
Gate 2
Gate 3
Gate 4
Measurement Feeds
(single or combined)
16/32 Measurement Highway
Feed 1-Feed 2
Feed 1/Feed 2
Single
Combined
Feed 1-Feed 2
Feed 1/Feed 2
Single
Combined
Feed 1-Feed 2
Feed 1/Feed 2
Single
Combined
Feed 1-Feed 2
Feed 1/Feed 2
Min
Min
Min
Min
Peak
Average
Pk-to-Avg
Peak
Average
Pk-to-Avg
Single Numeric
Dual Numeric
