Agilent Technologies N1911A - Figure 2-75 Maximum Limit Pop-Up; Figure 2-76 Minimum Limit Pop-Up; Scaling the Analog Display

General Power Meter Functions 2
N1911A/1912A P-Series Power Meters User’s Guide 97

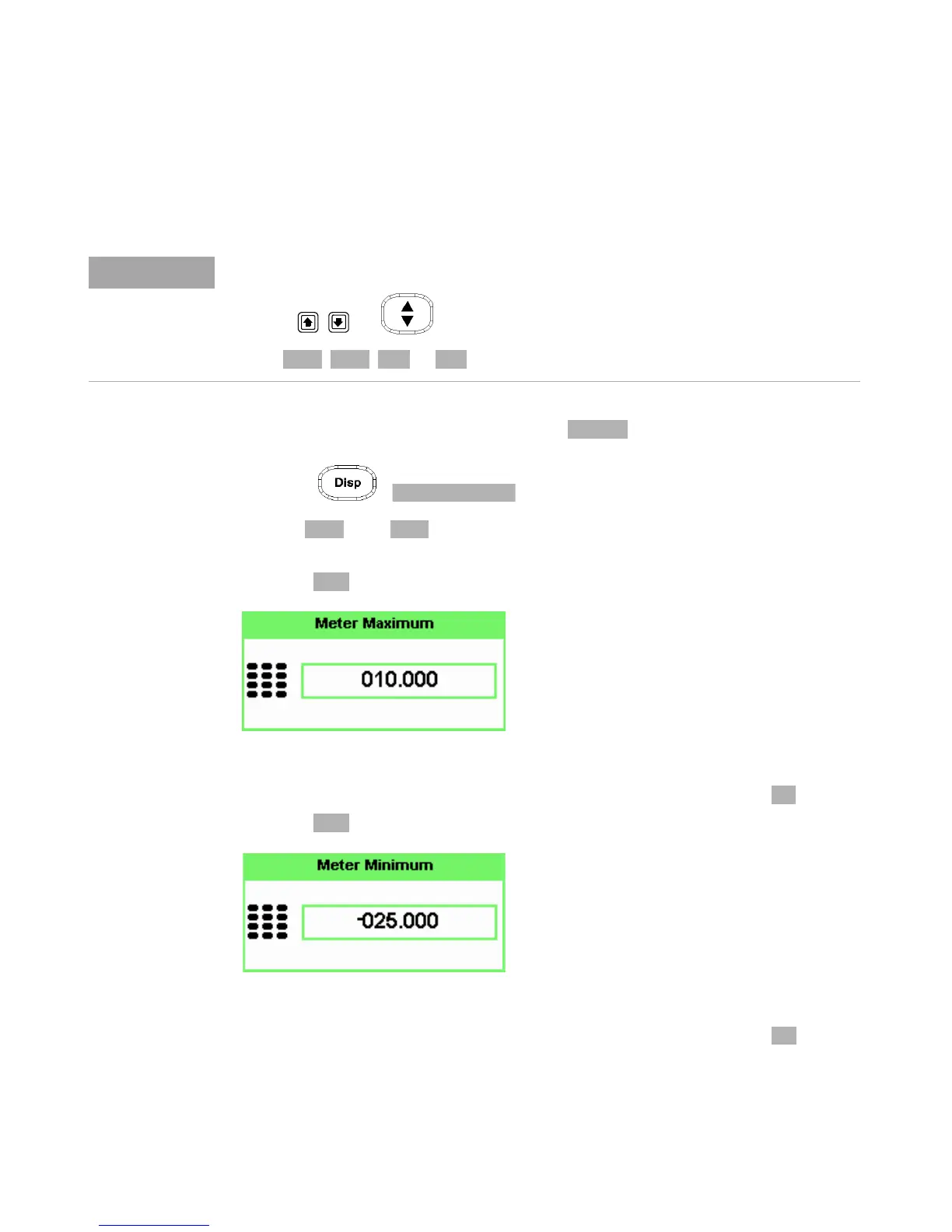

Scaling the Analog Display
Configure a measurement displayed in format as follows:
1 Press , to display the Analog Scaling softkeys.
The and scale values are shown on the analog display and
adjacent to the softkey labels.
2 Press to display the Meter Maximum pop- up.
Figure 2-75 Maximum limit pop-up
3 Use the numeric keys to enter the required value and press .
4 Press to display the Meter Minimum pop- up.
Figure 2-76 Minimum limit pop-up
5 Use the numeric keys to enter the required value and press .
NOTE
Ensure you have highlighted an Analog window.
Use the , , or keys to select the analog measurement window.
Press , , , or , to complete the entry.
dBm
mW
uW
nW
Analog
Anlg Mtr Scaling
Max
Min
Max
dB
Min
dB
