General Power Meter Functions 2
N1911A/1912A P-Series Power Meters User’s Guide 67
Procedure
1 Press softkey to configure a trigger.
2 Select either or .
• is a single shot mode. After triggering, the measurement is
halted, the symbol is displayed. You can start another
measurement by pressing the key.
• is a continuos trigger mode. The symbol or is
displayed.
3 Press to configure the remaining trigger parameters. The
trigger Settings menu have two pages. Figure 2- 52 shows page one and
Figure 2- 55 shows page two.

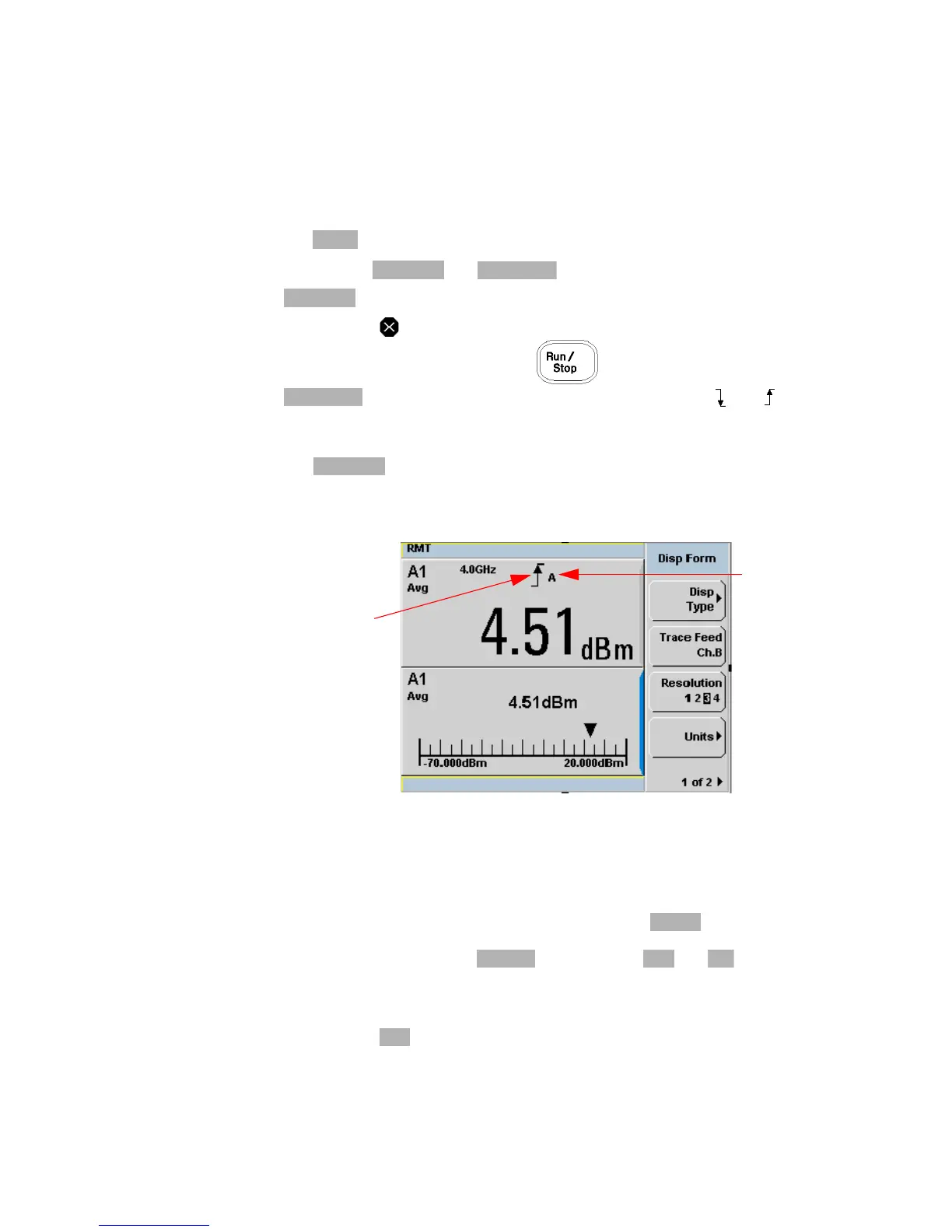

Figure 2-52 Trigger Setting Menu 1 of 2
To help you quickly check the triggering setup, the current settings for all
the trigger parameters are shown with their respective softkey labels.
Source The current setting is shown below the label.
To change the setting press and choose or .
The trigger source is shown beside the trigger symbol when a
measurement window is configured in single numeric mode. When an
external trigger ( ) is selected, the power meter can be triggered via the
Ext Trig input.
Channel A is
Trigger Source
Rising Edge Source
To Next Page
