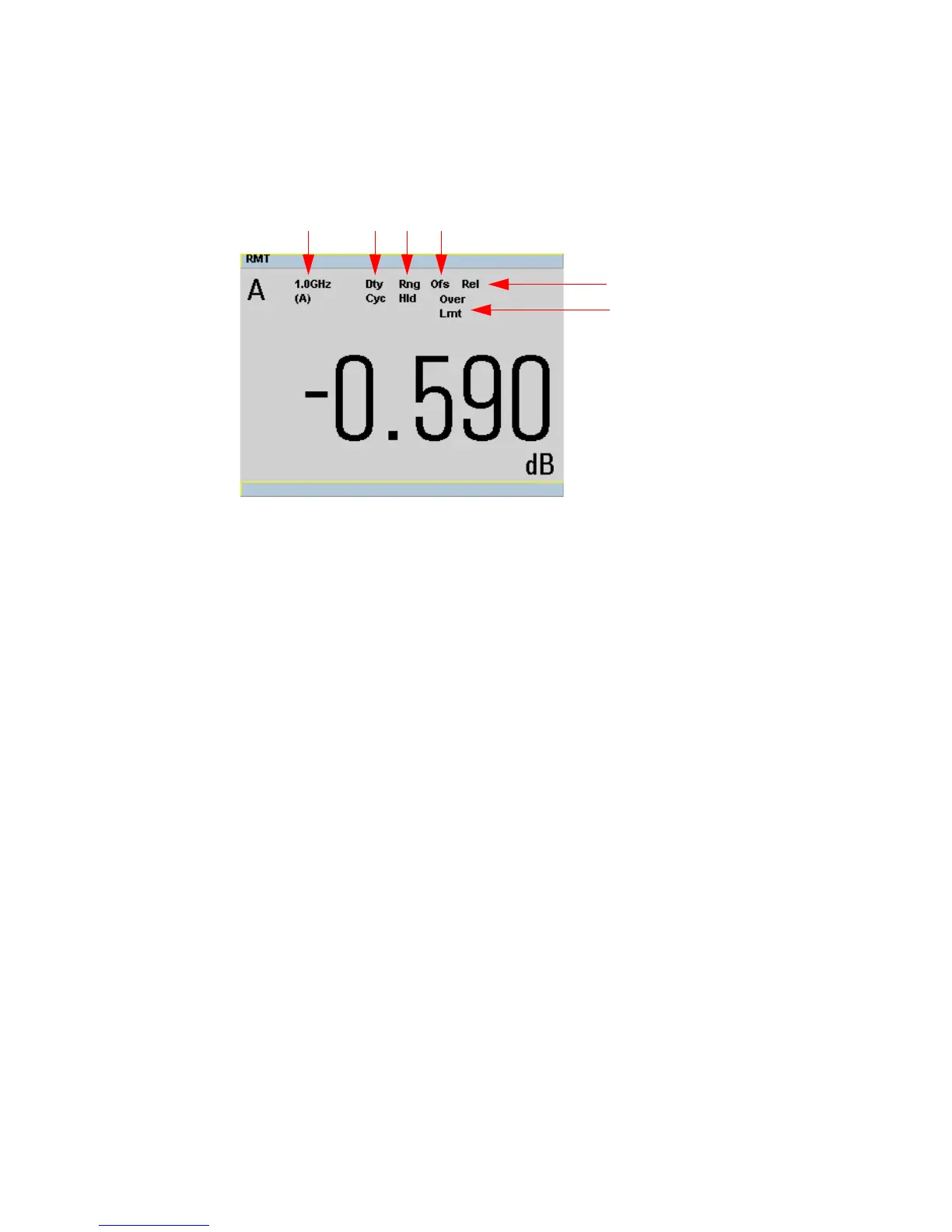

Figure 1-3 Full screen numeric display
16 Figure 1- 3 shows a single numeric full screen displaying a relative
result.
This field displays Rel if relative mode is on.
17 This field indicates the measurement result is beyond the configured
upper or lower limit. If the measurement is within the limits this field
is empty. If the measurement result is less than the minimum limit set,
Undr Lmt is displayed. If the measurement result is more than the
maximum limit set, Over Lmt is displayed.
18 This field displays Ofs if an offset is set.
19 This field displays Rng Hld if a range is selected.
20 This field displays Dty Cyc if a duty cycle is set.
21 The information in this field is displayed on two lines and depends on
the sensor type, sensor calibration table, frequency dependent offset
table currently selected, and the measurement frequency.
