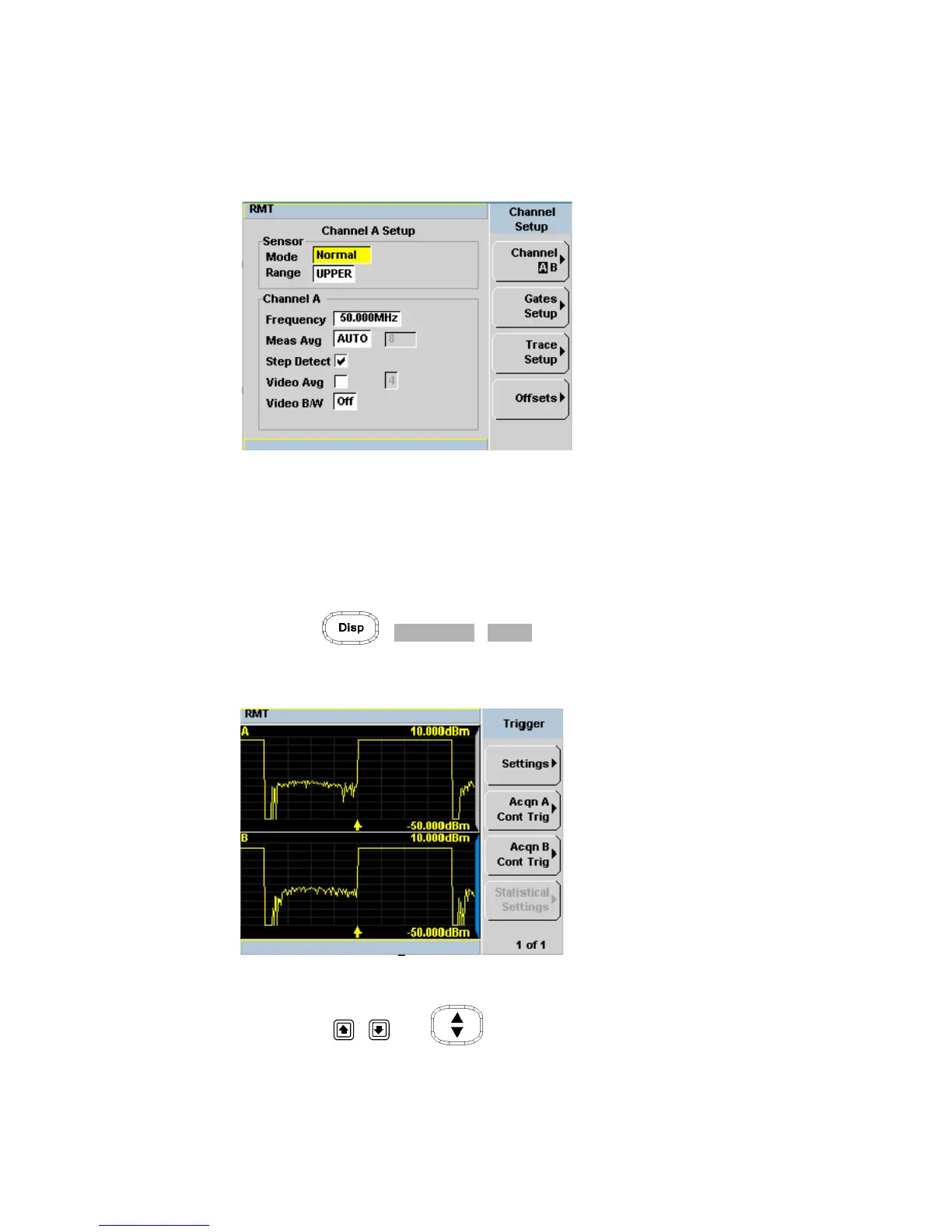

Figure 4-104 E-Series E9320 power sensor channel setup when trigger is selected
Step 4. Setting the Display to Trace
Using trace display provides a visual representation of the signal of
interest.
• Press , , to display the Trace the highlighted
window.
Figure 4-105Trace display in dual channel power meter
• Use the , , or keys to select a measurement window.
Choose the type of display you require from the menu.
Disp Type
Trace
