Using E9320 E-Series Power Sensors 4
N1911A/1912A P-Series Power Meters User’s Guide 139
Step 1. Connecting the Power Sensor
When you initially connect an E- Series E9320 power sensor to the power
meter, the sensor’s calibration data is automatically read by the power
meter. After every power cycle, the E9320 must perform zero and
calibration as the P- Series power meters do not retain the states and
settings upon power cycle (warm start feature).
Connect the sensor to the power source.
Step 2. Setting the Channel Frequency

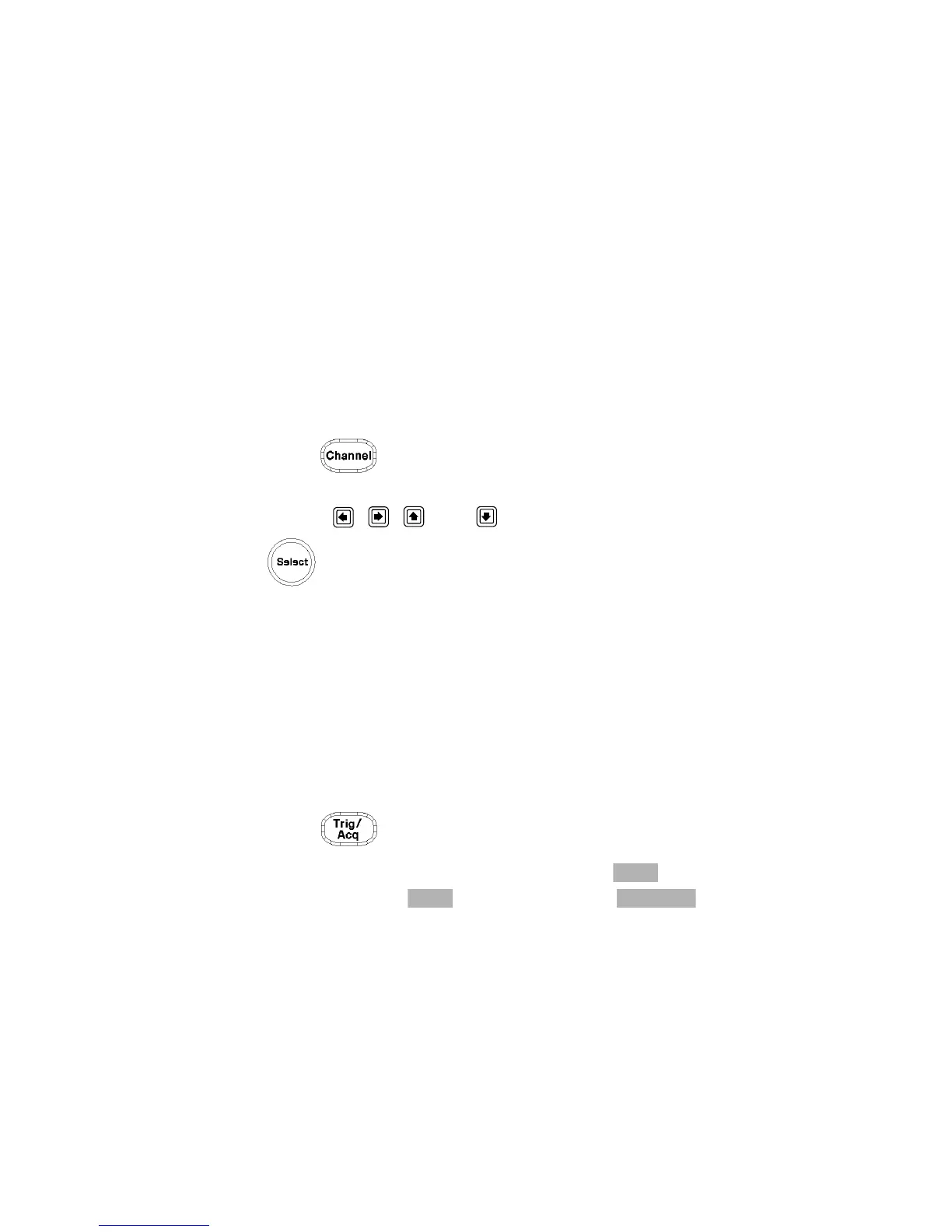

• Press . The Channel Setup screen is displayed. If using an
N1912A, select the channel you want to configure.
• Use the , , , and keys to highlight the frequency field. Press
to configure the setting. See “Setting the Measurement
Frequency” on page 32 for further information.
When you have completed the procedure you can return to this menu later
to add more accuracy to the measurement.
Step 3. Setting the Trigger
To use the measurement gates the power meter must be triggered.
A trigger can be taken from a rising or falling measured power level or
controlled externally using the Ext Trig input.
• Press . The Trigger menu is displayed.
The trigger status is displayed below the label in the Trigger
menu. Press the softkey and select to configure
continuous triggering.
When you have completed the procedure you may return to the Trigger
menu later to add more accuracy to the remaining trigger parameters,
to help you achieve a stable and reliable trigger.
