Gate Control Press to display the Gate Ctrl menu. Setting the
gate features are described in greater details in “Gate Control in a Single
Enlarged Window” on page 142”.
Viewing the Results in a Full Screen Window
Use the key to display the trace in a full screen window display.
This provides a better resolution on the display. You can press
or to display the results as set in Single Enlarged Window mode.
The current settings of the X and Y scale are displayed on the reporting
line above
the results. You need to toggle the key to allow the softkeys to be
displayed.

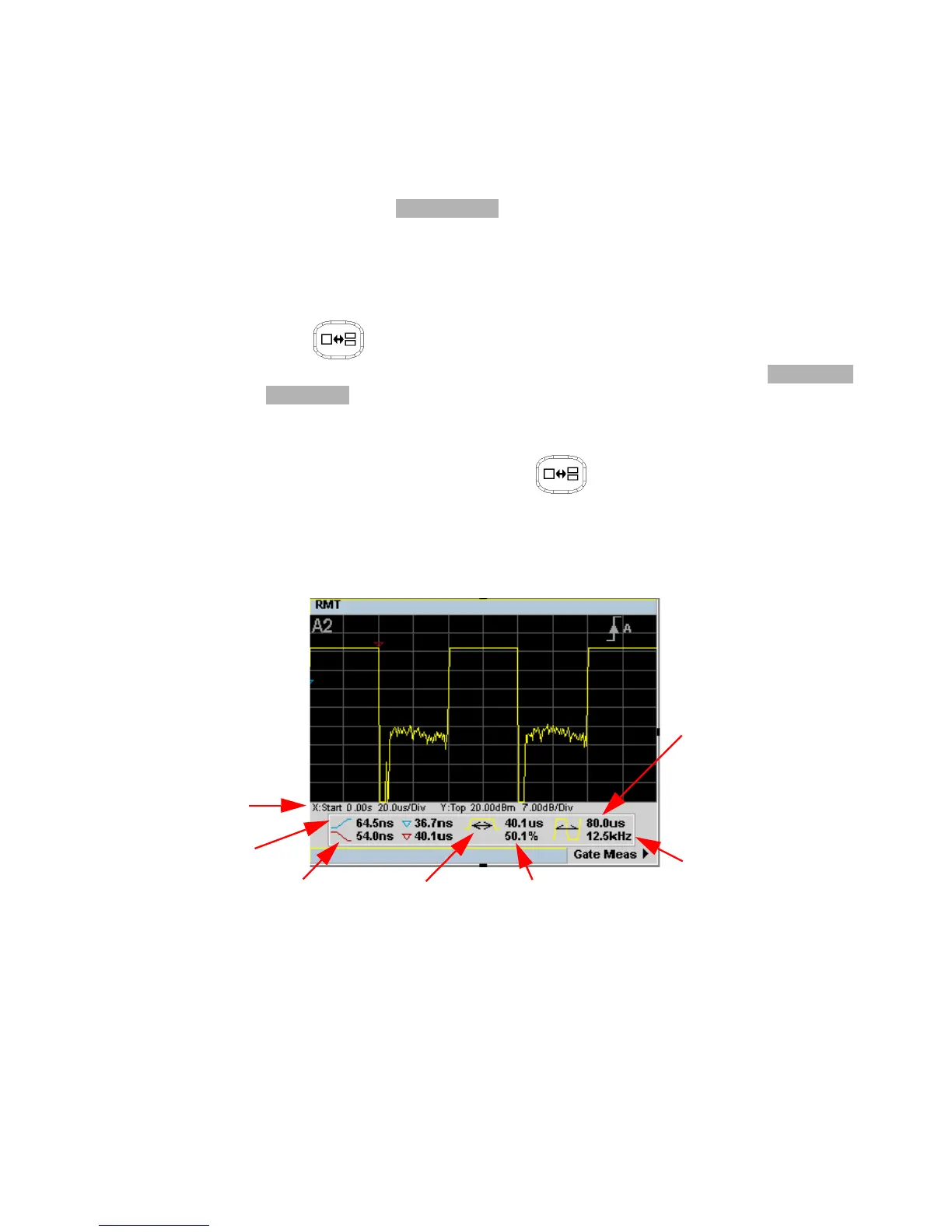

Figure 4-110Trace display in full screen
Scale Settings
Rising Edge
Falling Edge
Pulse Period
Pulse Repetitive Frequency
Duty CyclePulse Width
To Next Page
