Agilent Technologies N1911A - Figure 2-72 Gating Number Pop-Up

2 General Power Meter Functions
94 N1911A/1912A P-Series Power Meters User’s Guide
8 Press to display the Gate Number pop- up, and use the numeric
keypad to enter the required value in the Gate Number pop- up window.

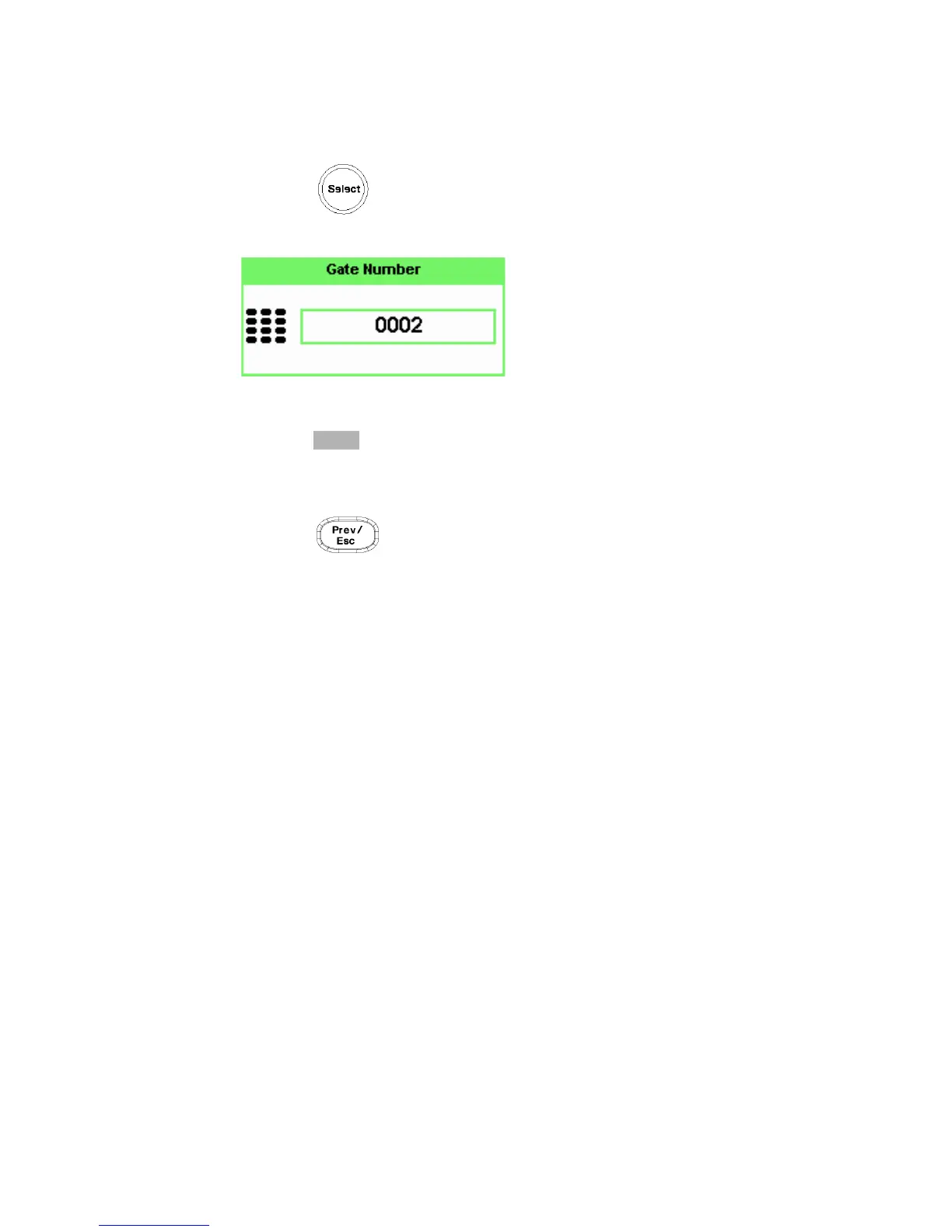

Figure 2-72 Gating Number pop-up
9 Press to complete the entry.
10 Repeat this process until you have setup all the required gates and
measurements.
11 Press key to complete the setup and display the measurement
results.
Enter
