General Power Meter Functions 2
N1911A/1912A P-Series Power Meters User’s Guide 63
3 Press to display the Trace Start Time pop- up and use the numeric
keypad to enter the required value in the Trace Start Time pop- up
window.

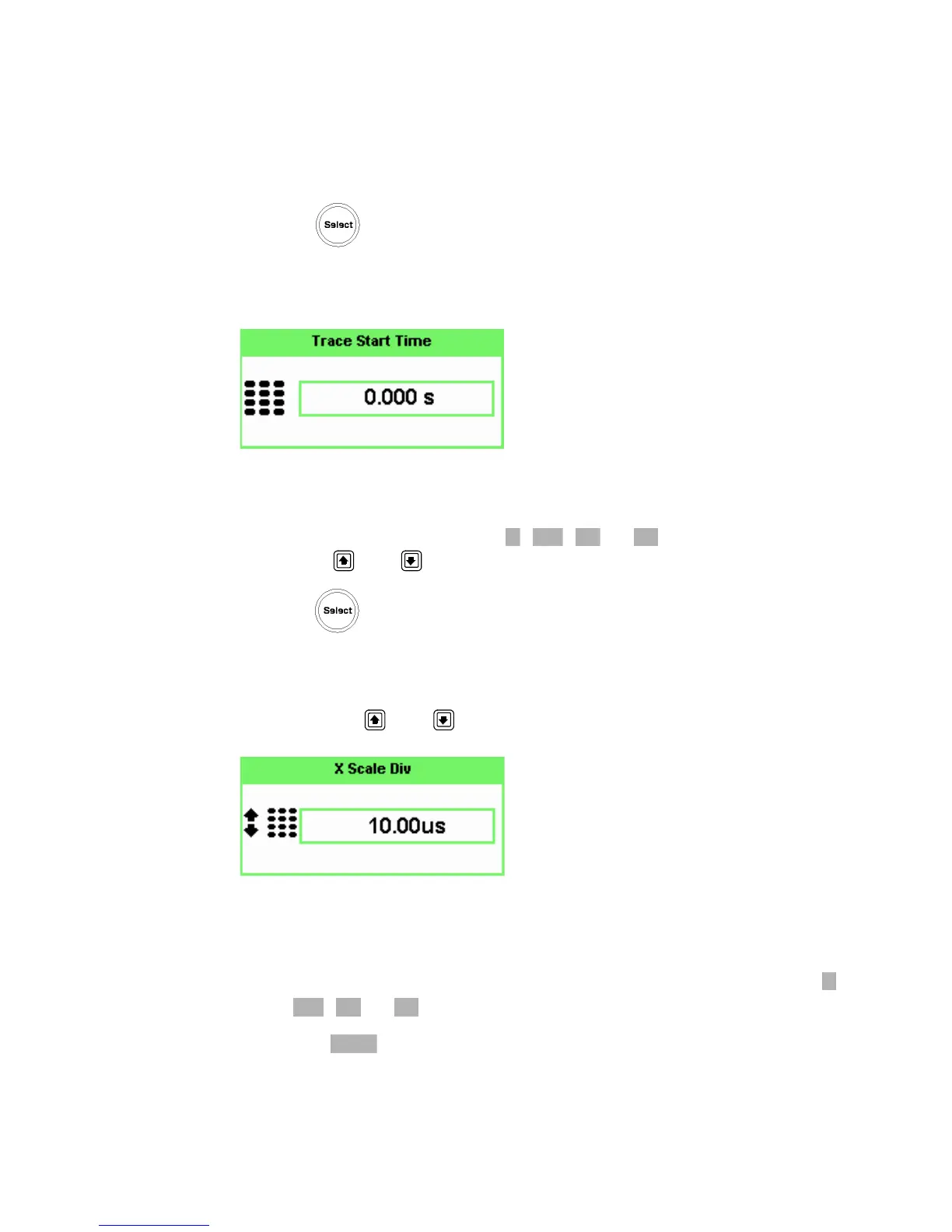

Figure 2-46 Trace Start Time pop-up
4 Complete the entry by pressing the required second, millisecond,
microsecond or nanosecond ( , , or ) softkey.
5 Use the and keys to highlight the X Scale field.
6 Press to display the X Scale/Division pop- up.
a. Use the numeric keypad to enter the required value in the X
Scale/Division pop- up window.
b. Use the and keys to increase or decrease the value.
Figure 2-47 X Scale/Division pop-up
7 Complete the entry by pressing:
a. The required second, millisecond, microsecond or nanosecond ( ,
, or ) softkey.
b. The softkey.
s
ms
us
ns
s
ms
us
ns
Enter
