1 Introduction
24 N1911A/1912A P-Series Power Meters User’s Guide

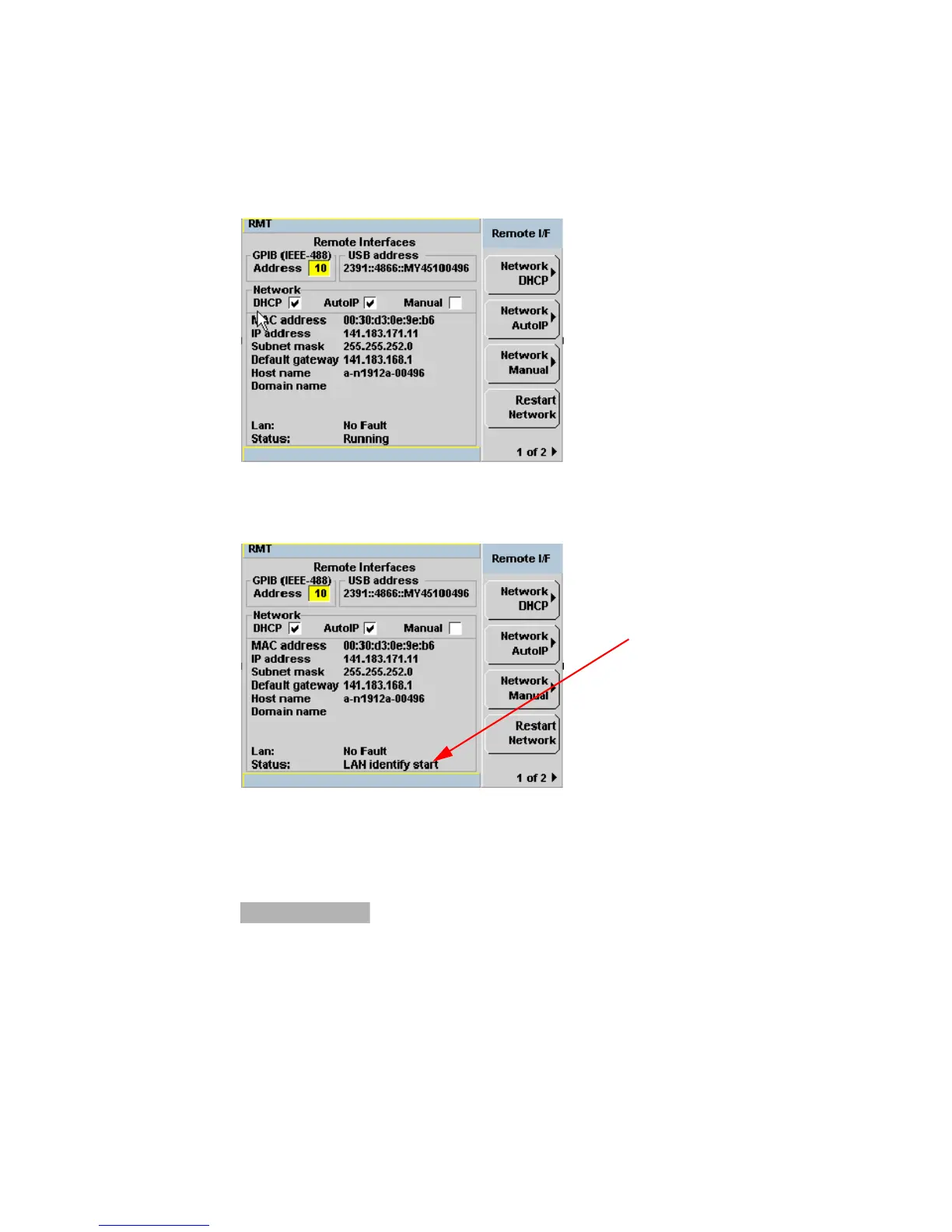

Figure 1-10 Status message before Toggle ID is selected.
Figure 1-11 Status message when Toggle ID is selected.
When power meter is configured to LAN, the Lan Status on
screen will show the LAN error condition and status of
the LAN configuration connection. There are six types of Lan Status
messages that may occur. See Table 1- 1. See also Figure 1- 12 for the
example of Lan Status message.
Status message “LAN
identity start” to blink 3
times when Toggle ID is
selected.
Remote Interfaces
