INTRODUCTION
Page 6 S2000 Operator’s Manual - Version 1.30

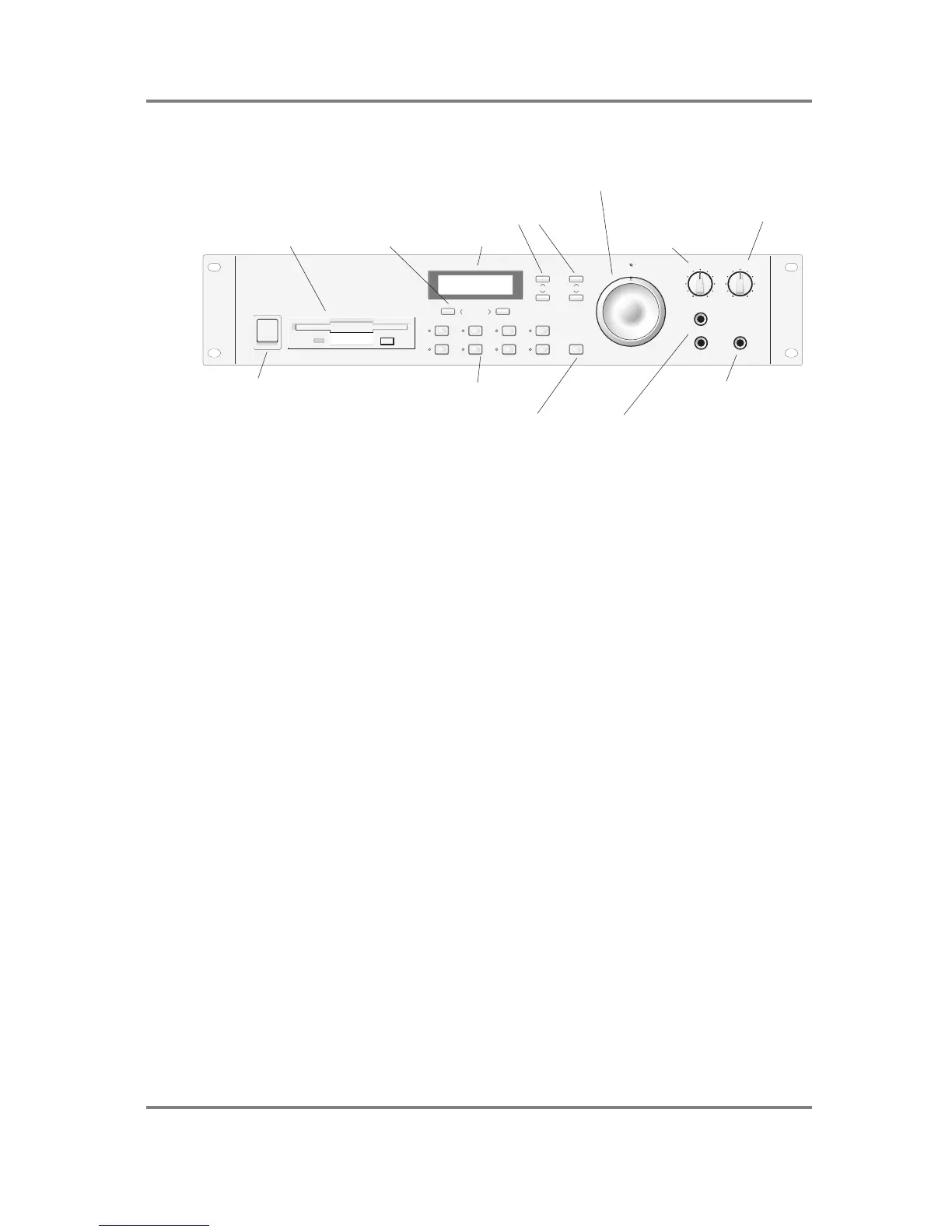

FRONT PANEL
POWER SWITCH
FLOPPY DISK DRIVE
MODE KEYS
PLAY KEY
DATA/SELECT WHEEL
ANALOGUE INPUTS
PHONES OUTPUT
RECORD LEVEL
MAIN OUTPUT LEVELPAGE/GROUP UP/DOWN KEYS
LCDSOFT KEYS
AKAI
MIN MAX
PAGE
F1
F2
CURSOR
SINGLE MULTI SAMPLE
EFFECTS
L/MONO
MIDI DIGITAL STEREO SAMPLER
REC GAIN
GROUP
POWER
DATA SELECT
MIN MAX
Professional
MAIN VOLUME
PHONES
EDIT GLOBAL SAVE LOAD PLAY
R
S2000
POWER SWITCH Applies power to the S2000.
FLOPPY DISK DRIVE Allows you to save and load data to or from a floppy disk. You
may also load new operating systems from the floppy disk
drive.
MODE KEYS Selects the operating mode for the sampler.
PLAY KEY Allows you to play a sound without the need for a MIDI
controller (i.e. keyboard) to be connected.
DATA ENTRY The inner wheel allows you to set data values and the outer
wheel allows you to select items for editing depending on the
selected mode.
ANALOGUE INPUTS These jack inputs allow stereo recording. When only the
L/MONO input is connected, mono recording is possible.
PHONES This stereo jack socket allows you to monitor the L/R (stereo)
output of the S2000 through stereo headphones. The level
is regulated using the MAIN OUTPUT LEVEL control (see
below).
MAIN OUTPUT LEVEL The MAIN OUTPUT LEVEL control sets the main output level
of the L/R stereo outputs (this control does not affect the
level of the signal appearing at the optional individual outputs
or digital output).
RECORD LEVEL Sets the record level for analogue inputs.
PAGE UP/DOWN KEYS Allows you to step through the various pages or screens
available in the S2000.
GROUP UP/DOWN KEYS Certain parameters are grouped together and these keys
allow you to skip intermediary pages allowing quick access to
logical groups of parameters. These are explained in detail
later in this manual.
