Spectrum Analyzer Measurements 3-22 Carrier-to-Interference
Spectrum Analyzer MG PN: 10580-00447 Rev. H 3-113

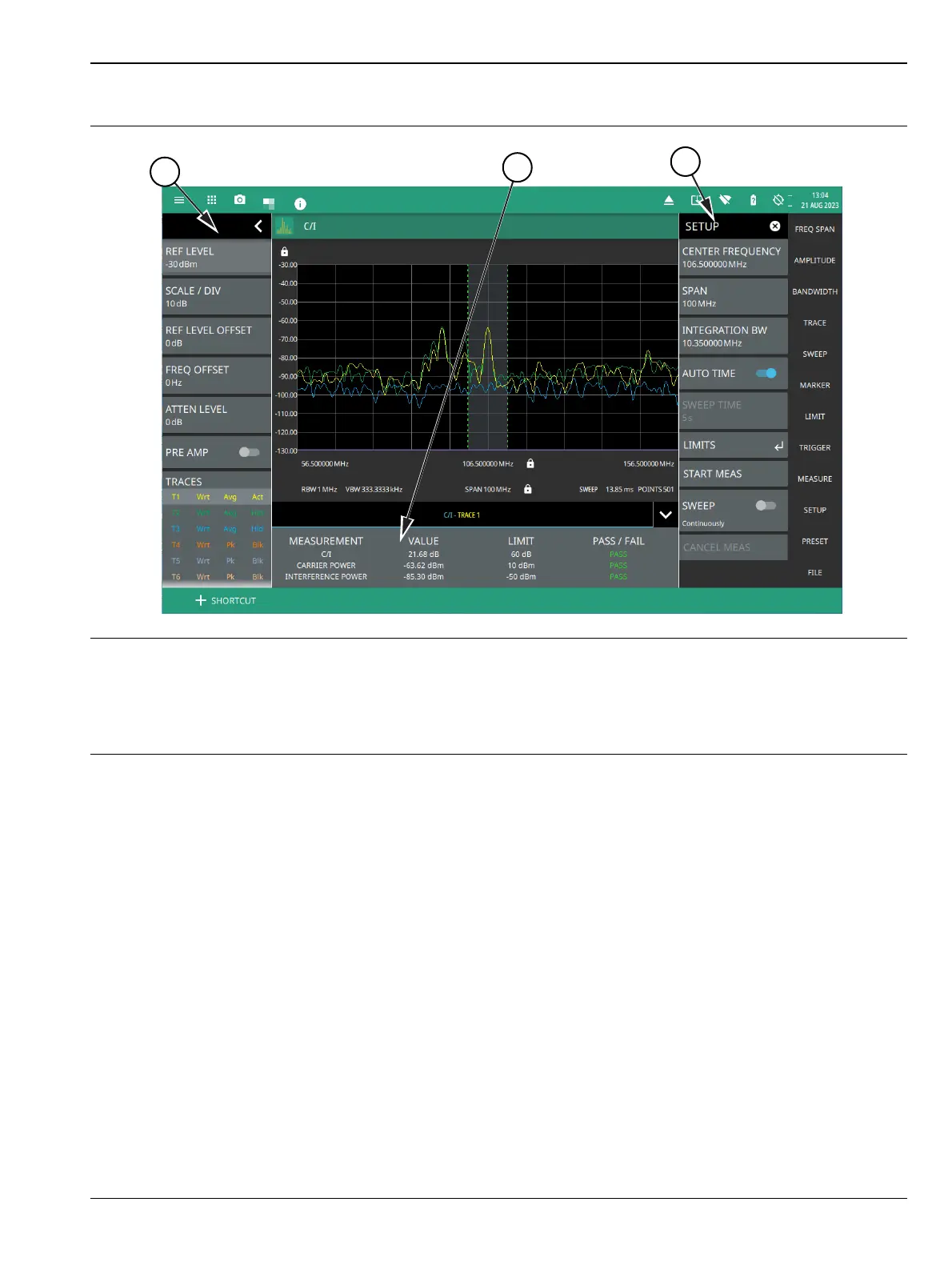

1. Status panel provides quick access to all the spectrum analyzer menu settings. See “STATUS PANEL (C/I)”
on page 3-115.
2. The C/I table shows the carrier-to-interference ratio (dB), carrier power and interference power measured in
dBm.The Pass/Fail status is populated only if the limits are toggled on in LIMITS menu.
3. The SETUP menu is where the C/I settings are configured. See “SETUP Menu (C/I)” on page 3-116.
Figure 3-91. Carrier-to-Interference measurement
