Instrument Overview 2-7 GUI Overview
MS2090A UG PN: 10580-00444 Rev. U 2-13
Title bar
The tool bar is located at the top of the interface screen. It displays icons that provide access to information and
user actions as described below. All of the icons are active and will open the appropriate menu or item when
selected.
1. Select the 3-LINE icon to access the System Menu. System menu also shows the instrument model and serial
number.
2. Select 9-DOTS icon is select the analyzer. Refer to Selecting the Analyzer section.
3. Select the CAMERA icon to capture a screenshot of the current display. The image file is saved in PNG format
with the following naming scheme: screenshot_yymmdd_hhmmss.png (year, month, day, hour, minute, second).
Using the Date Time Settings, you can set the screen capture region, color theme, annotations, and destination
directory.
4. Select NOTIFICATION icon to view the list of notifications generated by the instrument while making
measurements or after taking a screenshot and so on. Refer to Appendix A chapter more information.
5. Select USB EJECT icon to eject (unmount) a USB memory device plugged to the USB port of the instrument. It
is a best practice to select eject icon before unplugging a USB memory device from the port to avoid data
corruption. Note that the eject icon is not displayed if a USB memory device is not connected. A similar icon can
be accessed in Section 2-11 “File Management” on page 2-46.
6. Select SOFTWARE UPDATE icon to install an updated version of the firmware package, when the instrument is
connected to the Internet. Install the firmware update by connecting a USB memory device if there is no Internet
connection. Refer to “Software Update” on page B-2.
7. Select wireless networking icon to view the list of Wi-Fi networks and network information. Refer to Wi-Fi
Settings for more information.
8. Select the BATTERY icon to view the MS2090A battery information under the DIAGNOSTIC menu.Refer to
“Battery” on page 2-49
9. Select the GNSS RECEIVER icon to open the GNSS (GPS) Settings (Option 31). Toggle the SHOW IN TITLE
BAR BUTTON to view latitude and longitude coordinates in the Title Bar.
10.Select on it to manually/automatically change date and time settings. Refer to “Date Time Settings”
on page 2-38.

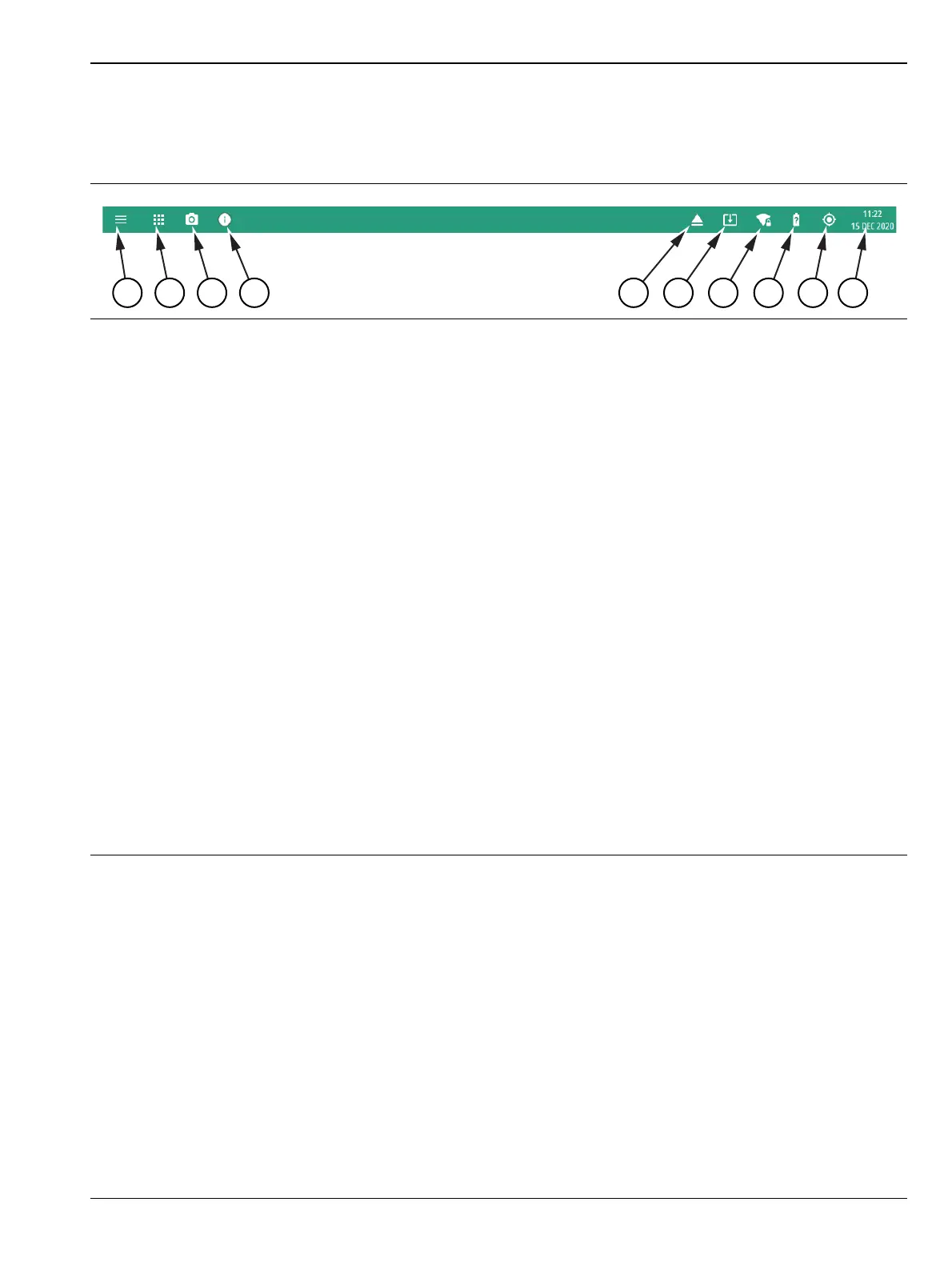

Figure 2-8. Title Bar
