2-1 Introduction
This chapter provides an overview of the spectrum analyzer user interface and describes the main graphical
displays and menus presented in the spectrum analyzer measurement mode.
2-2 Selecting the Analyzer
The instrument analyzers are selected from the 9-dot icon or the current measurement icon. To select an
analyzer, press the 9-dot icon in the title bar or the current measurement icon to display the available
analyzers, illustrated in Figure 2-1. Simply touch the desired icon to load the new analyzer. The analyzers
available for selection depend on the options that are installed and activated on your instrument. Some
measurements and views are accessed via other measurement setup menus.
Note that not all analyzers are included in all instruments.Refer to your instrument’s technical data sheet.

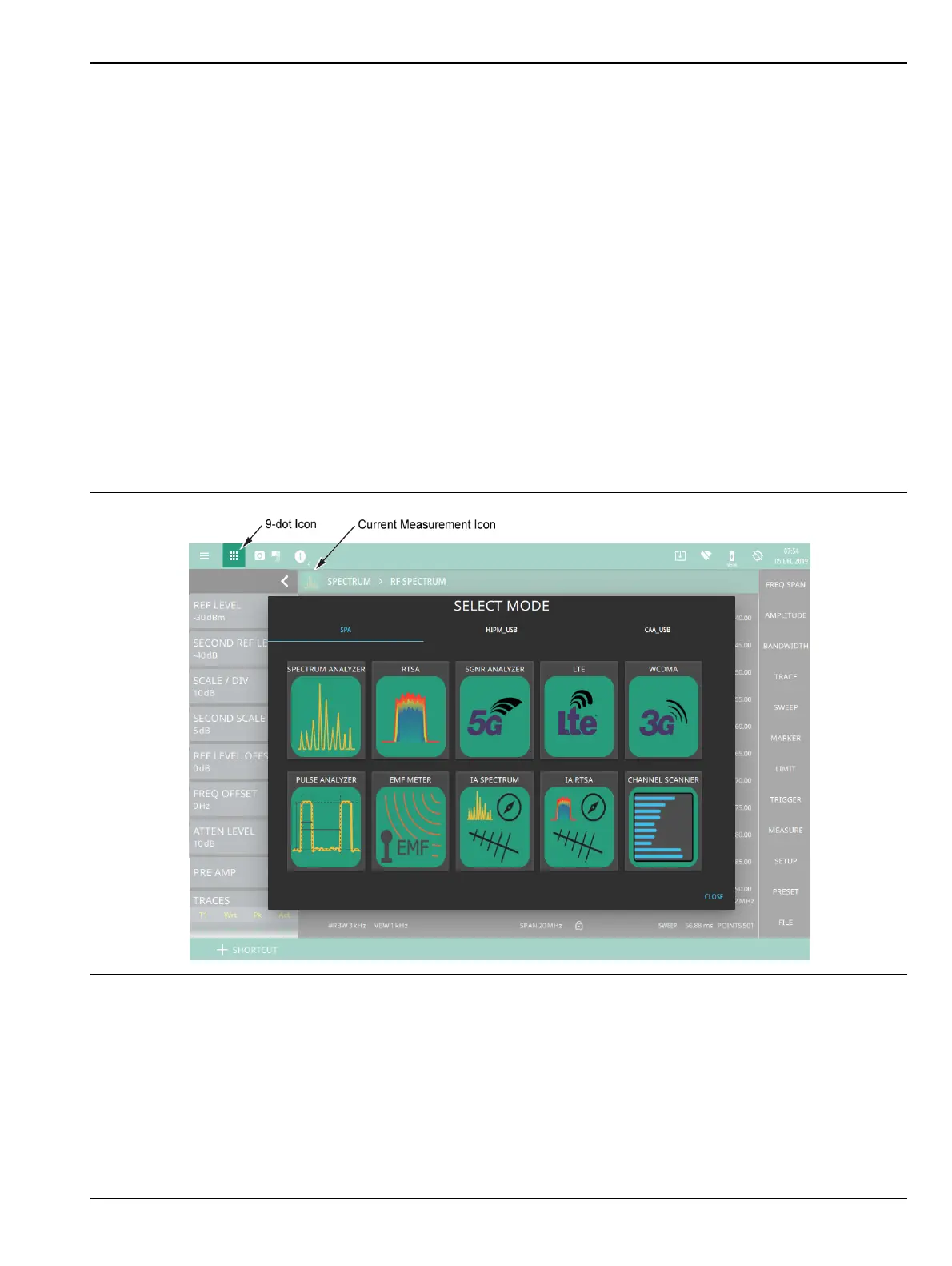

Figure 2-1. Example Analyzers
