Spectrum Analyzer Measurements 3-24 Presetting the Analyzer
Spectrum Analyzer MG PN: 10580-00447 Rev. H 3-119
3-24 Presetting the Analyzer
The PRESET menu sets certain settings to the default state. Preset only affects the current analyzer settings,
such as those for the spectrum analyzer or for the 5GNR analyzer. Preset does not affect user files or system
settings such as networking settings. For other reset options, such as a complete factory reset of the
instrument, refer to “Reset Settings” section of the product’s user guide. To recover from system software
faults, refer to the product’s user guide for more information.
PRESET Menu
PRESET TRACES: Presets all trace settings to default values.
PRESET MARKERS: Presets all marker settings to default values. Turns off all markers.
PRESET LIMITS: Presets all values on the LIMIT menu to default values. Turns off all
limit lines.
PRESET SETUP: Presets all values on the SETUP menu to default values.
PRESET MODE: Presets all of the current analyzer settings to default values.

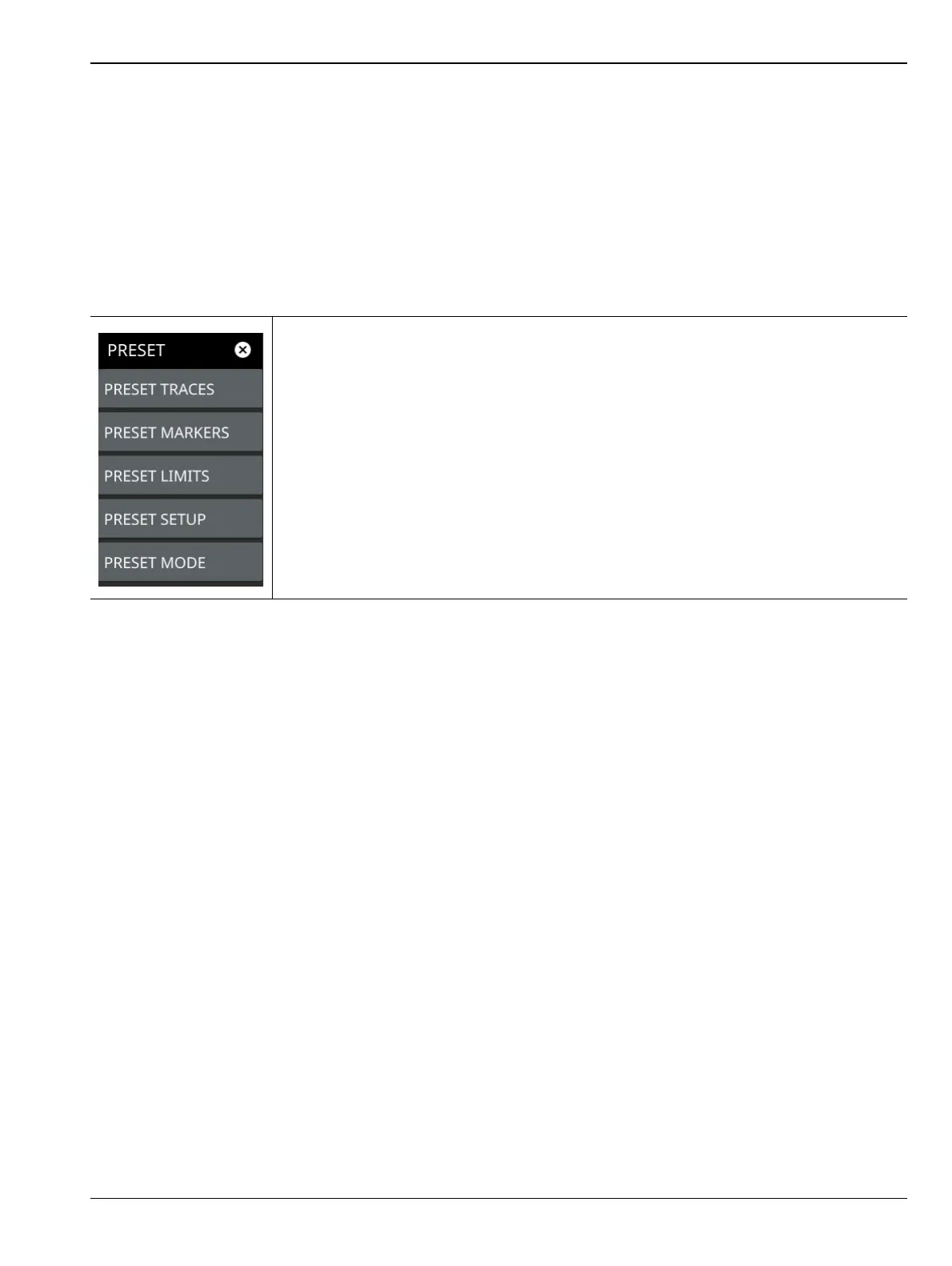

Figure 3-100.PRESET Menu
