ML248xA / ML249xA Common Procedures
5-64 13000-00162
September 2005
Editing Complex Limits
User generated limit settings can be opened, edited as required, and then resaved or
saved under a different name.
Predefined limits can be opened and edited and saved under a new name to a vacant slot
in the [User Limits] dialog. Predefined limits cannot be overwritten.
1. Press the Channel hard key followed by the More soft key.
2. Press the Limit Checking soft key to display the [Lim Check] group of commands.
3. Press the Edit Limit Spec soft key to display the [Edit Limit Specification] dialog.
4. Press the Select Spec soft key and select either User Limit Spec or
Predefined Limit Spec.
5. Use the soft key arrows, or the arrows on the keypad to select the required User or
Predefined limit from the dialog and press the Select soft key. The values for the
limit specification now display within the table.

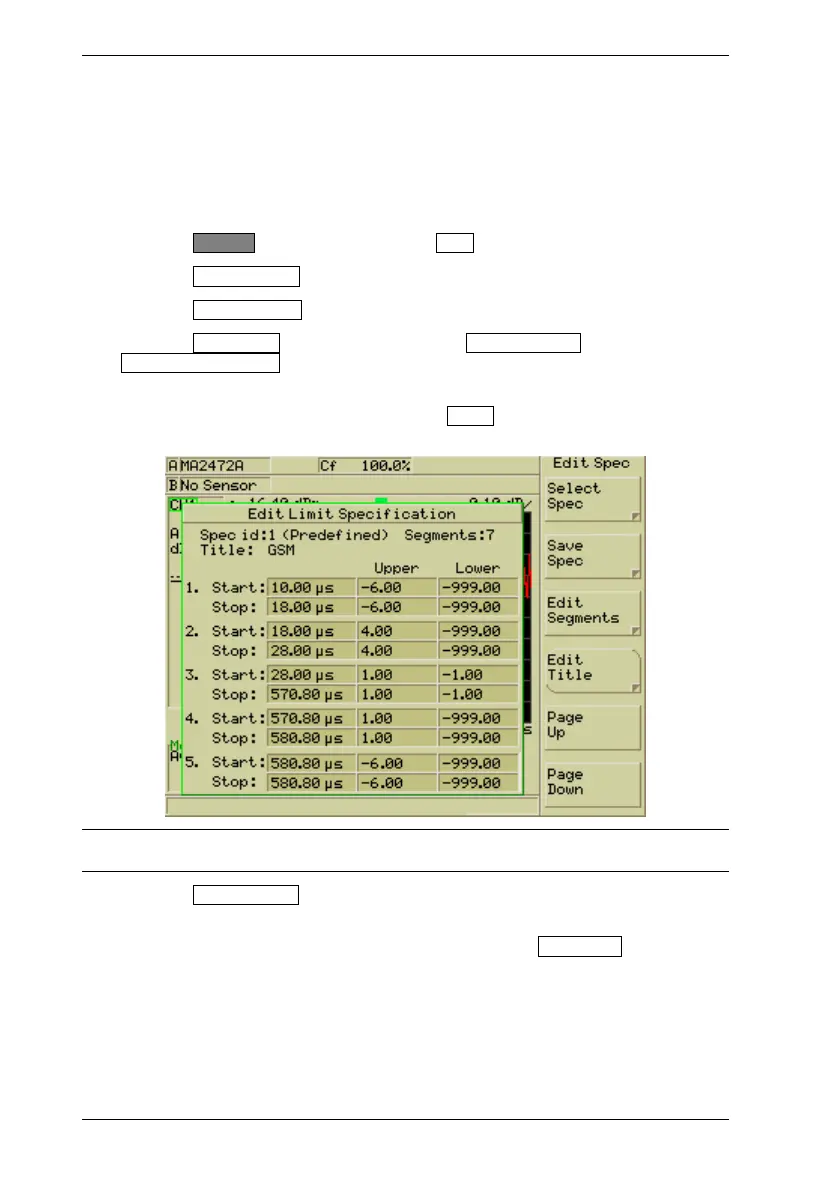

Note: The value of –999.00 is used in the specification above to ensure that a lower limit
failure is not needlessly generated at certain points on the trace.
6. Press the Edit Segments soft key and then edit the values from the keypad as
required.
7. When editing is complete, press [Back] and then press the Save Spec soft key.
8. Use the Save or Save As options to save the changes made.
