Anritsu ML2480B Series User Manual

13000-00162 14-1
September 2005
Chapter 14. Examples of Dual Display
Channel Operation
This chapter provides details of two scenarios in which the user may wish to view both
measurement channels simultaneously.

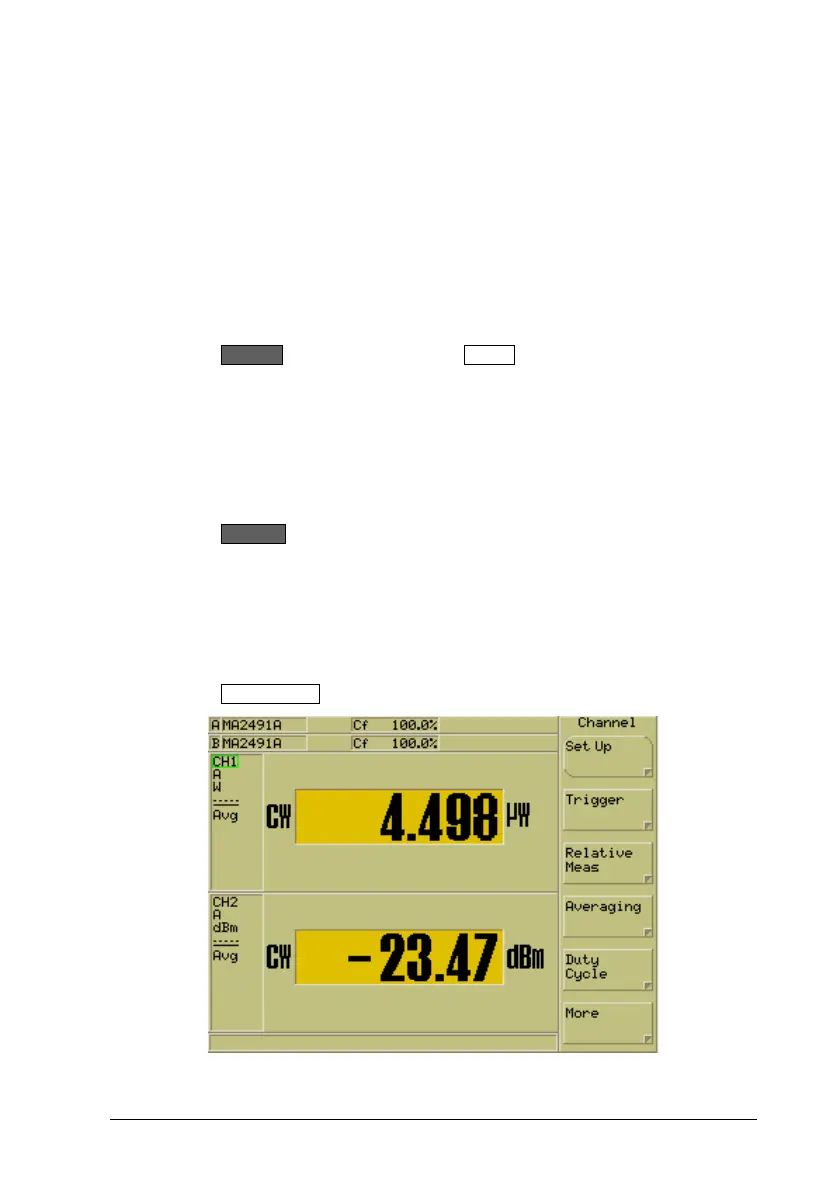

Displaying a Measurement in Different Units
The user may wish to display the measurement from one sensor using different units of
measurement on each channel. The example below details how to set up the channels to
display in Watts on channel 1, and in dBm on channel 2.
1. Press the Channel hard key followed by the Set Up soft key to display the [Channel
Set Up] dialog.
2. Use the soft keys to set the “Mode” to “CW”.
3. Press the down arrow on the keypad to select “Input Config” and check that the
channel is configured for the correct input.
4. Press the down arrow on the keypad to select “Units” and use the soft keys to select
“W”.
5. Press the Ch1/Ch2 hard key.
6. Use the soft keys to set the “Mode” to “CW”.
7. Press the down arrow on the keypad to select “Input Config” and check that the
channel is configured for the correct input.
8. Press the down arrow on the keypad to select “Units” and use the soft keys to select
“dBm”.
9. Press the Dual Channel soft key and then press the [Exit] key on the keypad.
