Common Procedures ML248xA / ML249xA
13000-00162 5-101
September 2005
Using the Preset Configurations
Preset configurations can be used to automatically configure the instrument for each of the
major measurement types. For the ML248xA there are 11 presets and for the ML249xA
an additional five are available (numbers 14 to 18 in the figure below).

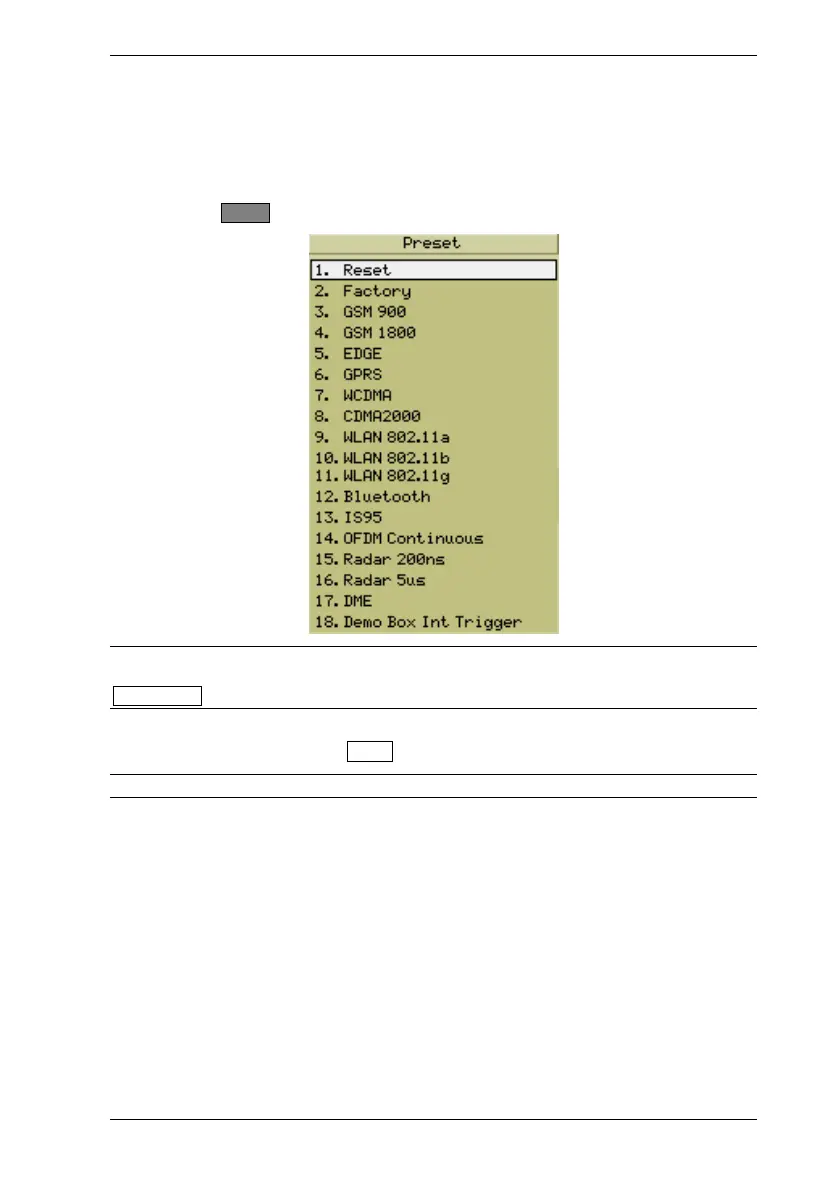

1. Press the Preset hard key to display the [Preset] dialog shown below.
Note: The figure above is a composite image showing all of the presets available. On the
unit itself the dialog displays only the first ten options and the user presses the
Page Down soft key to display options 11 to 18.
2. Use the arrows on the soft key menu or numeric keypad to select the required
configuration and press the Select soft key.
Note: Refer to Appendix C Default Values for details of each of the preset settings.
