ML2419A Range Calibrator ML248xA / ML249xA
13000-00162 16-5
September 2005 Audio Measurements
D
ID Number Label
The ML2419A identification number is affixed to the rear panel. Please use the
complete identification number when ordering parts or corresponding with the
Anritsu Customer Service department.
E
Output 1 5V Reference
Reserved for future use.
F
Output 2 Trigger
Reserved for future use.
Performing Verification
The performance of the ML248xA / ML249xA signal channel inputs is verified using the
following procedure. References in this procedure to sensor input B apply to ML2488A
and ML2496A (dual-channel) power meters only.
1. Connect the Range Calibrator to the Power Meter using 1.5 m sensor cables. The
input(s) to be verified must be connected to the corresponding connector(s) on the
Range Calibrator; that is, connect Power Meter connector A to Range Calibrator
connector A, and connector B to connector B (ML2488A and ML2496A only).

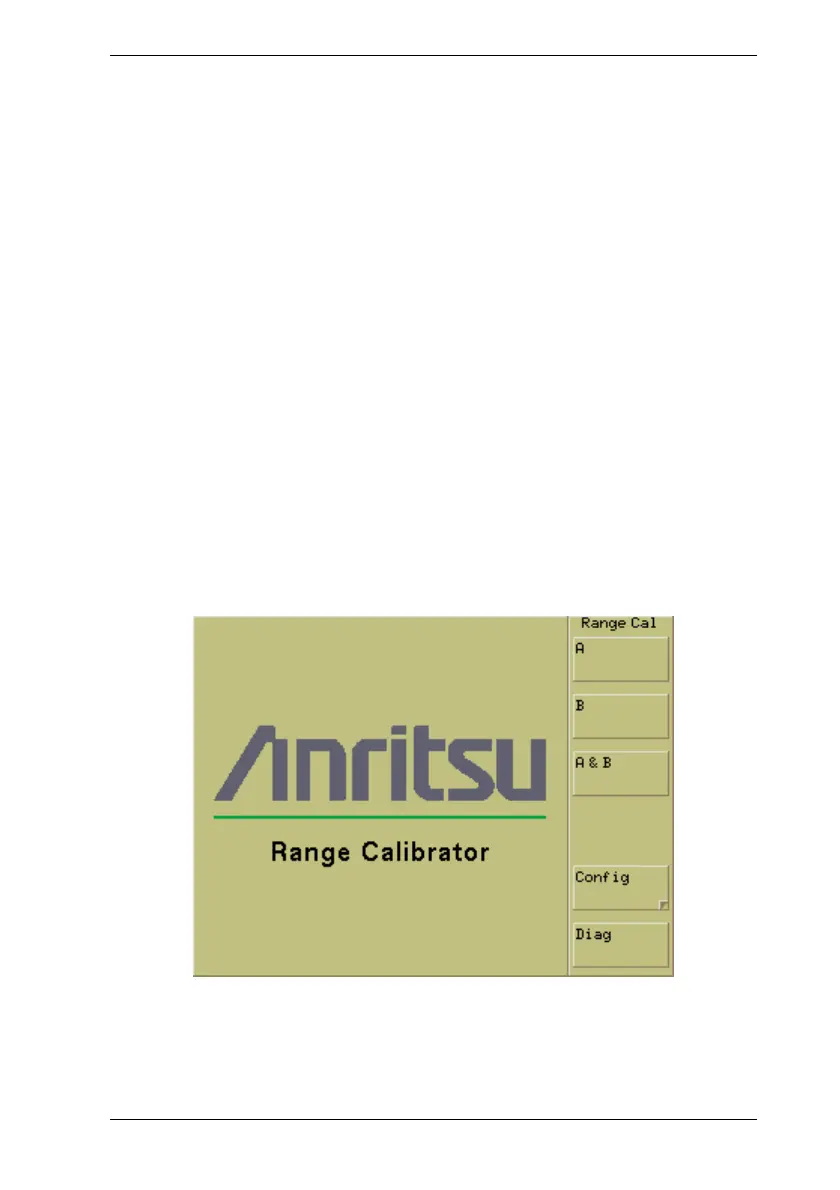

2. On connection of the sensor cable(s), the power meter automatically detects the
Range Calibrator and displays the following screen.
