11-6 Calibration Correction Vector Voltmeter, Option 15
11-8 PN: 10580-00289 Rev. K Vector Network Analyzer MG
1The VNAMaster
2 Optional Test Port Cable
3 Optional Adapter for Through Connection
4 OSL (Open, Short, Load) Precision Calibration Components

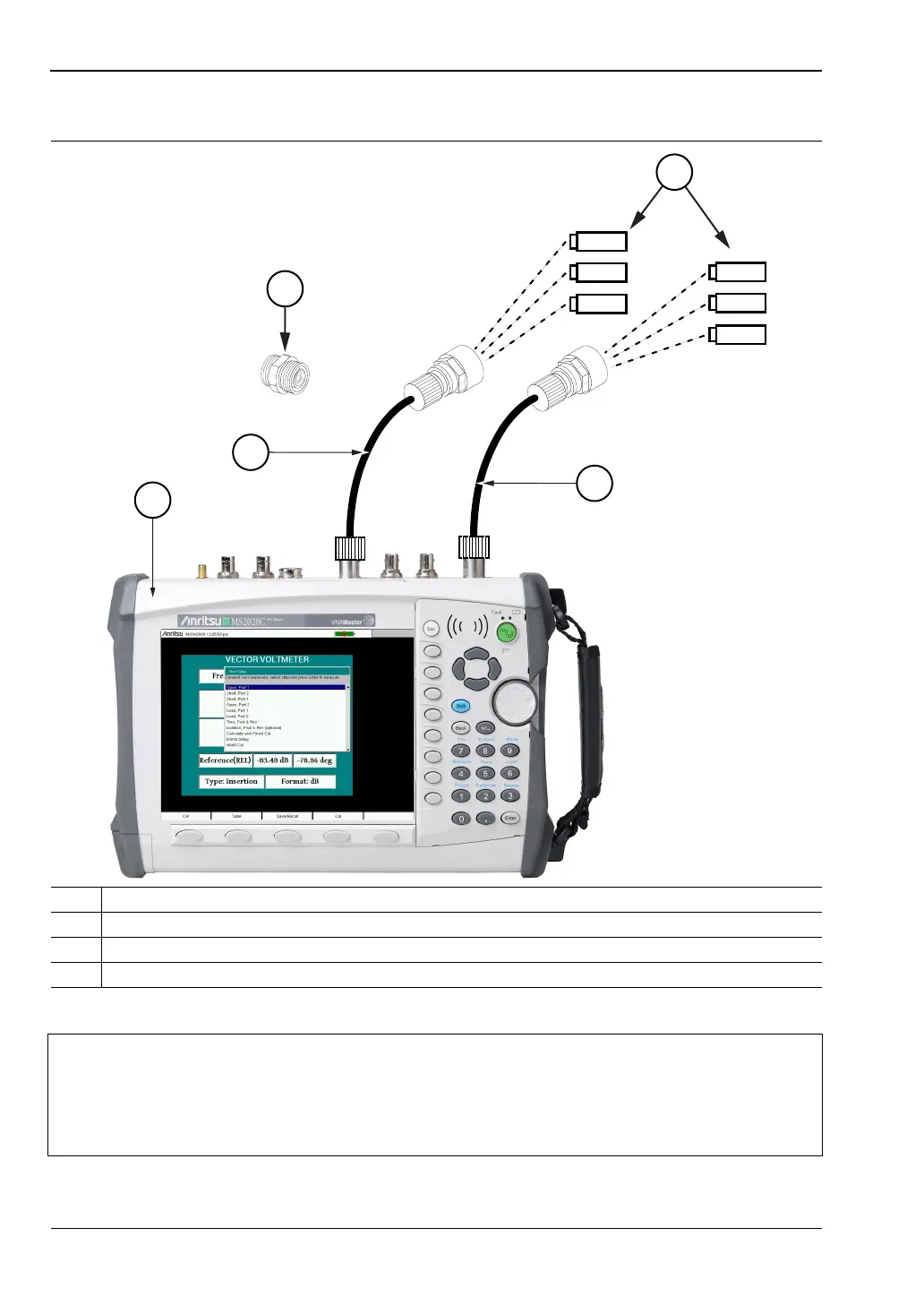

Figure 11-3. 2-Port Calibration, using MS2028C
Note
Figure 11-3 shows an optional adapter for the Through connection. If you are using
test port cables, and if you have sufficient calibration components, then using male
OSL standards on one port and female OSL standards on the other port allows you
to connect the cable ends together without the adapter. This becomes more
important at higher frequencies.
1
4
2
3
2
OPEN
SHORT
LOAD
OPEN
SHORT
LOAD
