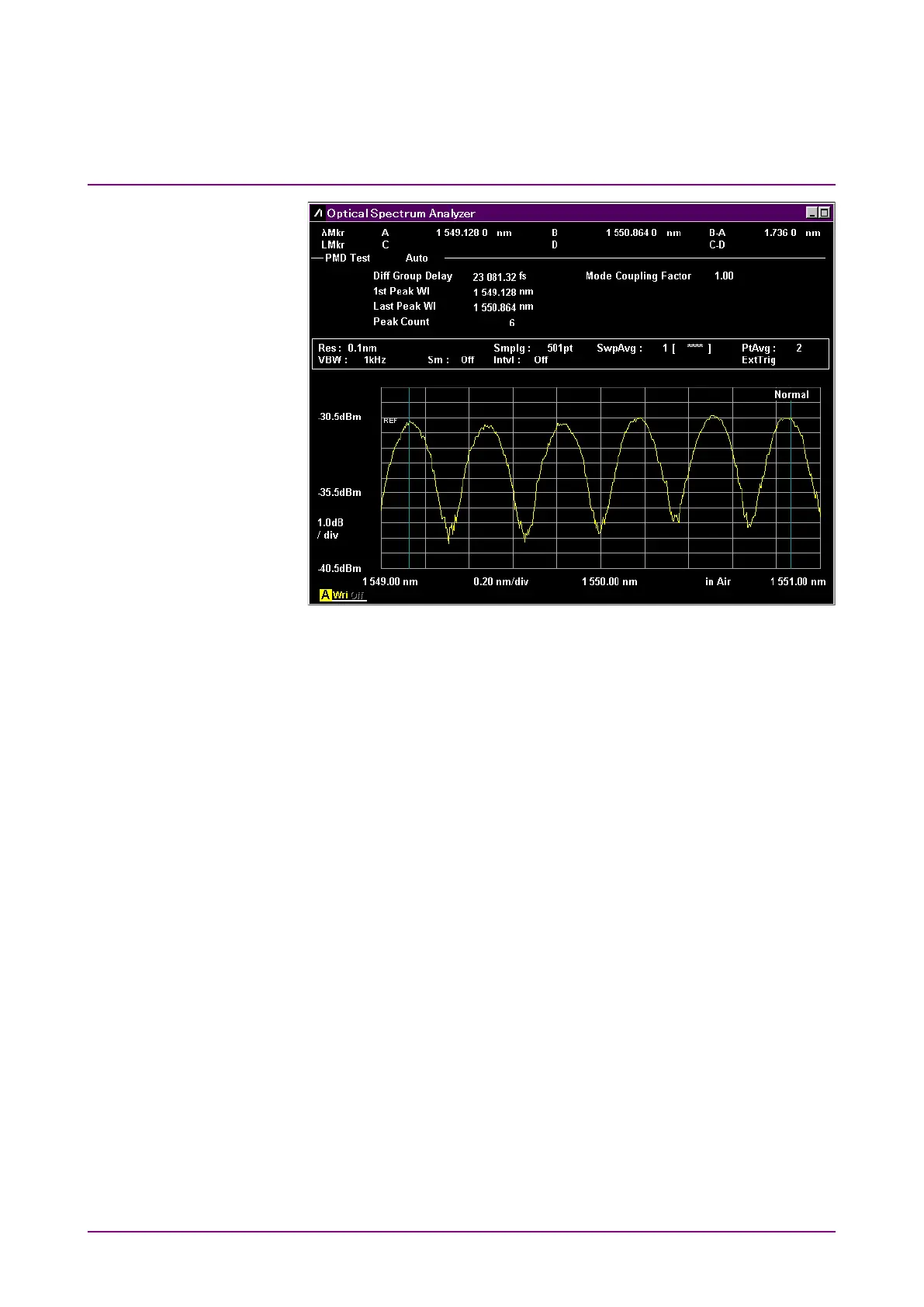

Figure 5.4-2 PMD-Test Example
5.4.1 Setting Items
This function has following setting items.
●
Auto/Manual
This sets the method for capturing the following values used in the
calculation.
●
First Peak Wavelength in analysis range (1st Peak Wavelength)
●
Last Peak Wavelength in analysis range (Last Peak Wavelength)
●
Peak Count included in analysis range (Peak Count)
Auto: Detects 1st Peak, Last Peak, and Peak Count
automatically
Manual: Sets 1st Peak, Last Peak, and Peak Count manually.
●
Mode Cpl Factor
This sets the mode connection factor.
●
1st Peak Marker
This sets the position of the 1
st
Peak Marker at Manual measurement.
●
Last Peak Marker
This sets the position of Last Peak Marker at Manual setting.
●
Peak Count
This sets the number of peaks included between the 1st Peak Marker
and Last Peak Marker at Manual measurement.
