4.6 Changing Waveform Memory Settings and
Calculation between Memories
The MS9740B has 10 waveform memories called trace memories. The
trace display and store methods can be changed. Also, the calculation can
be performed between traces. Press the
F6 Trace
key to use this function.
Notes:
● The calculated wavelength and other wavelength cannot be
displayed at the same time.
● Only traces with the same display mode as the Active Trace are
displayed. Traces using other display modes are not displayed.

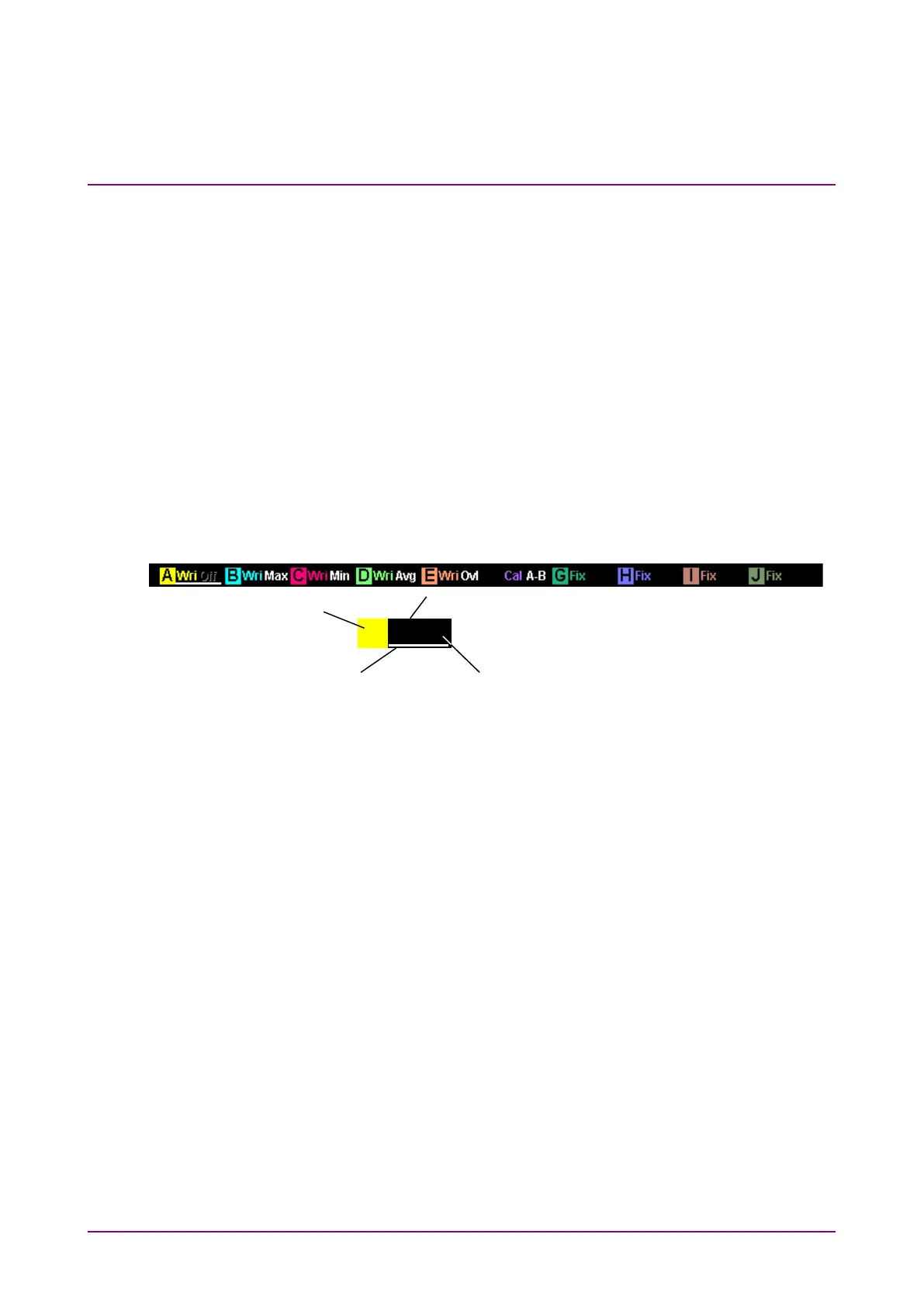

The trace information is displayed on the screen as shown below.
Figure 4.6-1 Trace Display
Trace name
A
Wri Max
Trace type
Active trace display
Storage mode or calculating formula
