2.2 Part Names
2-5
2
Before Use
2.2 Part Names
2.2.1 Front Panel

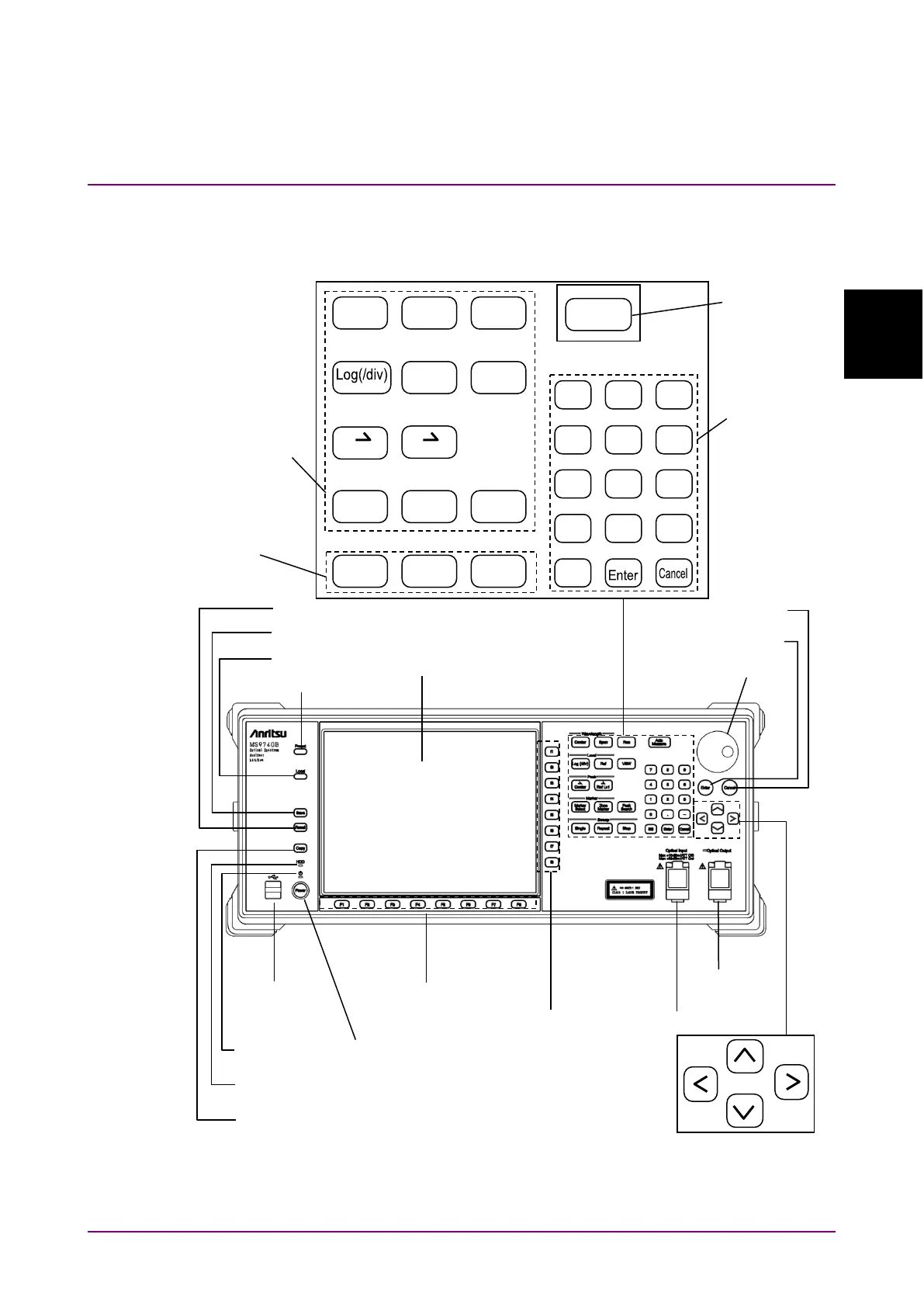

Figure 2.2.1-1 Front Panel
Panel keys can also be operated from the keyboard. Refer to Appendix D
“Keyboard and Mouse Operations”.
Local key
Preset key
Recall key
Horizontal function key
(F1 to F8)
Enter key
Save key
Cancel key
USB connector
Vertical function key
(f1 to f8)
Optical input connector
Optical output
connector
Power switch
Hard disk lamp
Power lamp
Shortcut key
Measurement
key
Auto
Measure key
Rotary knob
Arrow key
Display
Numeric
input key
Copy key
Center
Span
Res
Ref
VBW
Center
Ref Lvl
Marker
Select
Zone
Marker
Peak
Search
Single
Repeat
Stop
Auto
Measure
7
8
9
4
5
6
1
2
3
0
.
—
BS
