5.5 Measuring WDM (Wavelength Division Multiplexed) Signals
5-21
5
Measurement Functions
5.5.2 How to Set the Signal Measurement Method
In the Signal Parameter dialog box, set the signal detection range
(S.Level) and wavelength/level detection method.

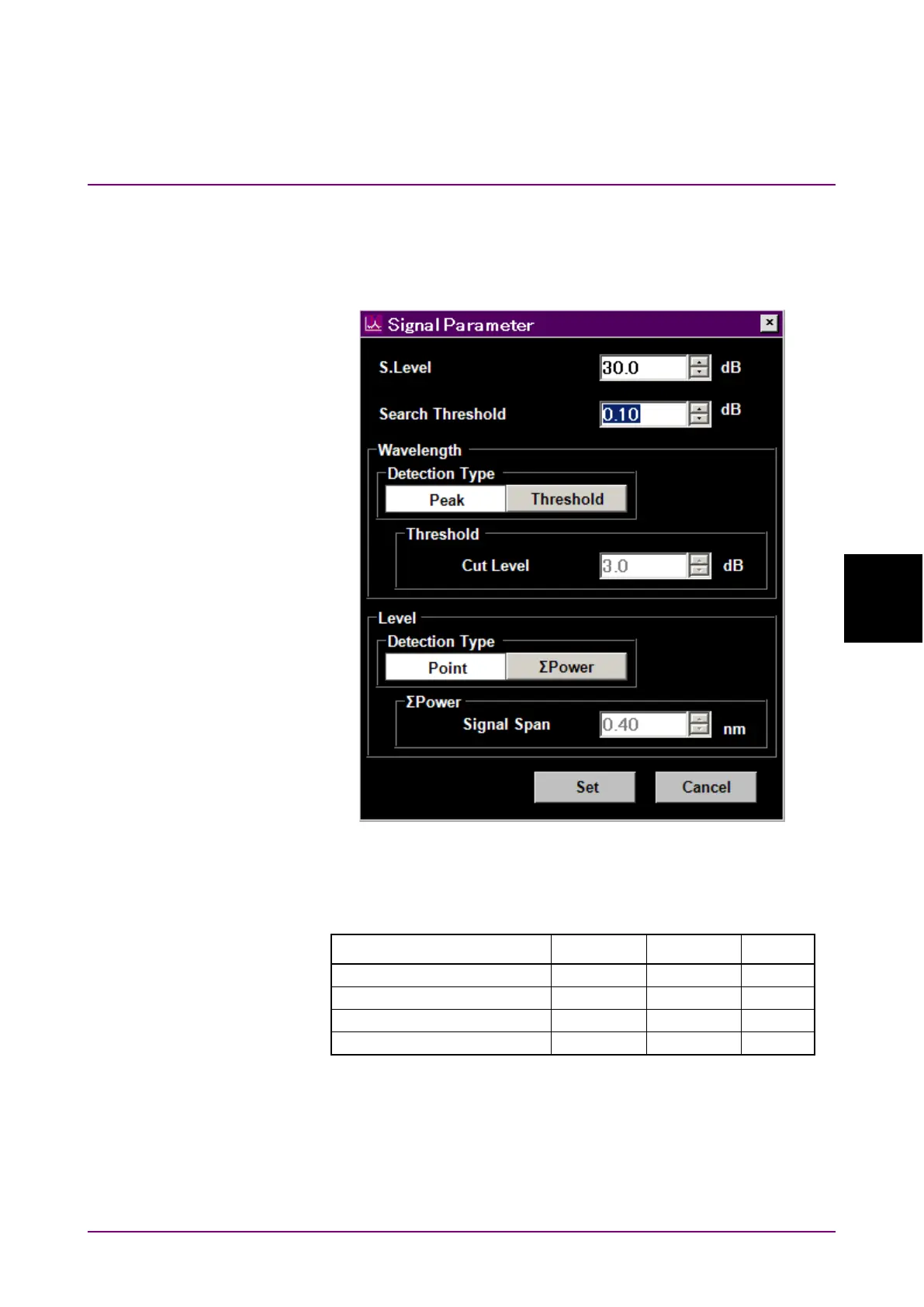

Figure 5.5.2-1 Signal Parameter Dialog Box
Table 5.5.2-1 Setting Range of the Parameters in the Signal Parameter
Dialog Box
Item Min. Max. Unit
Cut Level
0.1
50.0
dB
Search Threshold
0.01
10.0
dB
Signal Span
0.01
50.00
nm
S.Level
0.1
50.0
dB
