Chapter 5 Measurement Functions
5-20
Relative:
Up to 5 wavelengths, spacing, wavelength-references, levels, and
Level-references are displayed on one screen.

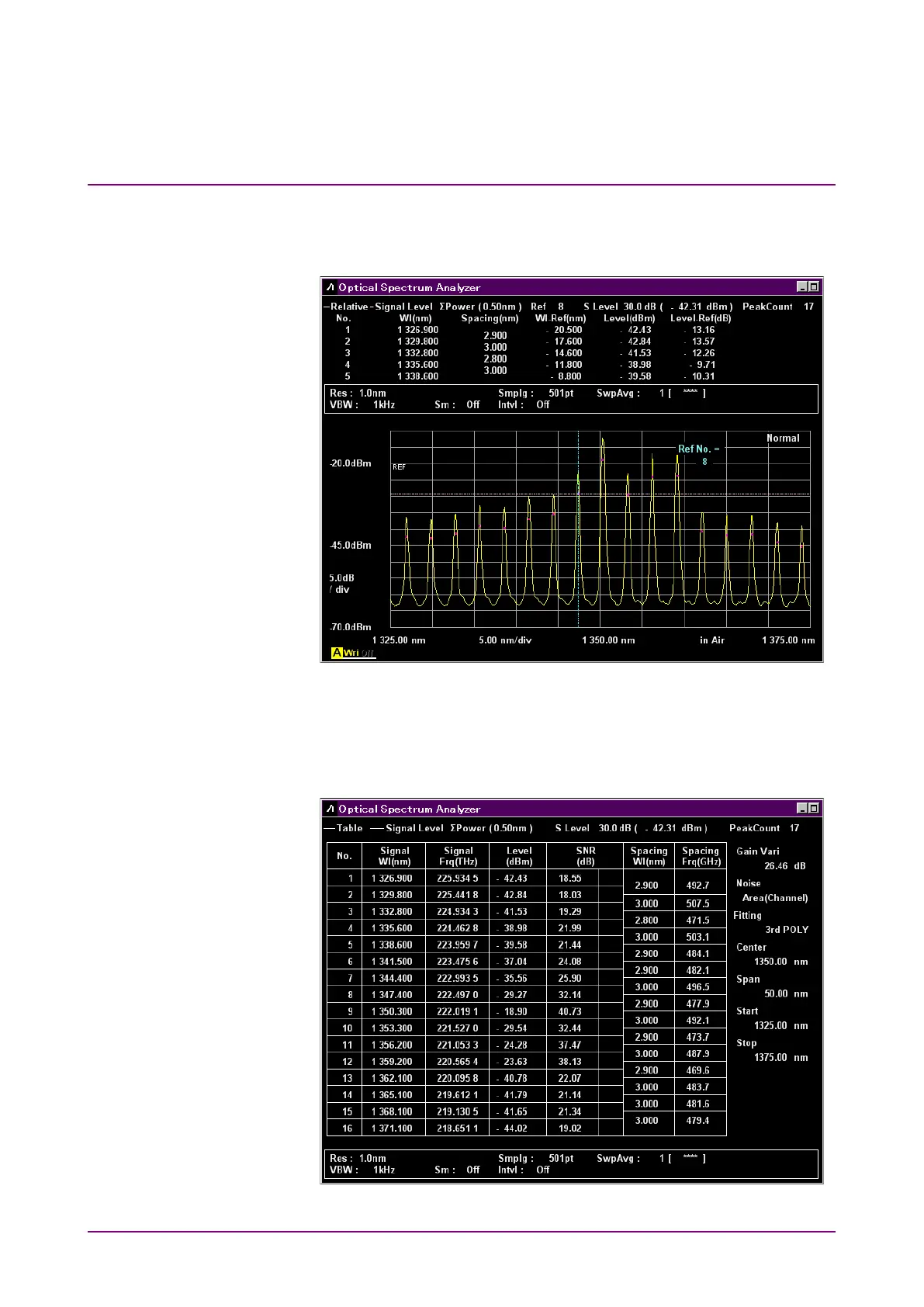

Figure 5.5.1-3 WDM Relative Display Example
Table:
Up to 16 wavelengths, frequencies, levels, signal noises, wavelength
intervals and spacing intervals are displayed on one screen.
Figure 5.5.1-4 WDM Table Display Example
