5.5 Measuring WDM (Wavelength Division Multiplexed) Signals
5-19
5
Measurement Functions
Multi Peak:
Up to 15 wavelengths and levels are displayed on one screen.

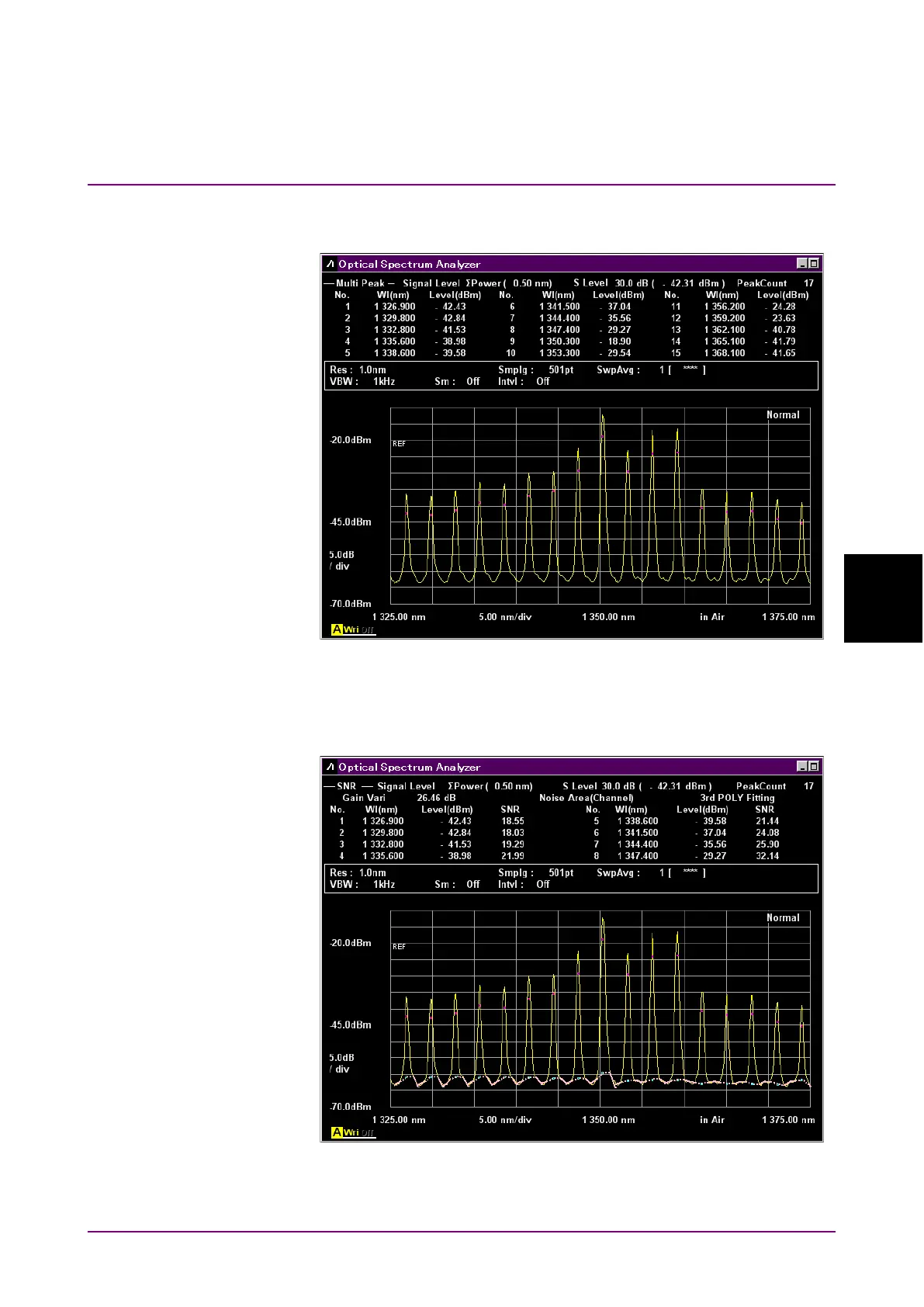

Figure 5.5.1-1 Multi Peak Display Example
SNR:
Up to 8 wavelengths, levels and signal noises are displayed on one screen.
Figure 5.5.1-2 SNR Display Example
