● Signal Parameter
The Signal Parameter dialog box sets the level range to calculate
standard deviation (Slice Level), and wavelength/level detection
method.

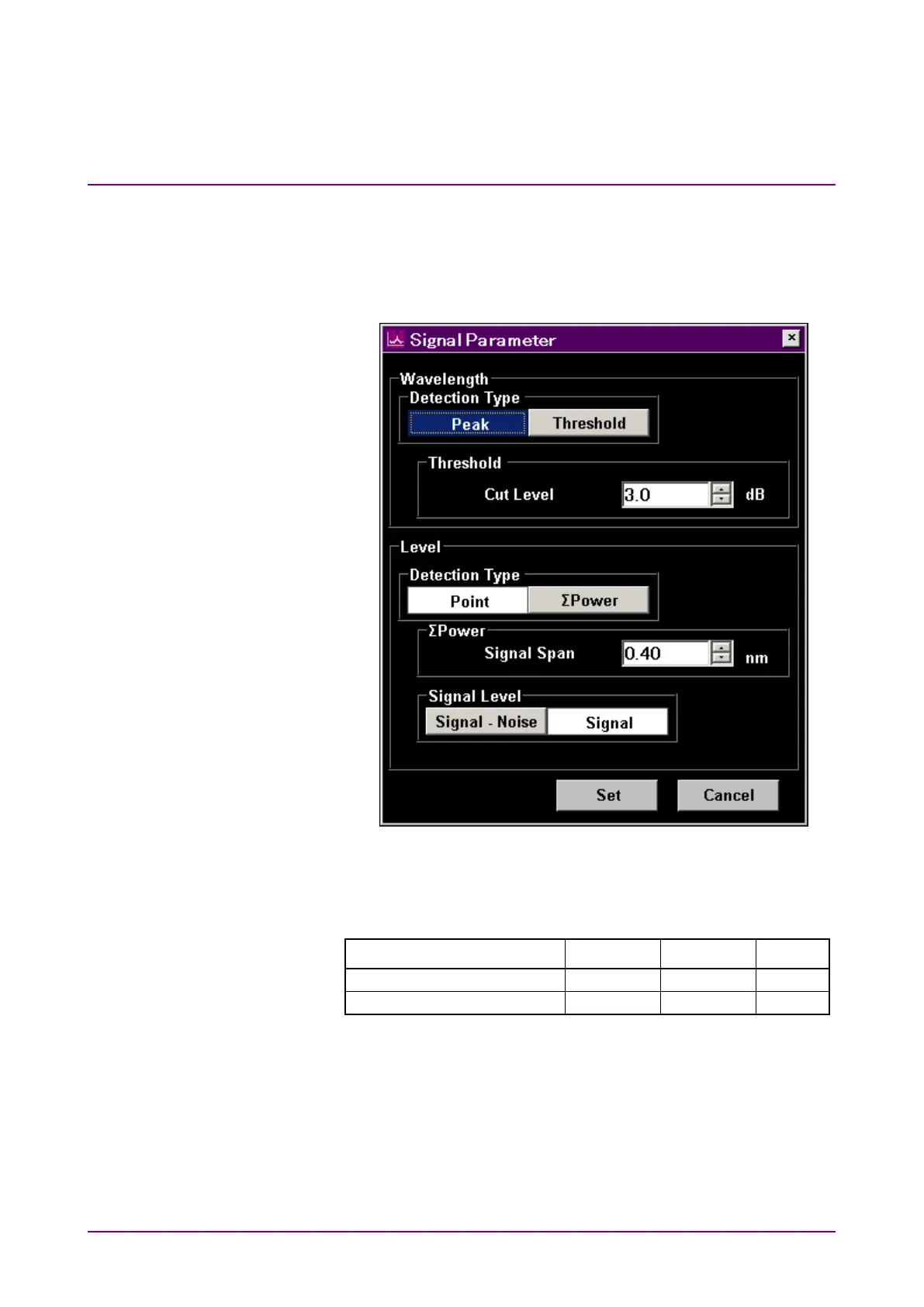

Figure 5.6.1-2 Signal Parameter Dialog Box
Table 5.6.1-1 Setting Range of the Parameters in the Signal Parameter
Dialog Box
Item Min. Max. Unit
Cut Level
0.1
50.0
dB
Signal Span
0.01
50.00
nm
Wavelength
Detection Type: Detection method for Signal wavelength
Peak: Wavelength peaks
Threshold: Center wavelength for Threshold analysis
Threshold Cut Level: Level differential from maximum which peaks
are detected as signal.
This value is effective when selecting Threshold at Detection Type.
Threshold Cut Level can be set in the range from 0.1 to 50.0.
