Prefix 102 103
Tag Country=England;City=London Holland;City=Amsterdam;Country=Belgium

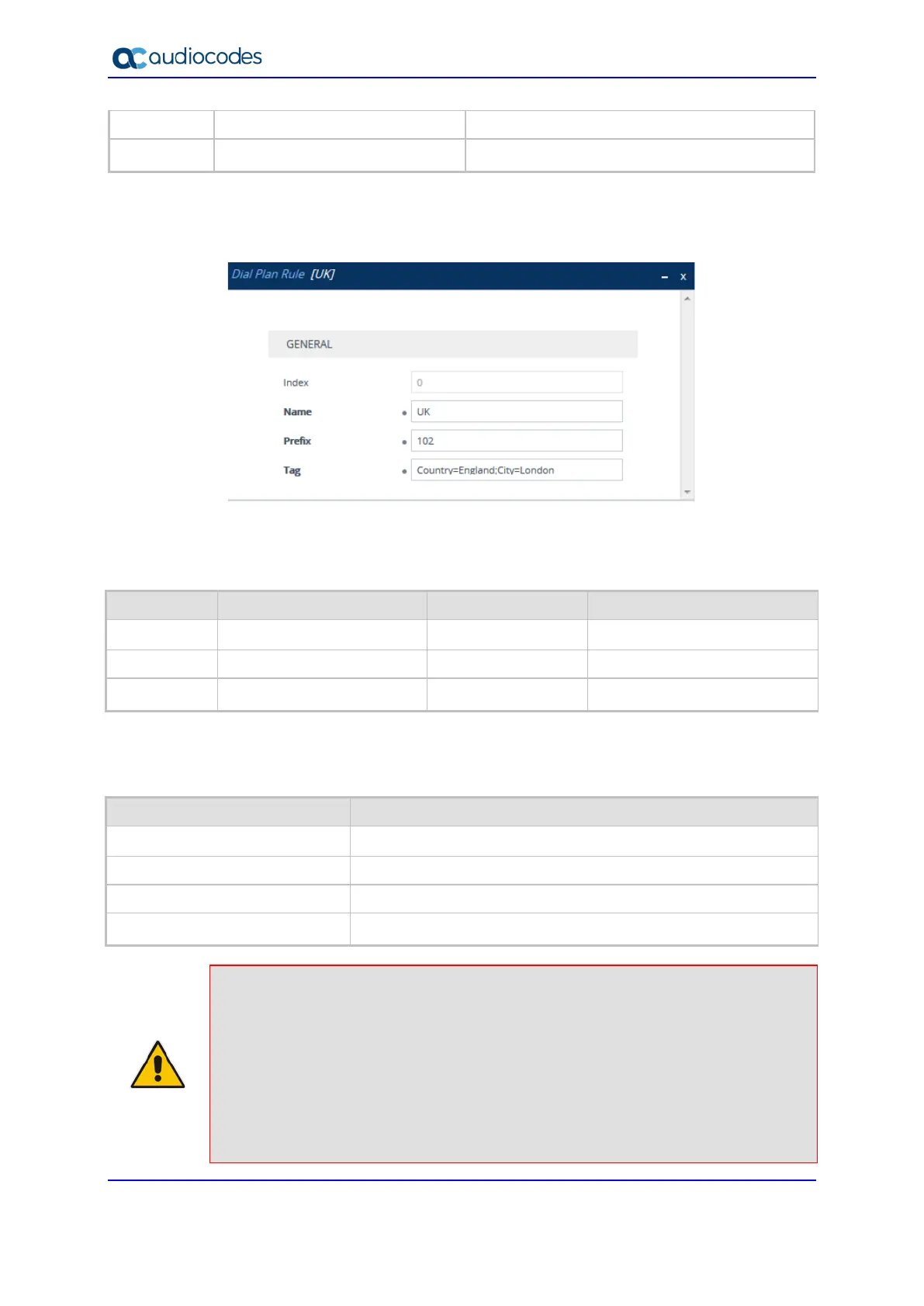

The following displays the configuration in the Web interface of the Dial Plan rule for Index
0:
Figure 37-8: Dial Plan configuration Example
2. In the IP Groups table, configure your IP Groups. Make sure that you assign the
source IP Group with the Dial Plan that you configured in Step 1 and that you
configure each destination IP Group with one of the required Dial Plan tags. If the tag
has a value, include it as well. In our example, we will configure three IP Groups:
Parameter Index 0 Index 1 Index 2
Name HQ ENG BEL
Dial Plan Dial Plan 1 - -
Tags - Country=England Country=Belgium
3. In the IP-to-IP Routing table, configure a routing rule where the 'Destination Type'
parameter is configured to Destination Tag and the 'Routing Tag Name' to one of
your Dial Plan tags. In our example, the tag "Country" is used:
Parameter Index 0
Name Europe
Source IP Group HQ
Destination Type Destination Tag
Routing Tag Name Country
Note:
• For configuring Dial Plan tags, see Configuring Dial Plans on page 726.
• Configure the 'Routing Tag Name' parameter with only the name of the tag (i.e.,
without the value, if exists). For example, instead of "Country=England", configure
it as "Country" only.
• If the same Dial Plan tag is configured for an IP Group in the IP Groups table and
an IP Group Set in the IP Group Set table, the IP Group Set takes precedence
and the device sends the SIP dialog to the IP Group(s) belonging to the IP Group
Set.
