5-76
Chapter 5. Functions
5 - 10 Application Examples
This section gives examples of applications that use the assignment function of this device.
Applications using the assignment function
This section gives examples of settings using Smart Loader Package model SLP-C1F.

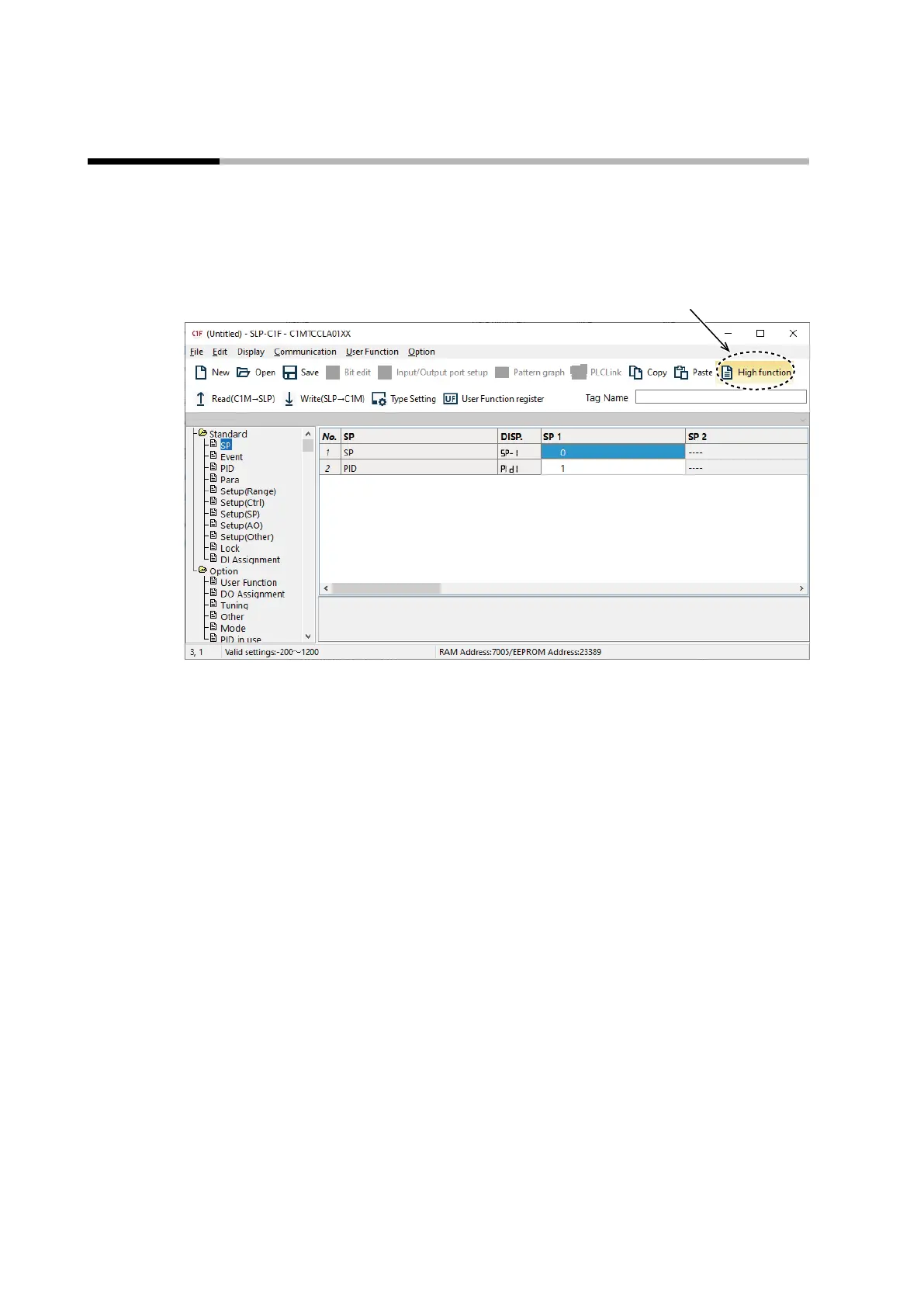

To use the assignment function, set the user level to “Advanced (High function)” first.
z
Example 1: Output OR of heater burnout and PV high limit alarm
Overview: Set the PV high limit for internal event 1.
Set heater burnout for internal event 2.
Output the OR of the above outputs to the EV1 relay.
(1) Select [Event] under [Standard] and set [1: PV high limit] for [Internal event1].
(2) In the same manner, set [16: Heater 1 burnout/overcurrent] for [Internal
event 2].
To Next Page
