Azbil C1M - Page 135

5-77
Chapter 5. Functions

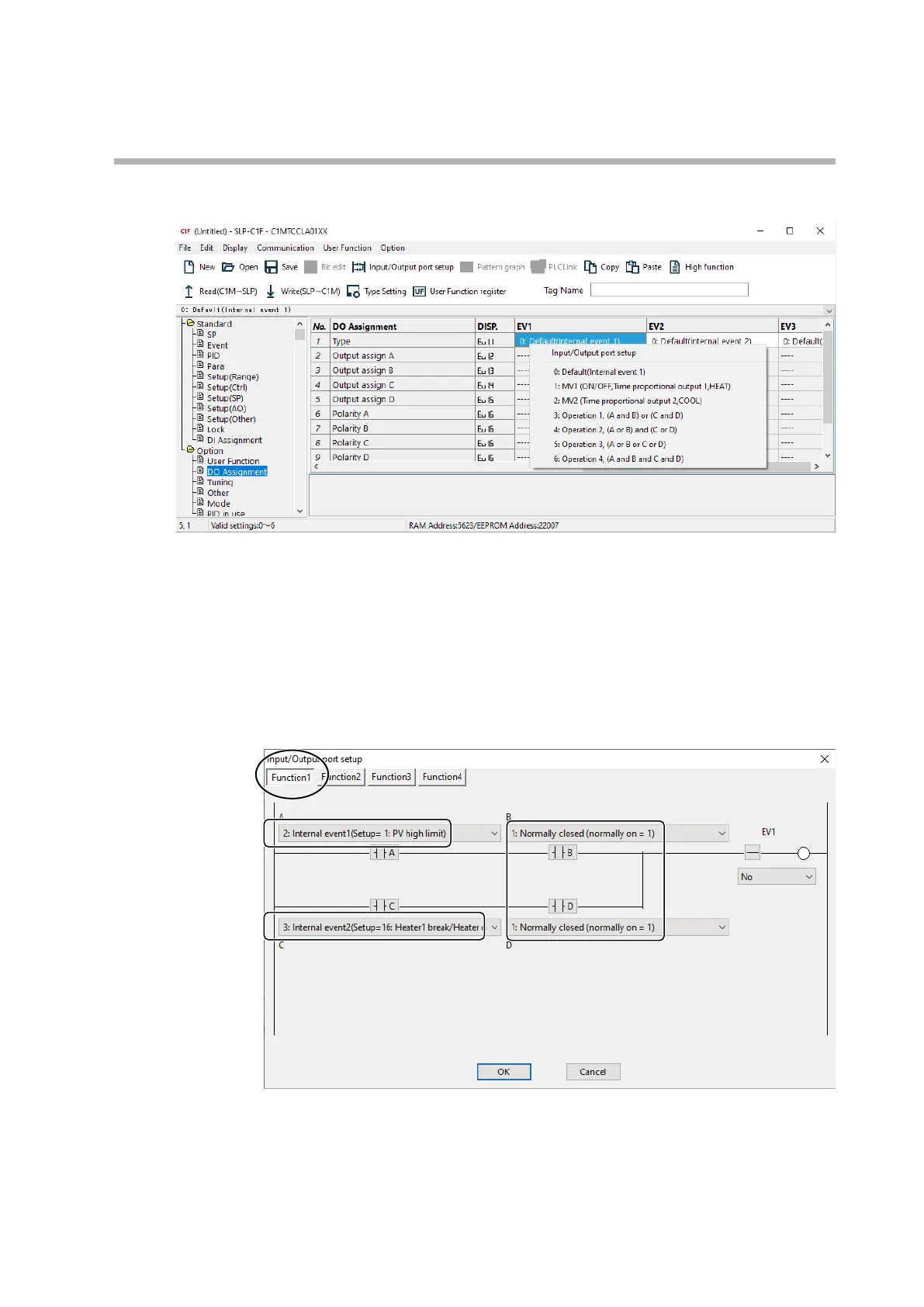

(3) Select [DO Assignment] under [Option], right-click the operation type field of
[EV1], and select [Input/Output port setup].
(4) On the [Input/Output port setup] screen, configure the settings as shown
below.
(A) Select [Function 1] to output the OR of two operations.
(B) Select [Internal event 1 (setting = 1: PV high limit)] for output assignmentA.
(C) In the same manner, select [Internal event 2 (setting = 16: heater 1
burnout/overcurrent] for output assignment C.
(D) Select [Normally closed (normally on = 1)] for output assignments B and D.
(A)
(B)
(C)
(D)
