Azbil C1M - Page 55

4-9
Chapter 4. Wiring
2. Omron’s G3PA, G3PE-_ _ _B, G3NA
• Input current:
Since the input current is 7 mA or less, up to three units (7 mA × 3 = 21 mA <
24mA [maximum allowable current]) can be connected in parallel.
• Operating voltage:
The rated voltage is 5–24 V DC or 12–24 V DC. Therefore, the voltage between
the terminals is within the specified range.
Voltage between terminals (three G3PA units)
= Voltage when open − Internal resistance × Total drive current
= 19 V DC ±15 % − 18 Ω ±0.5 % × 21 mA
≈ 16 to 21 V

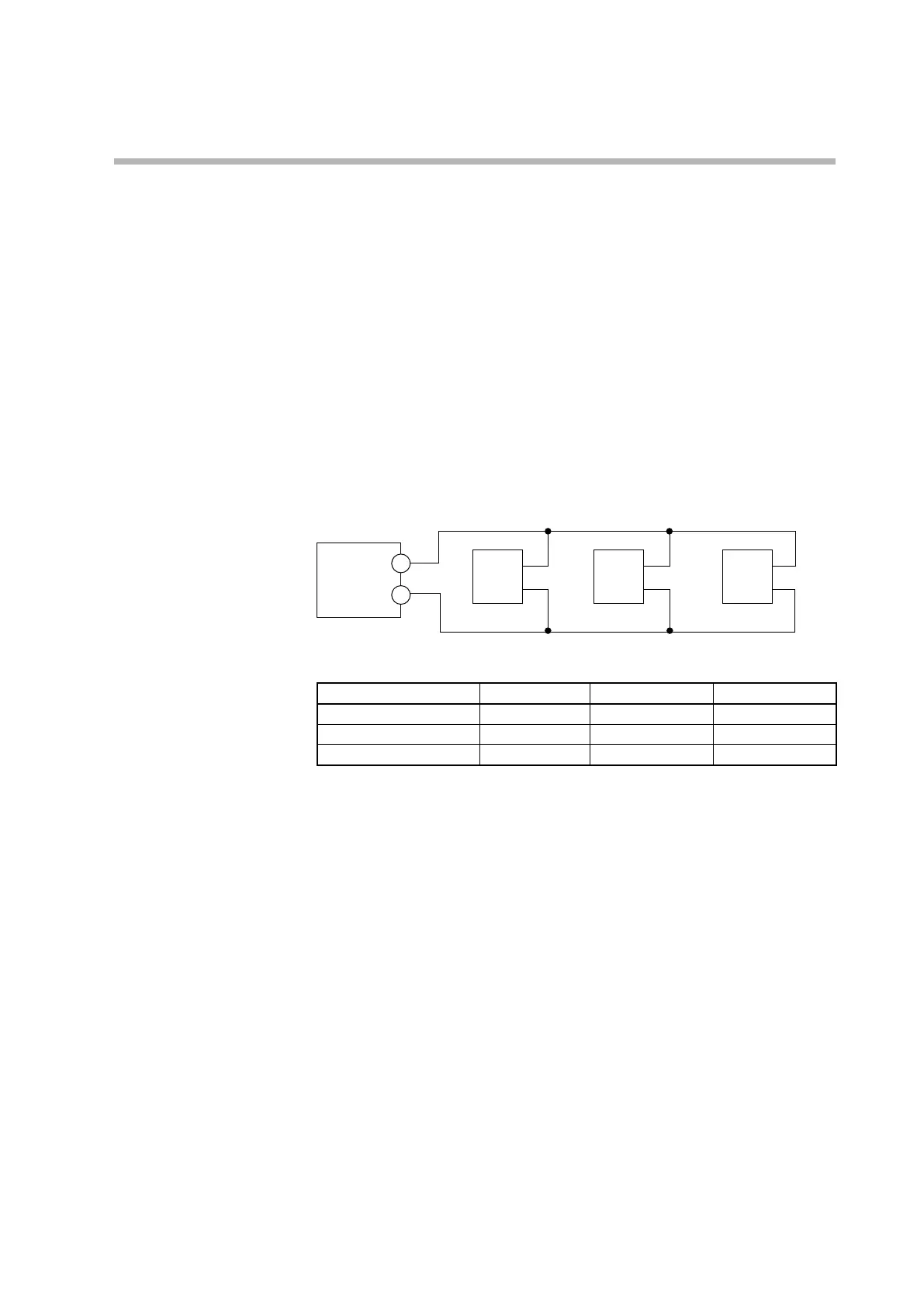

Connection diagram
Model C1M
G3PA G3PA G3PA
+
−
+
−
+
−
+
−
Number of connectable units
SSR Connection V0/VC model VV model
G3PA Parallel 3 units max. 6 units max.*
G3PE-_ _ _B Parallel 3 units max. 6 units max.*
G3NA Parallel 3 units max. 6 units max.*
* Three units per output
