Extra info: How the gyro works!

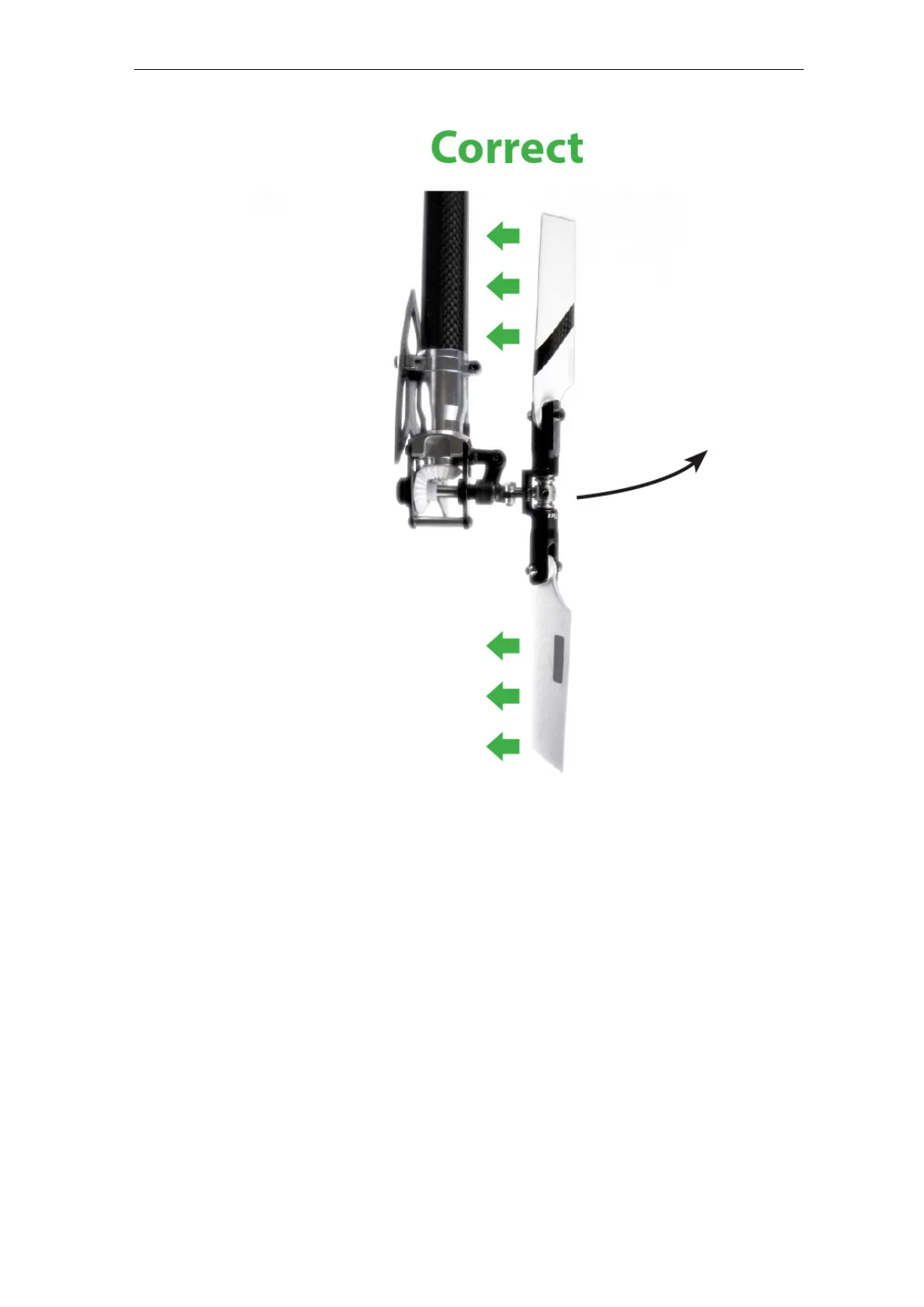

Figure 97 When moving the tail to the right by hand (nose of the heli to the left),

the gyro will steer to the right, so the tail is pushed back to the left.

110
