16 Standard receiver
A conventional receiver with multiple servo output connectors is what we consider a ”Stan-
dard receiver”. Here you connect each output to one control function of MICROBEAST
PLUS by using one connection wire for each function. The 5 control functions (wires)
are: Aileron, Elevator, Rudder, Collective pitch and Gyro gain. Connect each wire to the
corresponding servo output at the receiver which you like to use for the specific function.
If you don't know which stick controls which channel have a look at your radio's servo
monitor, refer to your radios instruction manual or simply connect a servo to each channel
testwise!

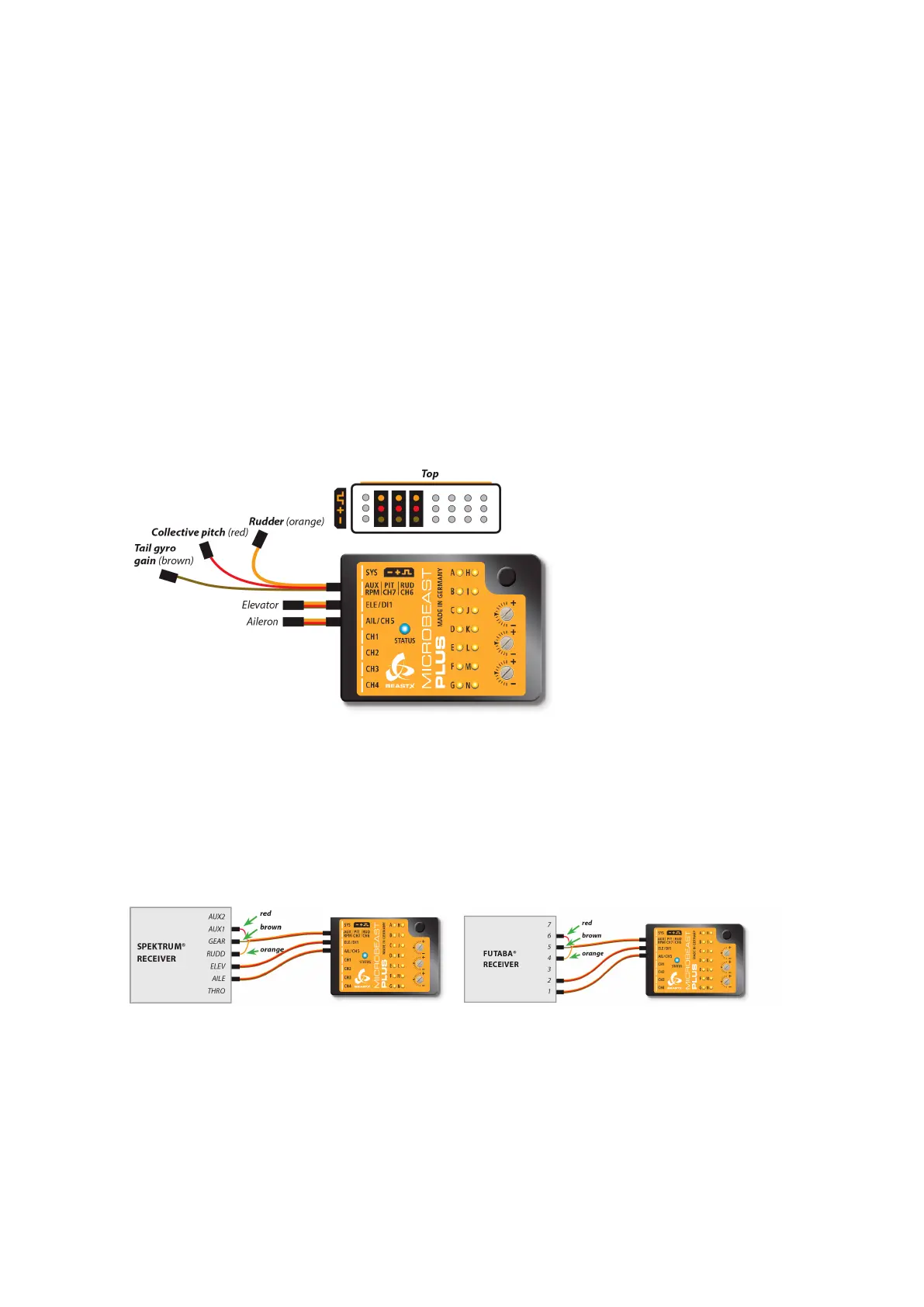

Figure 43
Here we show connection layouts for two common radio brands. Note that this is only
exemplary, the channel output of your transmitter can by different even when using a radio
of this brand. And you can use any radio system on the market, not only these two brands!
Figure 44
Figure 45
