Hardware installation

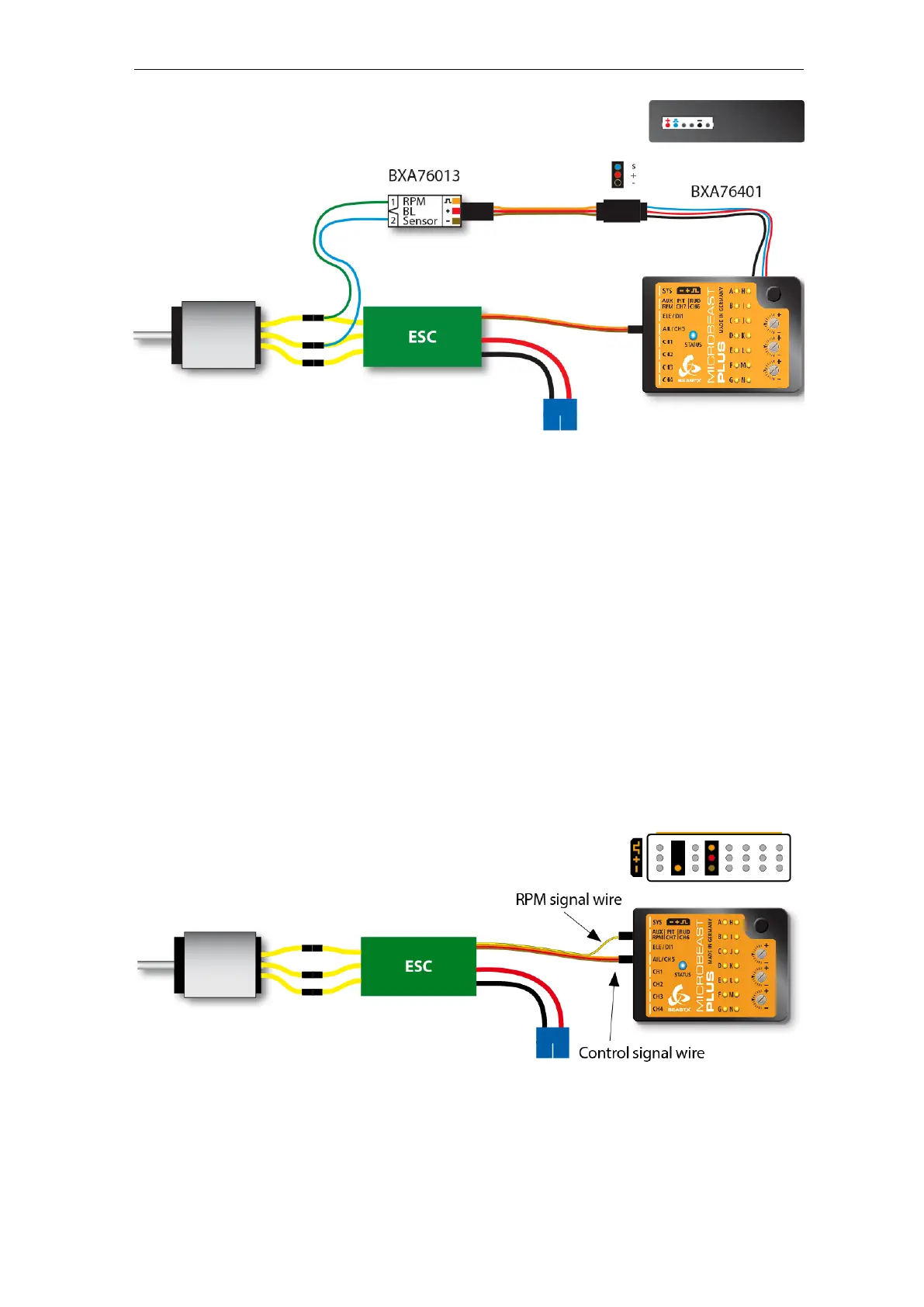

Figure 107
78.2 Electric drive system with rpm signal output from the
speed controller
When a speed controller is used that provides a rpm signal output you can alternatively
use the [RPM] sensor input on the front connection board of MICROBEAST PLUS (lowest
pin of the tripple signal input). (RPM sensors can‘t be connected here as this pin header
does not provide any power supply!) The speed controller‘s signal input wire is plugged
into the output [CH5] as usual.
Figure 108
172
