21 Preparing the radio system
You can use nearly any transmitter that provides at least 6 channels. By default 5 channels
are used for controlling MICROBEAST PLUS and one channel controls the motor. If
using additional features like AttitudeControl or RPM Governor a receiver with single wire
output and more channels may be useful to have, but this is not a must.
• Create a new model in your radio‘s model memory.

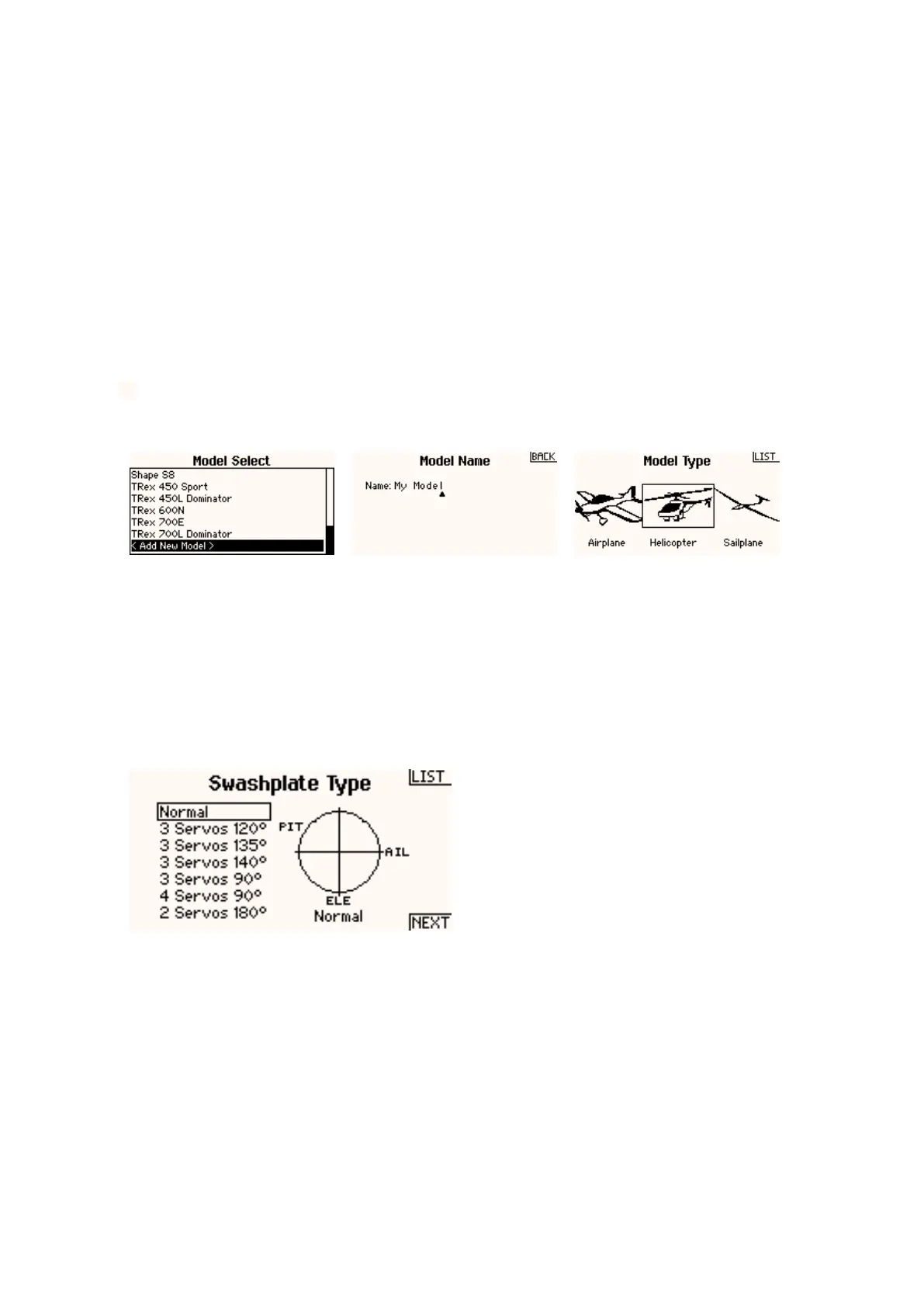

Figure 57 Figure 58 Figure 59
• Never enable your radio‘s eCCPM mixing function! Disable any mixing functions for the
swashplate or rudder. Each function should be assigned to just one receiver channel. All
the swashplate mixing will be done by MICROBEAST PLUS. Set your radio‘s swash
mixer to mCCPM (mechanical mixing) which is often called “H1”, “1 servo” or “normal“
mixing or disable “swash mixing” if applicable.
Figure 60
• Be sure that all trims and sub trims are disabled and that all servo travels are set to 100%
in any flight mode. There mustn't be any active mixing functions (for example rudder
revo-mixing). Have a look at the radio’s servo monitor: each stick has to control one
45
