49 SETUP MENU G - Collective and
cyclic pitch mixing (CCPM)
This page is a translated version
1
of the page Manuals:MBPlusFblV52:Setupmenu G
2
and
the translation is 100% complete.

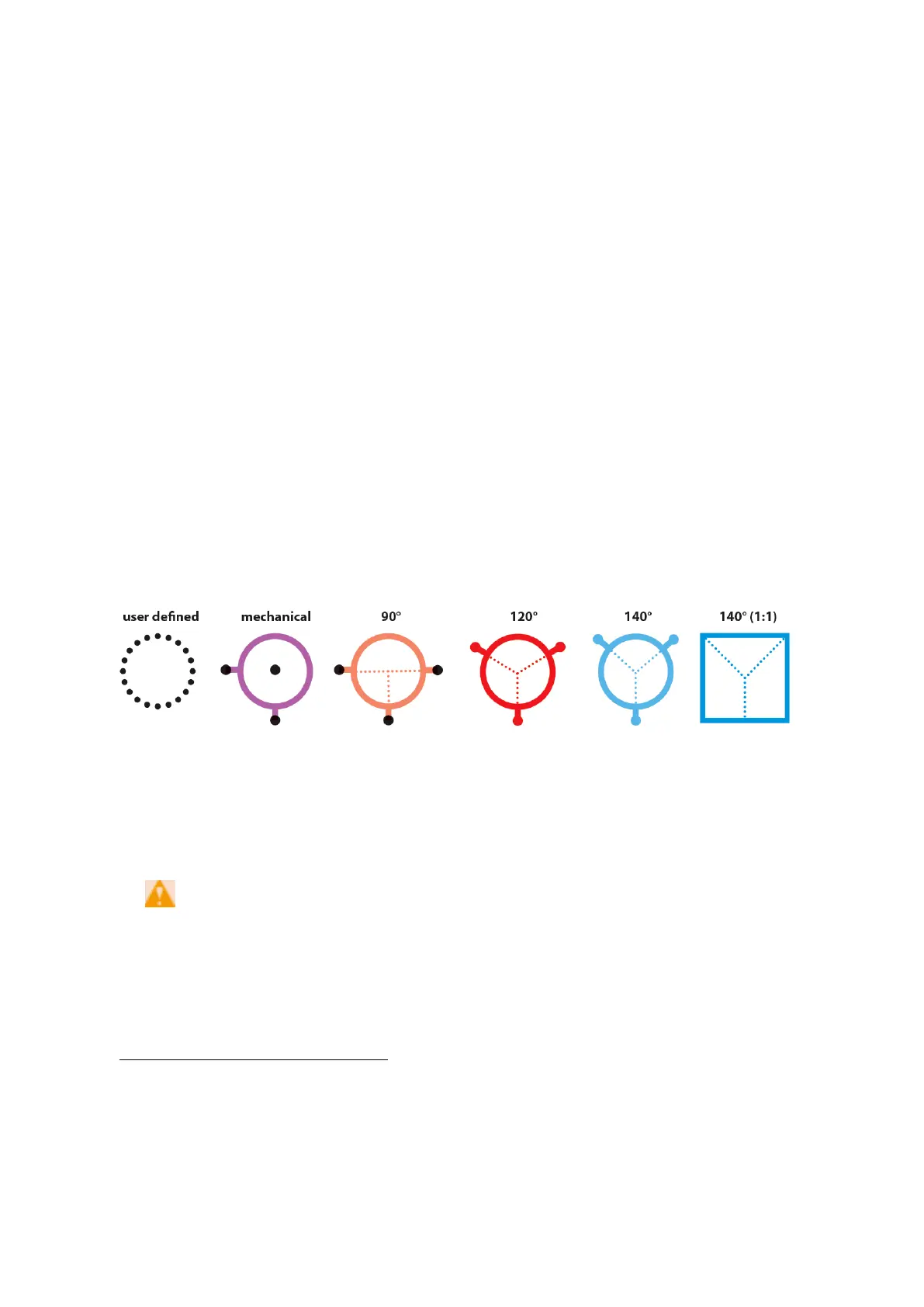

At SETUP MENU point G you have to choose the electronic mixing type for the swashplate
servos or select “no mixing“ for switching off the mixing in case your helicopter has a
mechanical swashplate mixer. For the electronic mixer you can choose one of the presets for
90°, 120° and 135°/140° swashplates that are suitable for most helicopters on the market.
Also you can set nearly any other kind of swash mixing and swash geometry with the
StudioX app if required. When you're using a multiblade rotorhead that requires to adjust
the swash phasing electronically this can be done with the StudioX app as well.Which kind
of CCPM your helicopter uses can be read in the manual for your helicopter.
Figure 99
Never set any kind of swash mixing in your transmitter even when electronic mixing
is required! Deactivate the swashplate mixing in your transmitter or set it to mechanical
mixing (which is often called “normal“, “H1“ or ”1 servo“ mixing), so that each stick
function only moves one receiver output channel. The swashplate mixing is all done by
MICROBEAST PLUS!
