64 SETUP MENU K - Cyclic throw
This page is a translated version
1
of the page Manuals:MBPlusFblV52:Setupmenu K
2
and
the translation is 100% complete.
At SETUP MENU point K we adjust the internal servo throw so that MICROBEAST
Plus has a reference on how far it must move the servos when controlling the helicopter.
To set the throw, you align one rotorblade on the longitudinal axis (in parallel to the tail
boom) and measure the cyclic pitch with a digital pitch gauge on this rotorblade. (You
can do this from the front or from the rear!)

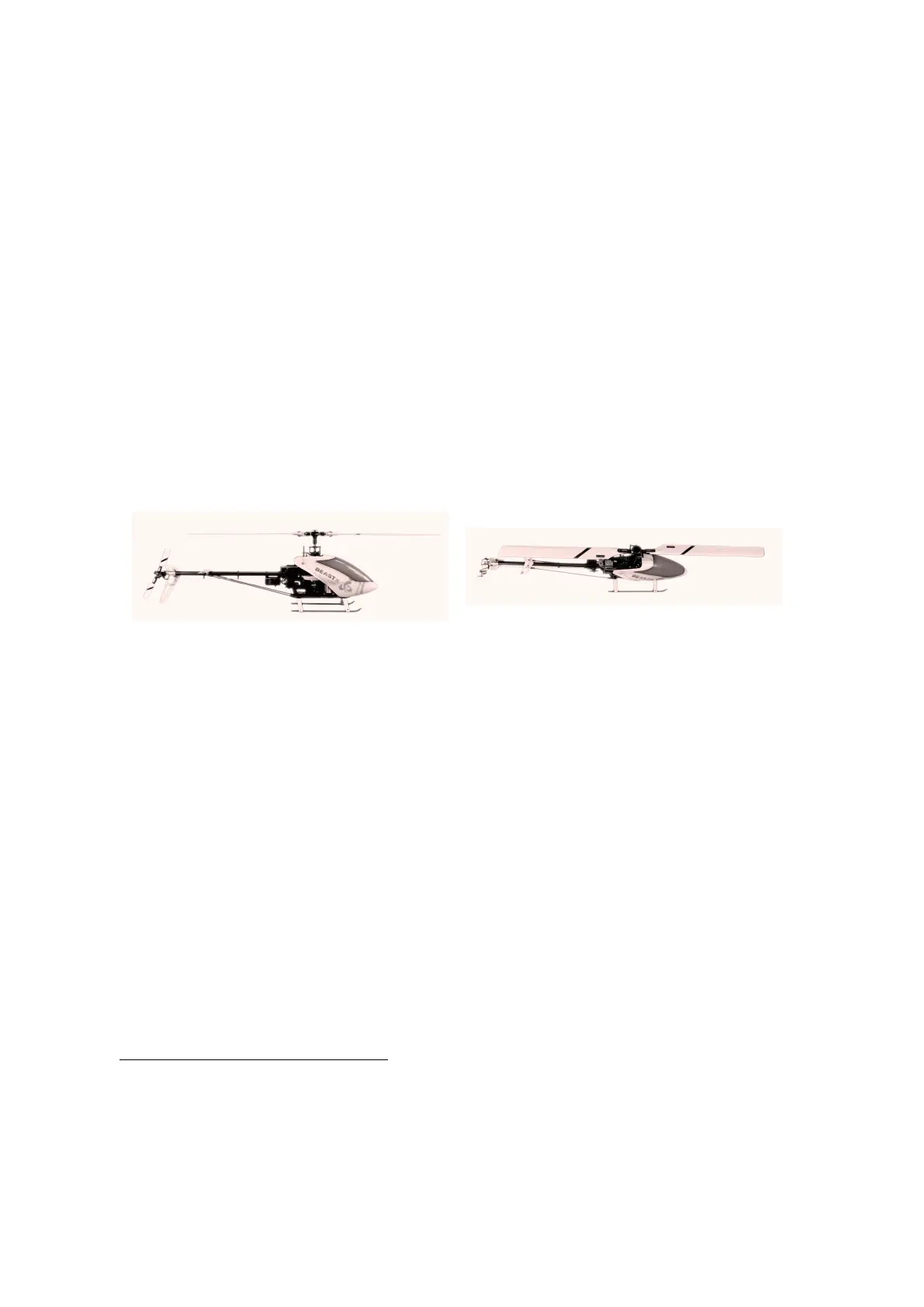

Figure 105
Figure 106
Initially you should see 0 degrees of pitch now (in case you did the setup at SETUP
MENU point J properly!). Then you switch to the adjustment position. The system will
give some amount of pitch which you measure again. This time you should see 6.0 de-
grees (+ or - is not of importance). If not, increase or decrease the swash throw accordingly.
The color of the Status LED gives some indication whether you rotorhead geometry is well
suited for flybarless usage or not. Ideally the Status LED on the device should be blue
when in 6.0 degress position. If it isn't, this means your servo movements cause very much
pitch deflection on the rotorhead. This can be bad for the performance as the system may
tend to oversteer and overreact very easily. If you have problem with finding correct gain
settings or overcompensation later in flight, the cause may be found here. To solve this
you can change geometry by moving the linkage balls on the servo horns closer to the servo
1
