18 Remote satellite (Spektrum®
DSM/JR® DMSS/ALIGN® iBus)
A special type of single-line receiver is the remote satellite. These receivers usually serve
as additional receiving unit in combination with a (bigger) main receiver to provide a
more robust and fail safe radio system. With MICROBEAST PLUS you can use such
receivers as stand alone receiving unit to achieve a small and light weight radio system for
small sized rc models. MICROBEAST PLUS supports the following systems: Spektrum®
DSM2, Spektrum® DSMX, JR® DMSS and ALIGN® iBus. The remote receiver can
be directly connected to the white pin board at the side of MICROBEAST PLUS. Here
the receiver will be powered with a stabilized voltage of 3.3 Volts. Alternatively if you
own the optional available Spektrum® satellite adapter (Order Nr. BXA76009) you can
connect the receiver at the front pin board to the [DI1] digital input, just like most other
single-wire receivers. This allows to keep the white pin board free for connecting a sensor.
Please note: MICROBEAST PLUS does not support connecting more than one remote
satellite at a time!

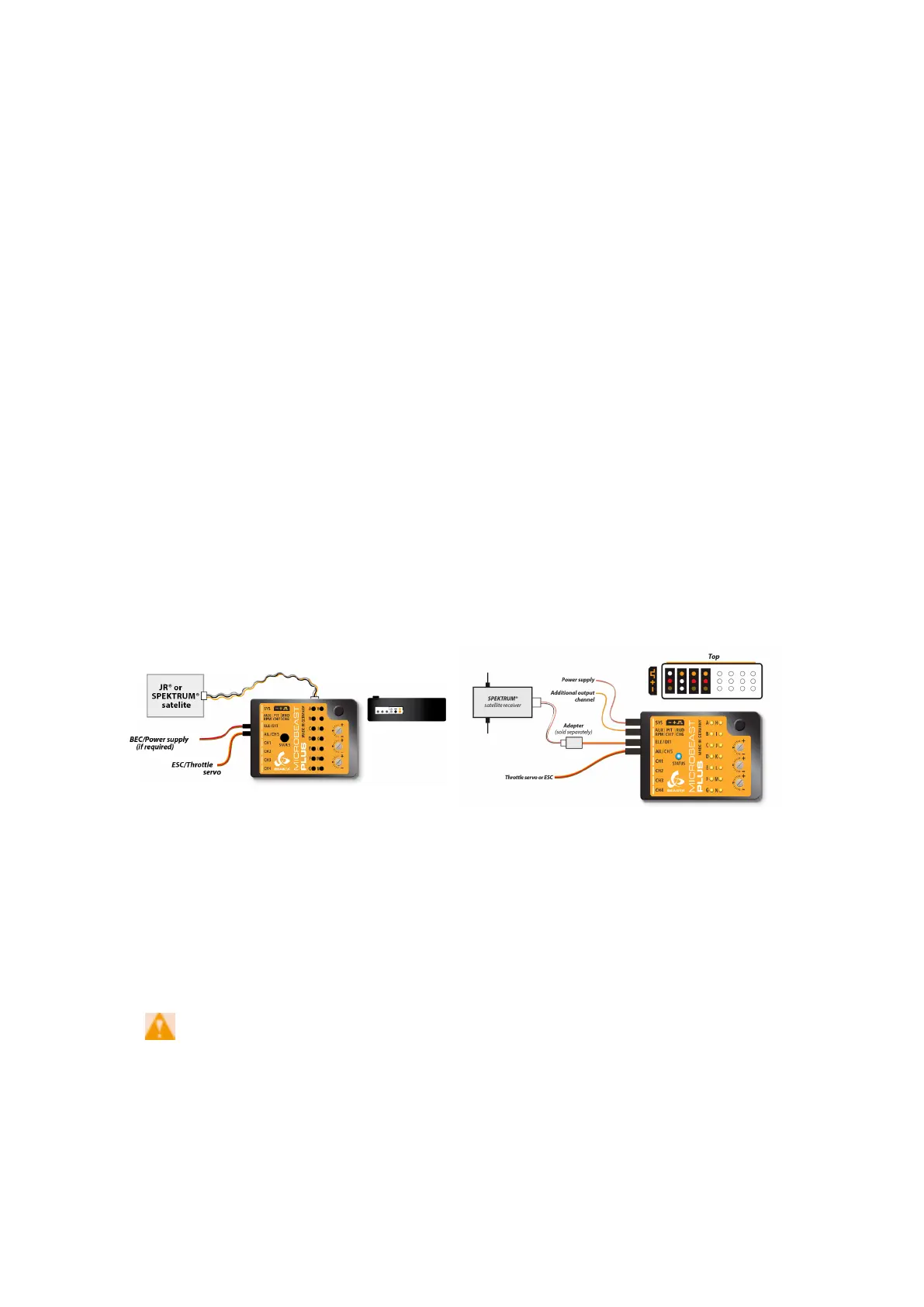

Figure 48
Figure 49
JR®/Spektrum® remote satellite connected at side pin board JR®/Spektrum® remote satellite connection with power adapter
When using a speed controller with BEC, the power will be distributed from [CH5] input to
receiver and servos. Alternatively or additionally you can connect a power supply/second
BEC wire/buffering battery to the [SYS] port.
Using a remote satellite is only recommended for small rc modells like
helicopters of 450 size or smaller. Due to the design, one single receiving unit is
more prone to radio interference and can result in reduced transmission range.
