How to control the Governor

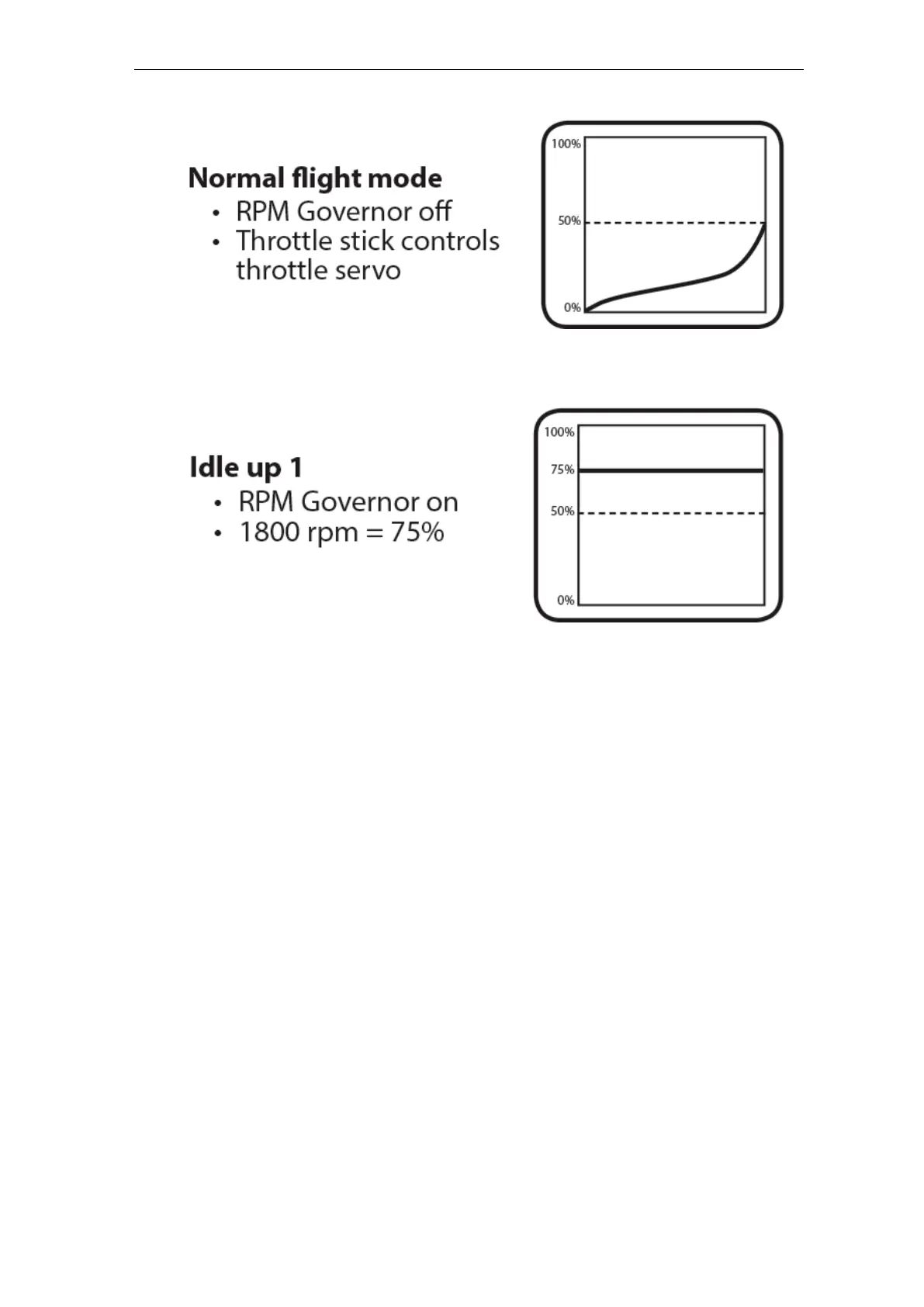

Figure 120
Figure 121
A third flight mode can be used for performing autorotation maneuvers: Here the throttle
channel must be set to a constant value close below center position (between 40% and
50%). When you switch to this position once the governor was active, the throttle servo
will be moved to the idle position set at menu point B. When switching back to governor
mode, i.e. when you want to bail out from autorotation, the rotor will be spooled up at an
increased rate. Alternatively if it is switch back to the flight phase with manual control,
Autorotation mode is canceled and the next time you switch on the Governor, the rotor is
spooled up slowly.
206
