Beastx MICROBEAST PLUS - Page 50

Spektrum® SRXL2 receiver
for an extra adapter.

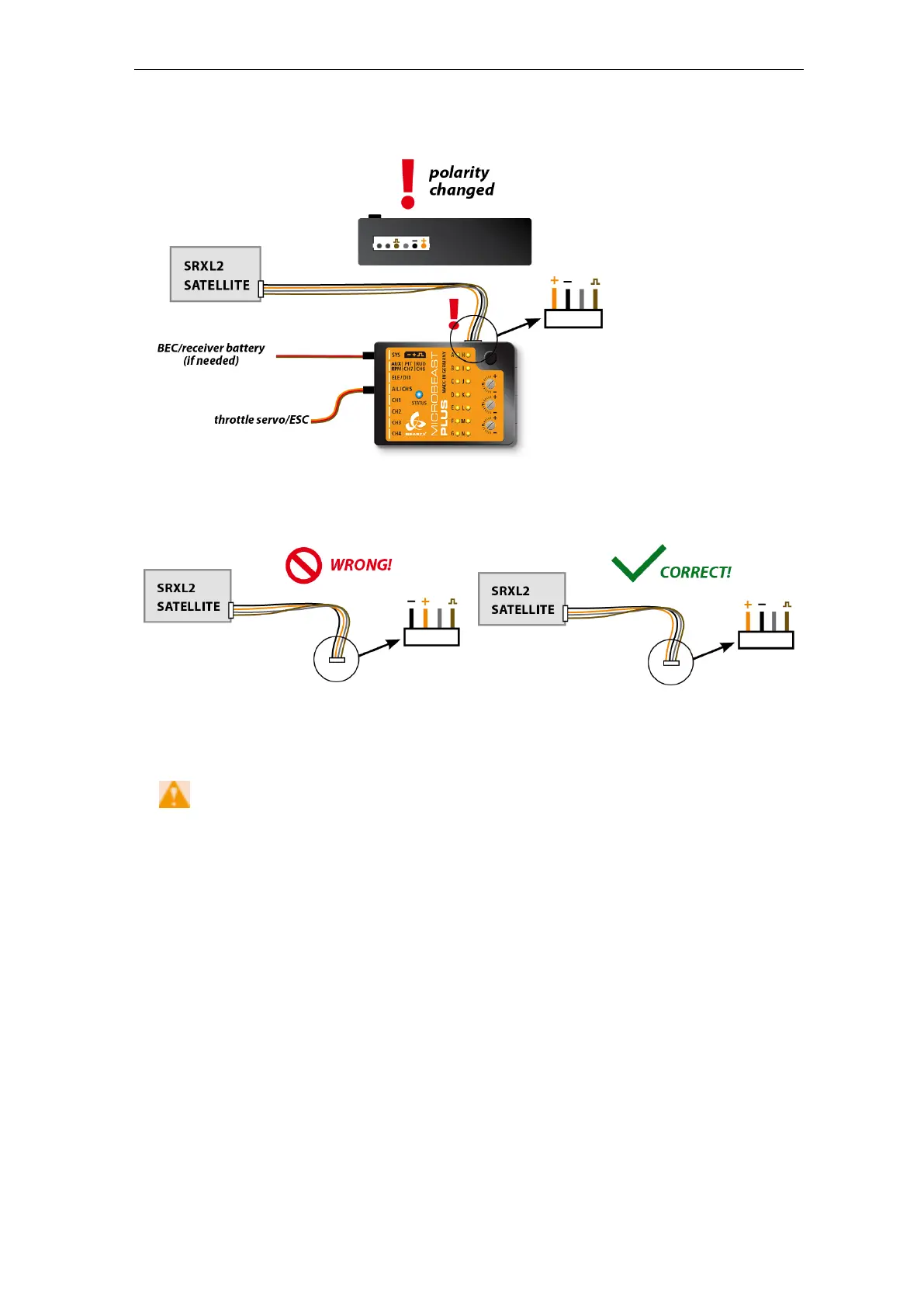

Figure 52
SRXL2 satellite receiver with modified satellite connector
Figure 53
Figure 54
Never connect the 4-wire receiver connector to MICROBEAST PLUS in
wrong polarity! This will damage your receiver immediately! Check polarity
at least twice before connecting the receiver to MICROBEAST PLUS. It is up to you to
make sure polarity is correct. We do not assume any liability in case you do it wrong.
42
