Spektrum® DSM2/DSMX receiver binding
to use this type of receiver. Remove the bind plug and proceed with the setup as described
in the following of this manual.

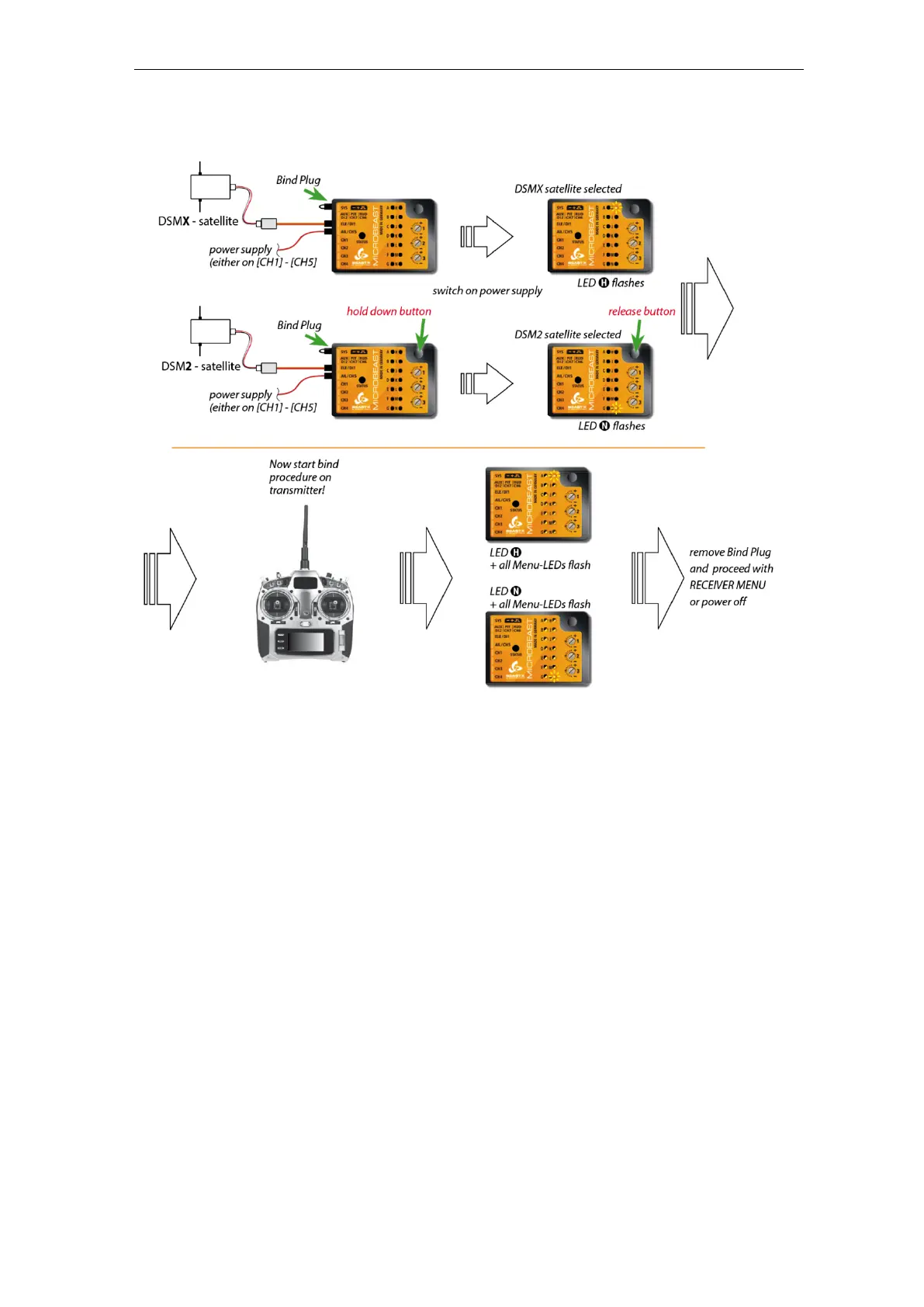

Figure 68
Note:
• Decisive for the selection alone is, which type of satellite receiver is plugged in! It is
irrelevant which transmission method between the receiver and transmitter is actually
used. Check carefully what type of receiver you have and what type you setup. An
incorrect setting is not obvious but will lead to malfunction or failure of the radio link
later in use.
• It makes no difference if you pull off the “Bind Plug” during the binding process or leave
it connected as you would expect from some “standard” Spektrum® receivers!
50
