Cisco 500 Series Administration Guide

Security: SSH Client
Protection Methods
547 Cisco 500 Series Stackable Managed Switch Administration Guide
24
When files are downloaded via TFTP or HTTP, the data transfer is unsecured.
When files are downloaded via SCP, the information is downloaded from the SCP
server to the device via a secure channel. The creation of this secure channel is
preceded by authentication, which ensures that the user is permitted to perform
the operation.
Authentication information must be entered by the user, both on the device and on
the SSH server, although this guide does not describe server operations.

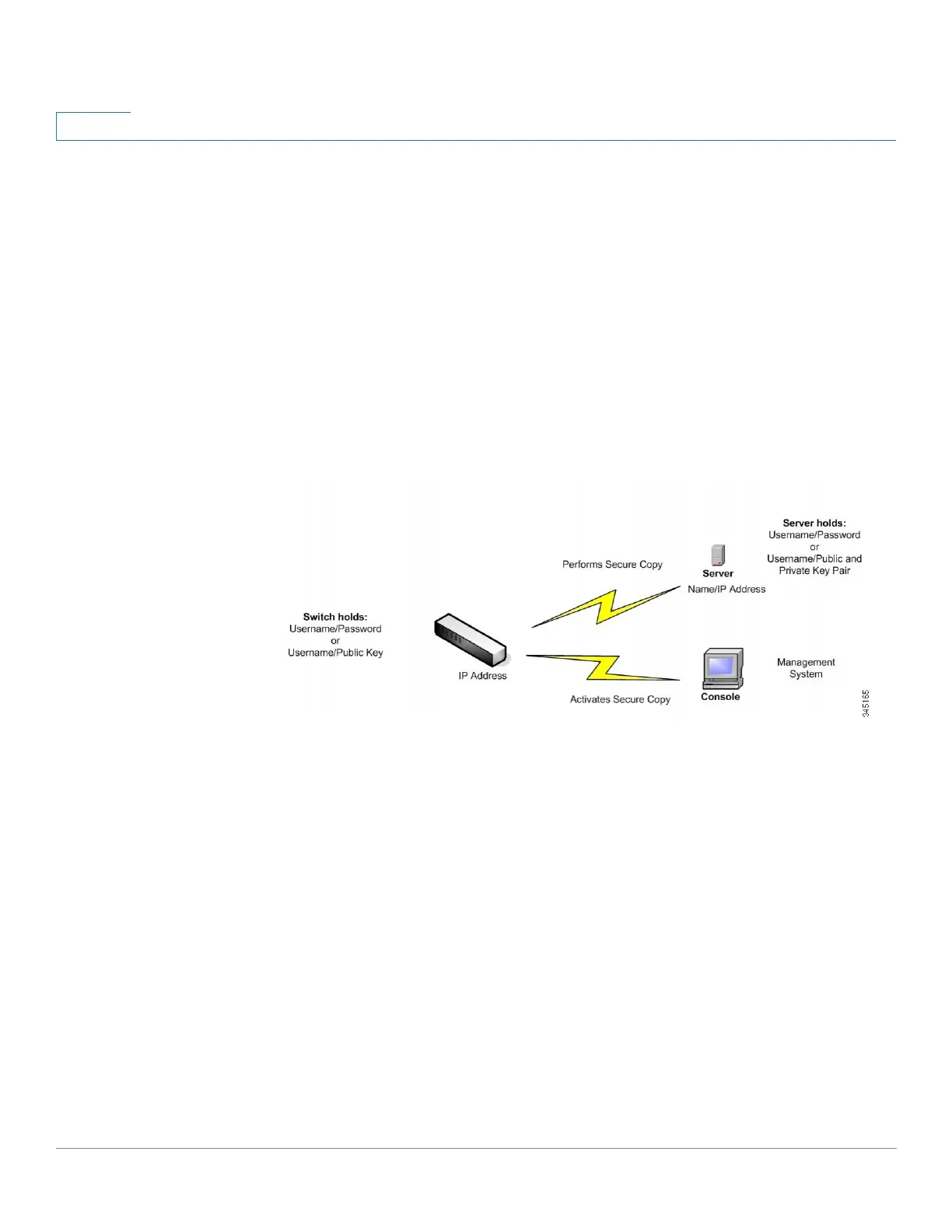

The following illustrates a typical network configuration in which the SCP feature
might be used.
Typical Network Configuration
Protection Methods
When data is transferred from an SSH server to a device (client), the SSH server
uses various methods for client authentication. These are described below.
Passwords
To use the password method, first ensure that a username/password has been
established on the SSH server. This is not done through the device’s management
system, although, after a username has been established on the server, the server
password can be changed through the device’s management system.

Cisco 500 Series Specifications

General

Model	Cisco 500 Series
Category	Switch
Mounting	Rack-mountable
Management	Web-based, CLI, SNMP
Ports	24, 48
Port Speed	10/100/1000 Mbps
PoE Support	Available on some models
Switching Capacity	Up to 176 Gbps
MAC Address Table Size	16, 000 entries
Security	ACLs, 802.1X
Quality of Service (QoS)	Yes
Dimensions	Varies by model
Weight	Varies by model
Humidity	10% to 90% non-condensing
Power Supply	Internal
Power Consumption	Varies by model
Jumbo Frame Support	Up to 9216 bytes
