Administration: Stack Management
Stack Topology
75 Cisco 500 Series Stackable Managed Switch Administration Guide
5

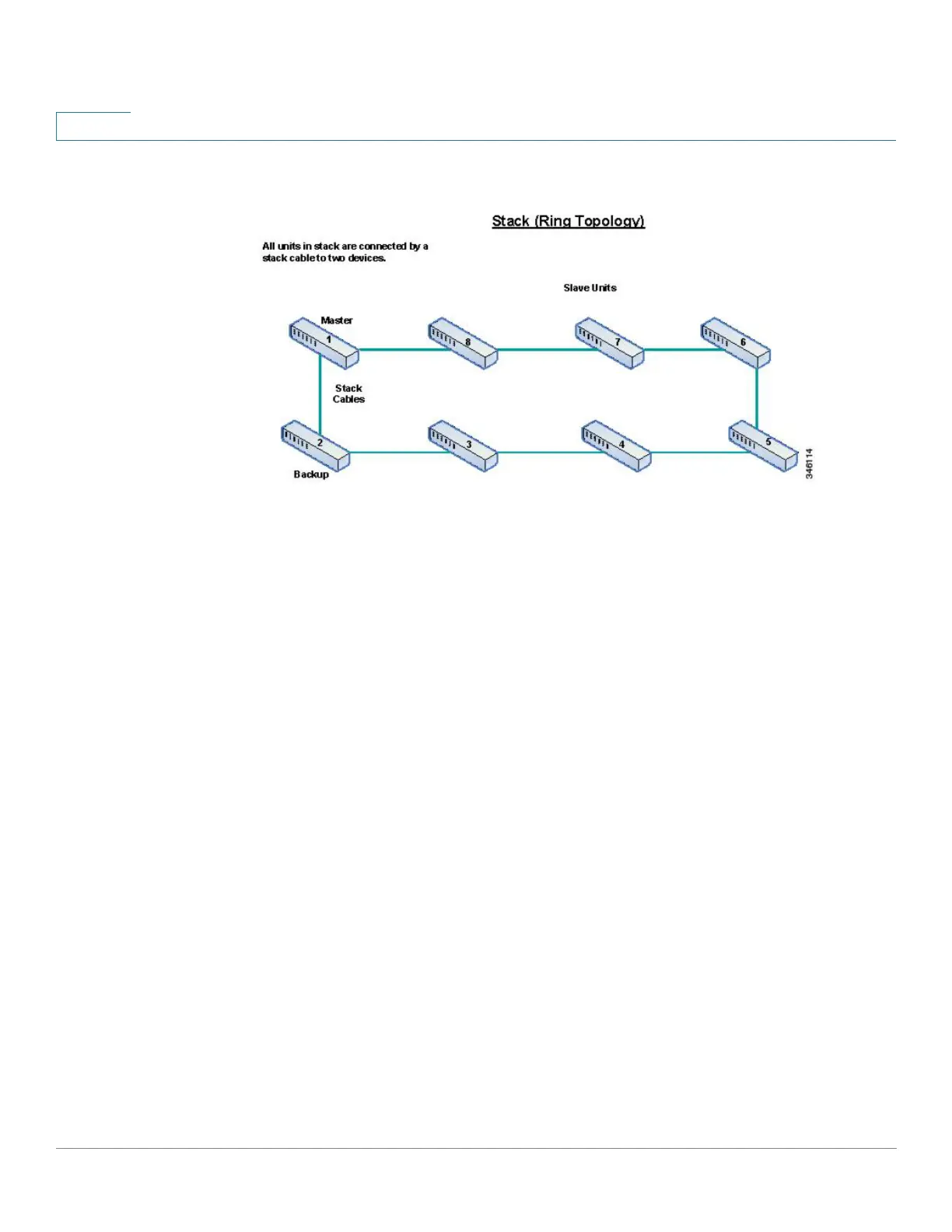

Stack in Ring Topology
A ring topology is more reliable than a chain topology. The failure of one link in a
ring does not affect the function of the stack, whereas the failure of one link in a
chain connection might cause the stack to be split.
Topology Discovery
A stack is established by a process called topology discovery. This process is
triggered by a change in the up/down status of a stack port.
The following are examples of events that trigger this process:
• Changing the stack topology from a ring to a chain
• Merging two stacks into a single stack
• Splitting the stack
• Inserting other slave units to the stack, for instance because the units were
previously disconnected from the stack due to a failure. This can happen in
a chain topology if a unit in the middle of the stack fails.
During topology discovery, each unit in a stack exchanges packets, which contain
topology information.
After the topology discovery process is completed, each unit contains the stack
mapping information of all units in the stack.
