Chapter 5 Web GUI Setup and Monitoring
5 In the Revertive Delay field, set the time to wait when reverting back to the
primary port once all the triggers for the primary port are back to normal again,
in a range from 0 to 30 seconds.
Note: If Non-Revertive is selected as the Type, this field does not apply.
6 In the Trigger area, check the program-related conditions that will trigger the
MPEG over IP input redundancy switchover to the backup port. Check the AV
Loss, PMT Loss, or PCR Loss check box to detect the status of the audio/video,
PMT, or PCR loss for the program entry being decoded.
The Link Loss and TS Loss check boxes are non-editable. By default, Ethernet
(Link) loss and transport stream loss will always trigger a redundancy
switchover to the backup port.
Note: If Revertive is selected as the Type, and all the triggers are selected, it will
failover to the backup port when any of the triggers occur and the backup port
has valid content. However, it will not attempt to revert back to the primary port
when the primary port is available again. It will remain on the backup port. This
avoids the constant switching between the two ports since the incoming packet
streams cannot be validated until the switch is made.
7 Click Apply.
Viewing the Current IP Input Status

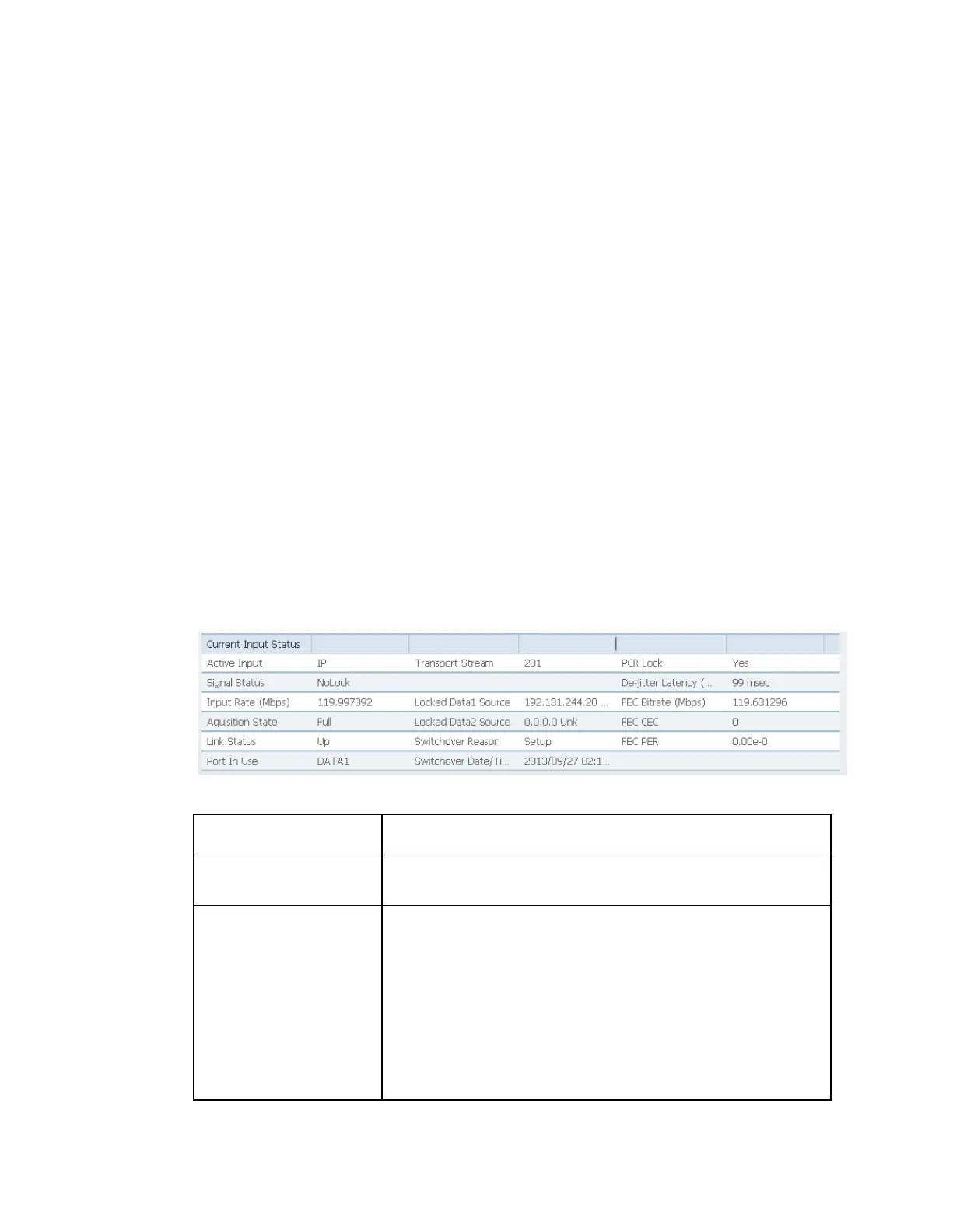

The Current Input Status area displays the current IP status. The following is an
example:
The following table describes the Current Input Status information displayed:
Indicates the currently selected input source (RF1, RF2, RF3,
RF4, ASI, or IP).
Indicates whether the input signal is locked.
Locked - Indicates the receiver is locked to a carrier
with no valid content.
Lock+Sig - Indicates the receiver is locked to a carrier
with valid content.
No Lock - Indicates the receiver is not locked to a
carrier.
