5-17
Cisco D9865 Satellite Receiver Software Version 2.20 Installation and Configuration Guide
OL-31085-01
Chapter 5 Setup and Monitoring via Web GUI
Setting up the Tuning Presets/LNB
Setting up the Tuning Presets/LNB
The Tuning Presets page allows you to select or configure up to 64 network presets. Your receiver may
be shipped pre-configured with a number of network presets. You can configure the network preset to
use one of 10 LNB configurations.
Proceed as follows to set up the Tuning Preset/LNB:

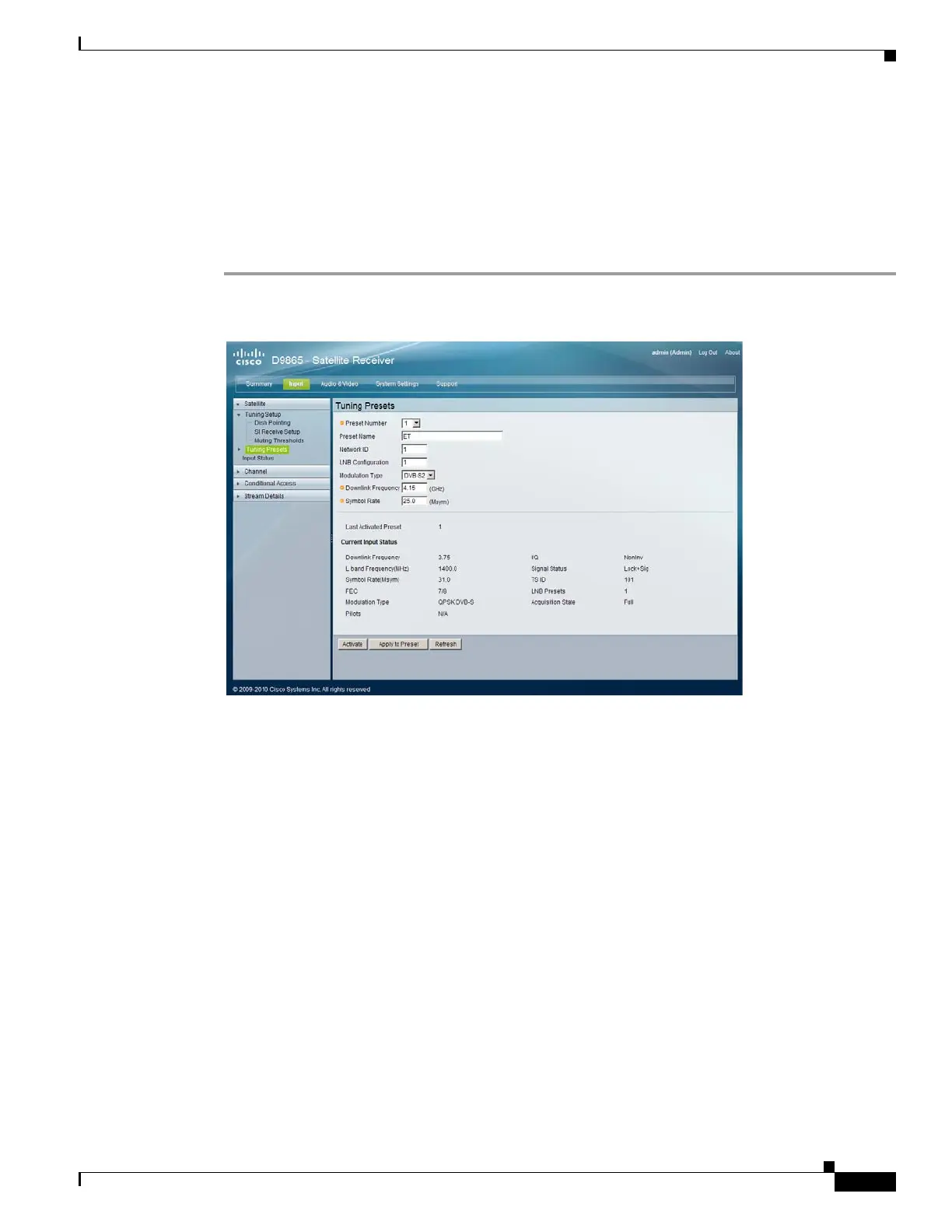

Step 1 From the user interface of the D9865, choose Input > Satellite > Tuning Presets. The Tuning Presets
page is displayed.
Step 2 From the Preset Number drop-down list, choose a value in the range from 1 to 64.
Step 3 In the Preset Name field, enter the preset network name.
Step 4 In the Network ID field, enter the network ID obtained from your service provider.
Step 5 In the LNB Configuration field, enter the LNB configuration value, in the range from 1 to 10.
Step 6 From the Modulation Type drop-down list, choose the modulation type for the received signal (DVB-S
or DVB-S2).
Step 7 In the Downlink Frequency field, enter the downlink frequency used by the receiver for tuning the
received digital signal. You can enter a value in the range from 0.0 to 15.0 GHz. The formula for C-Band
is: Downlink Freq = LO Freq - L-Band Freq. The formula for Ku-Band is Downlink Freq = LO Freq +
L-Band Freq.
Step 8 In the Symbol Rate field, enter the symbol rate that matches the transmitted signal. You can enter a value
in the range from 1.0 to 45.0 MS/s for DVB-S or 1.0 to 31.0 MS/s for DVB-S2.
Step 9 The Last Activated Preset field displays the number of the last activated preset.
Step 10 The Current Input Status area displays the current RF Tuning Status information, including the
downlink frequency and signal status.
Step 11 Click Apply to Preset to apply the settings to the receiver.
