Chapter 5 Setup and Monitoring via Web GUI
Setting up the Video
Setting up Audio
Proceed as follows to set up the audio:

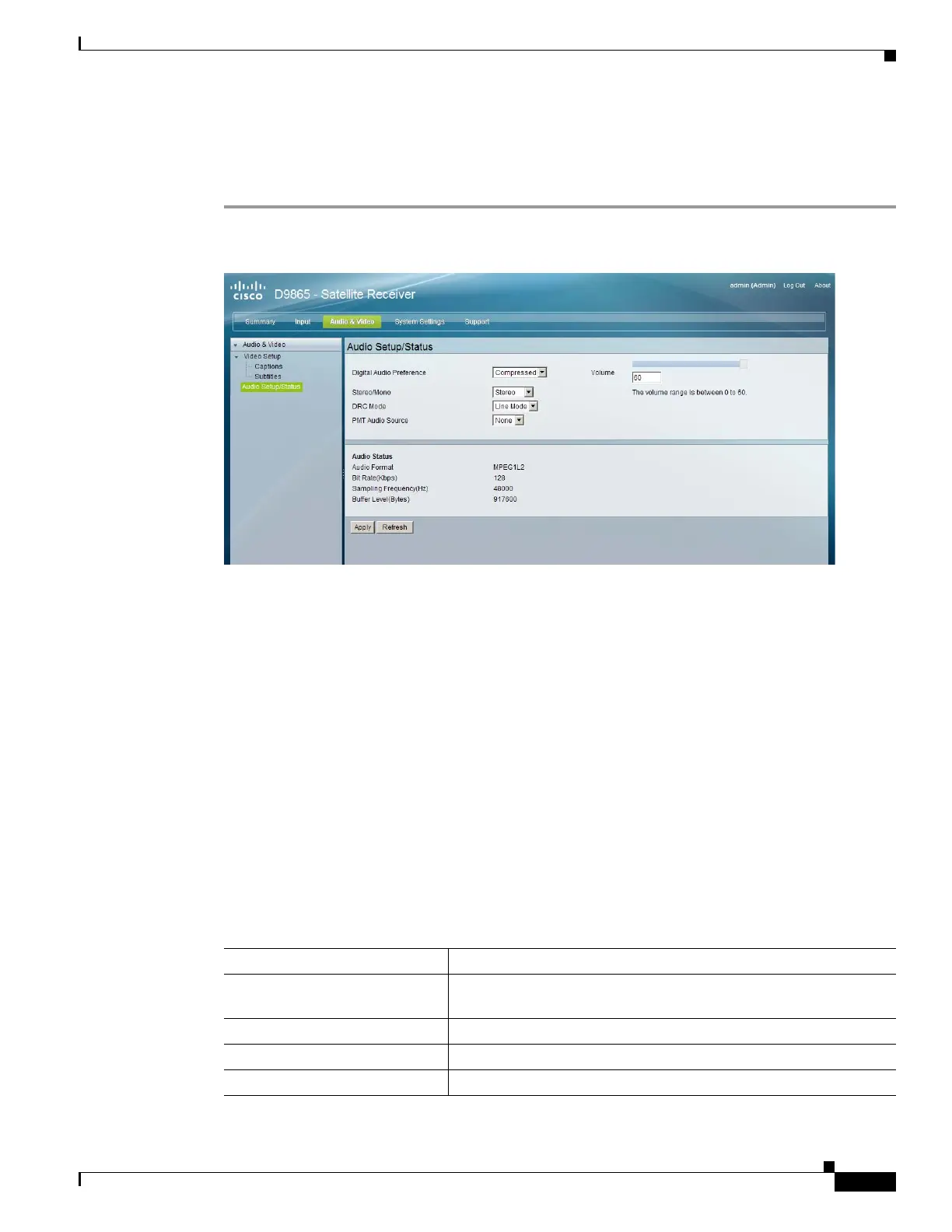

Step 1 From the user interface of the D9865, choose Audio & Video > Audio Setup/Status. The Audio
Setup/Status page is displayed.
Step 2 Choose the compressed audio type from the Digital Audio Setting drop-down list (PCM, Dolby Digital,
Compressed). For more information on the effects of Dolby Audio Preference setting on audio outputs,
based on the type of audio being decoded, see Digital Audio Preference Settings, page 4-34.
Step 3 From the Stereo/Mono drop-down list, choose the audio mode, which configures how audio received on
the audio input is handled.
Choose Stereo (Left and right channels are output on L and R respectively), Mixed (Left and right
channels are combined and output on both L and R), L-Mono (Left channel is output on L and R), or
R-Mono (Right channel is output on L and R).
Step 4 From the DRC Mode drop-down list, choose RF Mode or Line Mode. RF Mode is normally used for
analog cable modulators, when limited dynamic range is desired. Line Mode is used when full dynamic
range is allowed.
Step 5 From the PMT Audio Source drop-down list, choose the PMT source for the audio channel (None or
AUD1 to AUD64).
Step 6 The Vo l u m e adjustment for the audio channel ranges from 0 to 60. You can enter a value or use the
provided slider to adjust the volume.
Step 7 The Audio Status area displays the following information:
Audio Status Description
Audio Format The received audio channel format (MPEG, Dolby Digital, AAC,
HEAAC or Dolby Digital Plus).
Bit Rate (Mbps) Audio bit rate of the received audio channel, in Mbps.
Sampling Frequency (Hz) The audio sampling frequency (32, 44.1, or 48 Hz).
Buffer Level (Bytes) The audio input buffer level, in bytes.
