Chapter 4 Setup and Monitoring via On-Screen Display
Setup Menu
Setting the Multicast IP Address
Viewing the Multicast IP Addresses
Proceed as follows to view the Multicast IP addresses:
From the Network Setup screen, select Multicast IP Setup and click OK.

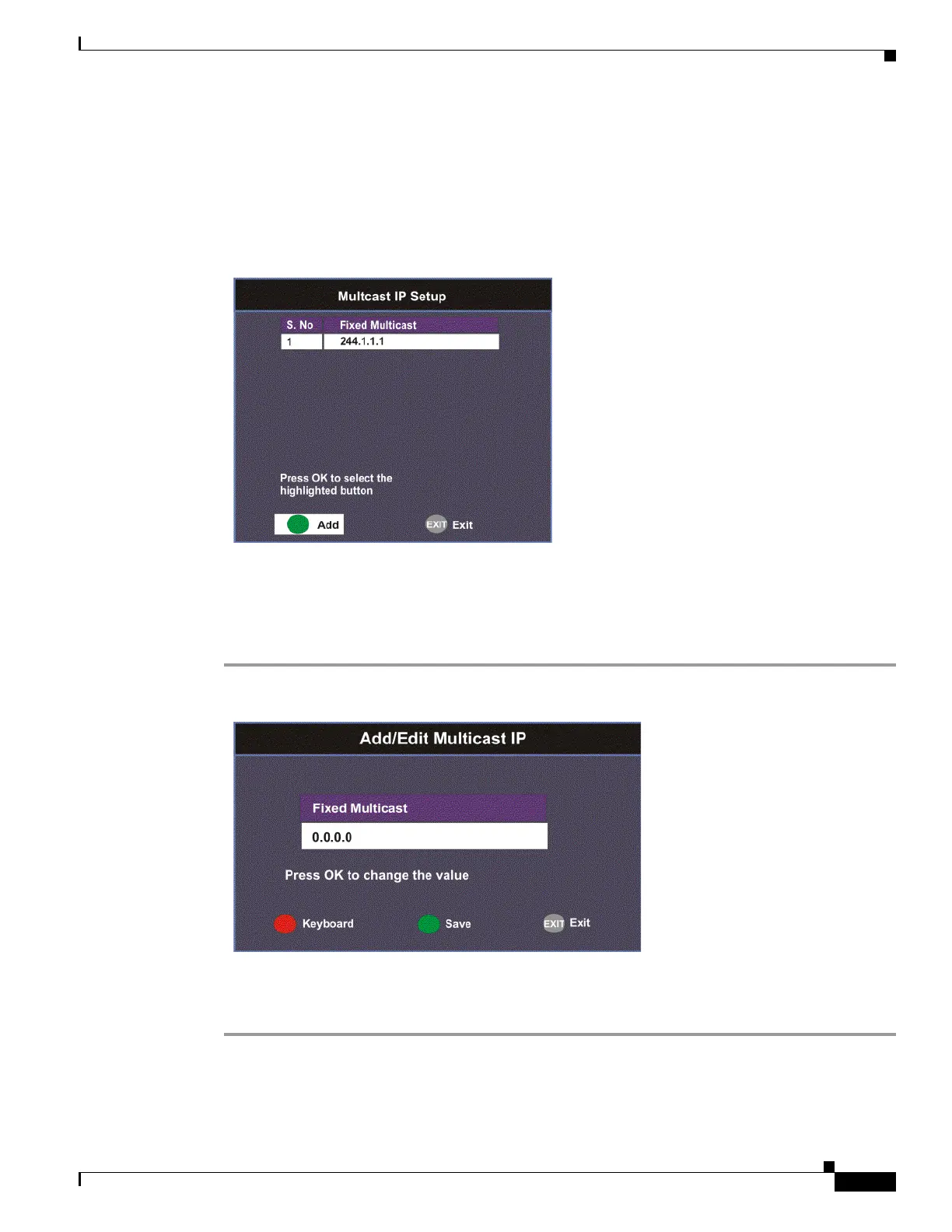

The Multicast IP Setup screen lists all the fixed multicast destination IP addresses.
Adding a Multicast IP Address
Proceed as follows to add a Multicast IP Address:
Step 1 From the Multicast IP Setup screen, press the green button (Add) to add a new address.
Step 2 Set the multicast destination IP address, in the range from 0 to 255 for each of the four fields in the
following format: ###.###.###.###. For example, 225.1.1.1.
Step 3 Press the green button (Save) to save your changes.
